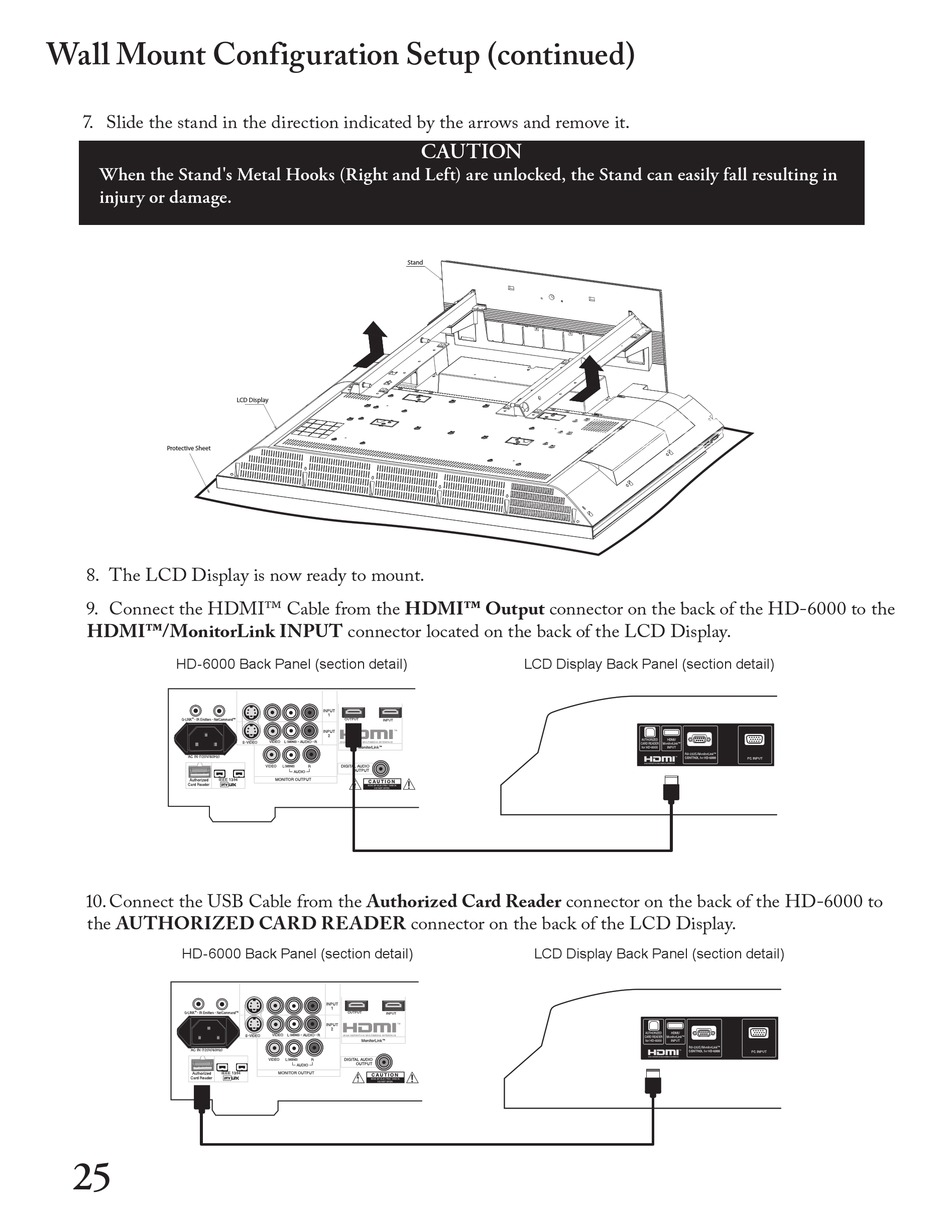

Wall Mount Configuration Setup (continued)
7. Slide the stand in the direction indicated by the arrows and remove it.
When the Stand's Metal Hooks (Right and Left) are unlocked, the Stand can easily fall resulting in
injury or damage.
���������� �����
8. The LCD Display is now ready to mount.
9. Connect the HDMI™ Cable from the HDMI™ Output connector on the back of the HD-6000 to the
HDMI™/MonitorLink INPUT connector located on the back of the LCD Display.
HD-6000 Back Panel (section detail)
10. Connect the USB Cable from the Authorized Card Reader connector on the back of the HD-6000 to
the AUTHORIZED CARD READER connector on the back of the LCD Display.
HD-6000 Back Panel (section detail)
25
�����
��� �������
CAUTION
LCD Display Back Panel (section detail)
LCD Display Back Panel (section detail)
