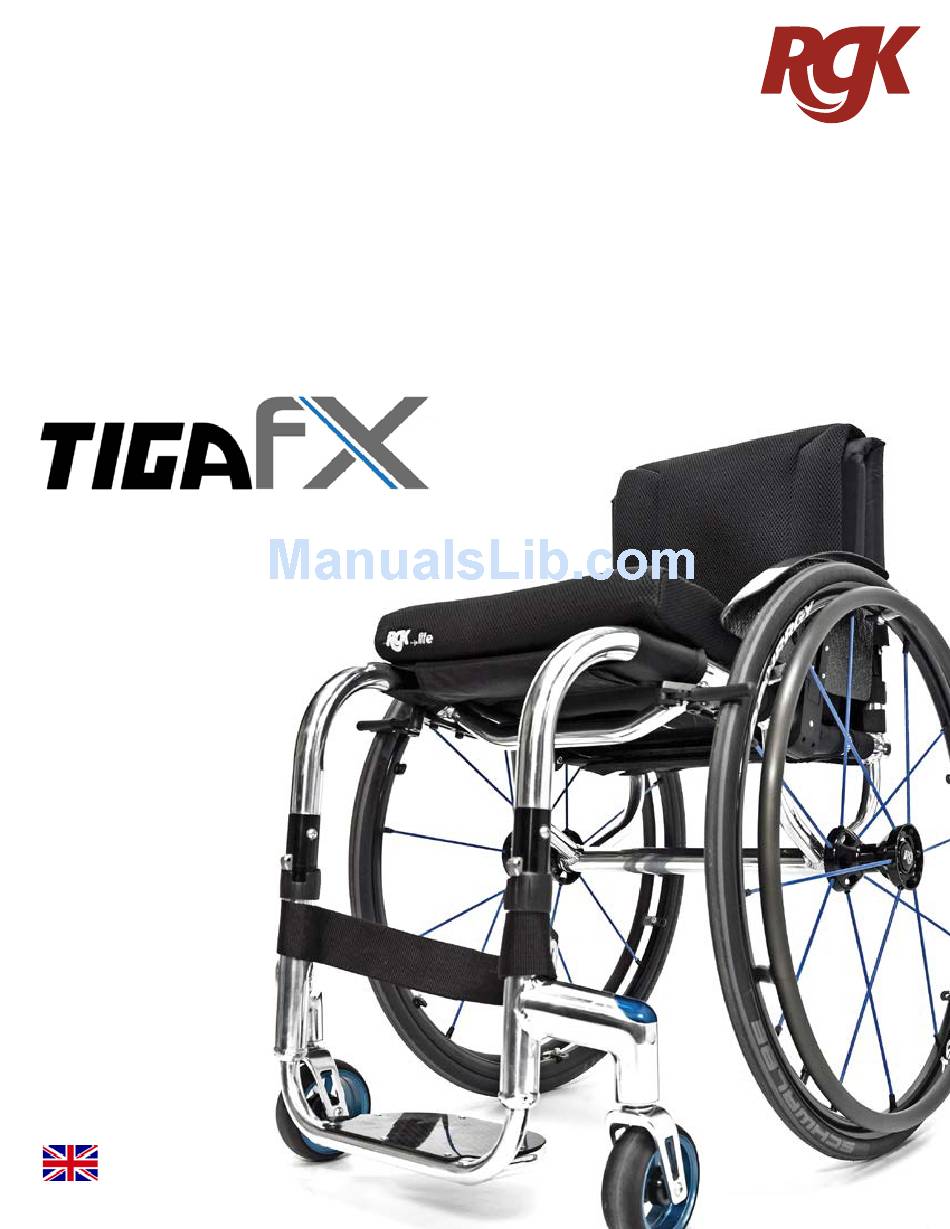

User Manual TIGA FX MANUAL WHEELCHAIR 14 - 2015 ssUE...
Page 2
We hope the product and service you have received has met your expectations. Please take time to read the instructions contained within, to familiarise yourself with your new RGK chair and to ensure you get maximum performance and longevity from it. Russel Simms,...
User Manual | Contents Contents User Manual Contents Procedure 5 Special Notes Replacing Hand Rims; Tyres & Inner Tubes Safety Summary Procedure 6 Product Description Adjusting and Replacing The Camber Bar Production Identification Procedure 7 Handling Of Wheelchairs Replacing Front Fork Assembly &...
The expected life of your RGK wheelchair is 5 years of normal use by a single user. The expected life of NOTE: your wheelchair is above all dependent on the user’s General advice or best practice disability and the maintenance of the wheelchair.
Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. RGK recognises and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter. Techniques in this manual are a starting point for the new wheelchair user and assistant with “safety”...
Page 6
Safety Summary Weight Training WARNING RGK DOES NOT recommend the use of its wheelchairs The position of the footrest, camber tube, height, as a weight training apparatus. RGK products have NOT as well as the tautness of the back upholstery are been designed or tested as a seat for any kind of weight directly related to the chairs stability.
Directive 93/42/EEC. been reduced or removed by a disability or chronic illness. The TIGA fx is hand built from aerospace grade By definition all wheelchairs are marketed as a medical aluminium. Two frame design options are available, device where a “medical device”* means an instrument,...
Page 8
User Manual | Product Description RGK TIGA FX Manual Propelled Wheelchair Backrest Camber Bar Brakes Frame Rear Wheel Under Seat Brace Bar Front Castor Cushion & Cover Front Castor Forks Sideguard Footplate Q-Lock release lever Footplate cover User Manual Issue No: 14 | 2015...
Page 9
Please provide the following information whenever you have to order replacement parts. Serial Number Name Dealer RGK Wheelchairs Ltd TIGA FX FXA001 1/2013 Unit 8 b/c Ring Rd, Zone 2 00 44 (1) 543 67 00 77 Burntwood Ind Est info@rgklife.com...
User Manual | Handling of Wheelchairs Safety Handling of your Wheelchair Tilting WARNING When tilting the wheelchair, an assistant should A note to wheelchair assistants grasp the back of the chair on a non-removable DO NOT attempt to lift the wheelchair by any (non-detachable) part.
Page 11
WARNING Extreme caution is advised when it is necessary to move an occupied wheelchair up or down the stairs. RGK recommends using two assistants and making thorough preparations. Make sure to use ONLY secure, non-detachable parts for hand-hold supports. User Manual...
User Manual | Handling of Wheelchairs DANGER Reaching, Leaning and Bending – Forward DO NOT use an escalator to move a wheelchair between floors as this could When reaching for any objects either in front, to cause serious personal injury or property the side or behind your wheelchair make sure that damage.
Page 13
User Manual | Handling of Wheelchairs Transferring to and from other seats Fig 10 WARNING RGK does NOT recommend that your wheelchair be transported up or down stairways with you in WARNING DO NOT attempt to lift the wheelchair by any Castors pointing forward removable (detachable) parts.
Page 14
See Fig 13. Fig 12 Fig 13 A = Rearward / Lengthen B = Forward / Shorten Never try to climb or descend a slope diagonally. Manoeuvring your RGK wheelchair See figure 14. Fig 13 Fig 14 WARNING...
User Manual | Safety Inspection Checklist Safety Inspection Checklist NOTE: Regular cleaning will reveal loose or worn parts and enhance the smooth operation or your wheelchair. To operate properly and safely, your wheelchair must be cared for just like any other vehicle. Routine maintenance will extend the life and efficiency of your wheelchair.
User Manual | Troubleshooting Guide Mechanical Troubleshooting Guide Mechanical Solutions Check tyres for correct and equal pressure Check for loose castor stem nuts Check all fixtures are secure and tight. Check spokes and nipples for tension Check that both castors contact the ground at the same time WARNING After making adjustments, always make sure that parts are properly tightened BEFORE using...
User Manual | Troubleshooting Guide Mechanical Maintenance Suggested Maintenance Procedures 1. Before using your RGK Wheelchair, make sure all 7. Periodically check handrims to ensure they are nuts and bolts are tight. Check all parts for damage secured to the rear wheels. Refer to handrim or wear and replace.
To adjust tension, pull centre pad up from the rear (side adjusting either the Velcro straps or Velcro securing with RGK logo) Re-position side wings to increase/ wings located under the centre pad. decrease tension and securely re-fit centre pad. See Fig...
User Manual | Procedure 2 Procedure 2 This Procedure includes the following: Replacing the Seat Upholstery Seat Upholstery Replacement Fig 17 1. Remove the seat cushion and back upholstery tail from the seat sling. See Fig 17. Side Securing Straps 2.
Pushing both Pull on the rear wheels to make sure the detent pin axle and wheel towards your wheelchair / RGK cap of the quick release axle are fully released before operating the wheelchair. Fig 19 WARNING Any adjustments to your quick release pins –...
When attaching the rear wheels, always check that they are securely mounted. Pull on the rear wheels to make sure the detent pin / RGK cap of the quick release axle are fully released before operating the wheelchair.
Spider or X-Core WARNING Wheels. DO NOT inflate tyre until it is completely assembled. WARNING Make sure the detent/RGK button of the quick release axle is fully released BEFORE operating the wheelchair. User Manual Issue No: 14 | 2015...
User Manual | Procedure 6 Procedure 6 This procedure includes the following: Adjusting or Replacing your camber bar Adjusting / replacing the camber bar WARNING This procedure applies to two different camber bar Tyre MUST be deflated before any disassembly types, both requiring a 5mm allen key.
Bearings must be fitted by an authorised dealer. Failure to do so will result in invalid warranty on the parts. CAUTION: RGK DO NOT recommend replacing the front castor forks or castor wheels with a different size other than what was originally supplied on the chair.
User Manual | Procedure 8 Procedure 8 This procedure includes the following: Adjusting / Replacing Wheel Locks NOTE: Fig 23 Before adjusting or replacing any style of wheel lock ensure that the tyres are inflated to the recommended pressure as indicated on the tyre. Wheel Locks - Adjustment / Replacement 1.
User Manual | Procedure 9 Procedure 9 This Procedure includes the following: Adjusting the footrest height / angle, and replacing the footrest. Adjusting / replacing the footrest Angle adjusting the footrest platform 1. Loosen the two allen head screws that secure the 1.
User Manual | Procedure 10 Procedure 10 This Procedure includes the following: Folding & unfolding the backrest, Folding & unfolding the front tube section. Fig 27 WARNING Your folding back and folding front tube section MUST be locked securely in place before using your wheelchair.
User Manual | Procedure 11 Procedure 11 This Procedure includes the following: Height adjustable pushing handles, Fold-down push handles. Flip-down push handles WARNING To fold down your pushing handles, depress the button DO NOT attempt to lift the wheelchair by any (2) when required again, simply lift back into position removable (detachable) parts.
2. Adjust the height of the anti-tipper wheels to between 25mm and 50mm of the ground. 3. Repeat steps 1 – 2 for the opposite anti-tipper. WARNING RGK strongly recommends ordering the anti-tips as an additional safeguard for the wheelchair user. Fig 35 NOTE: Anti-tippers MUST be fully engaged.
This Procedure includes the following: Folding sideguards Folding Sideguards (All Materials) During the folding down process of the TIGA fx, the sideguards can be pushed down to fold flat against the chair seat once the cushion has been removed. See Fig. 36...
User Manual | Procedure 14 Procedure 14 This procedure include the following: Strapping: Location of the strapping WARNING The strap can positioned either, under the It is not designed for use as a safety device to wheelchair and passing up between the side guards withstanding high stress loads such as auto safety (if fitted) and fastened across the lap or pelvis.
Technical Data From Please note Overall Width 250 cm 460 cm RGK Wheelchairs Ltd are bespoke and individually made for you, therefore your Overall Seat Height 300 cm 600 cm wheelchair may fall below or over the above mentioned sizes...
24 months If within the stated warranty period and such other legal rights. RGK warrants the main frame to product shall be proven to be defective, such • the use of additional 3rd party equipment ie Free be free from defects in materials and workmanship product shall be repaired or replaced at RGK’s option...
Page 34
Customer Service: 1.905.660.2459 / 1.800.263.3390 or visit www.SunriseMedical.ca...
