Summary of Contents for RGK club sport
-

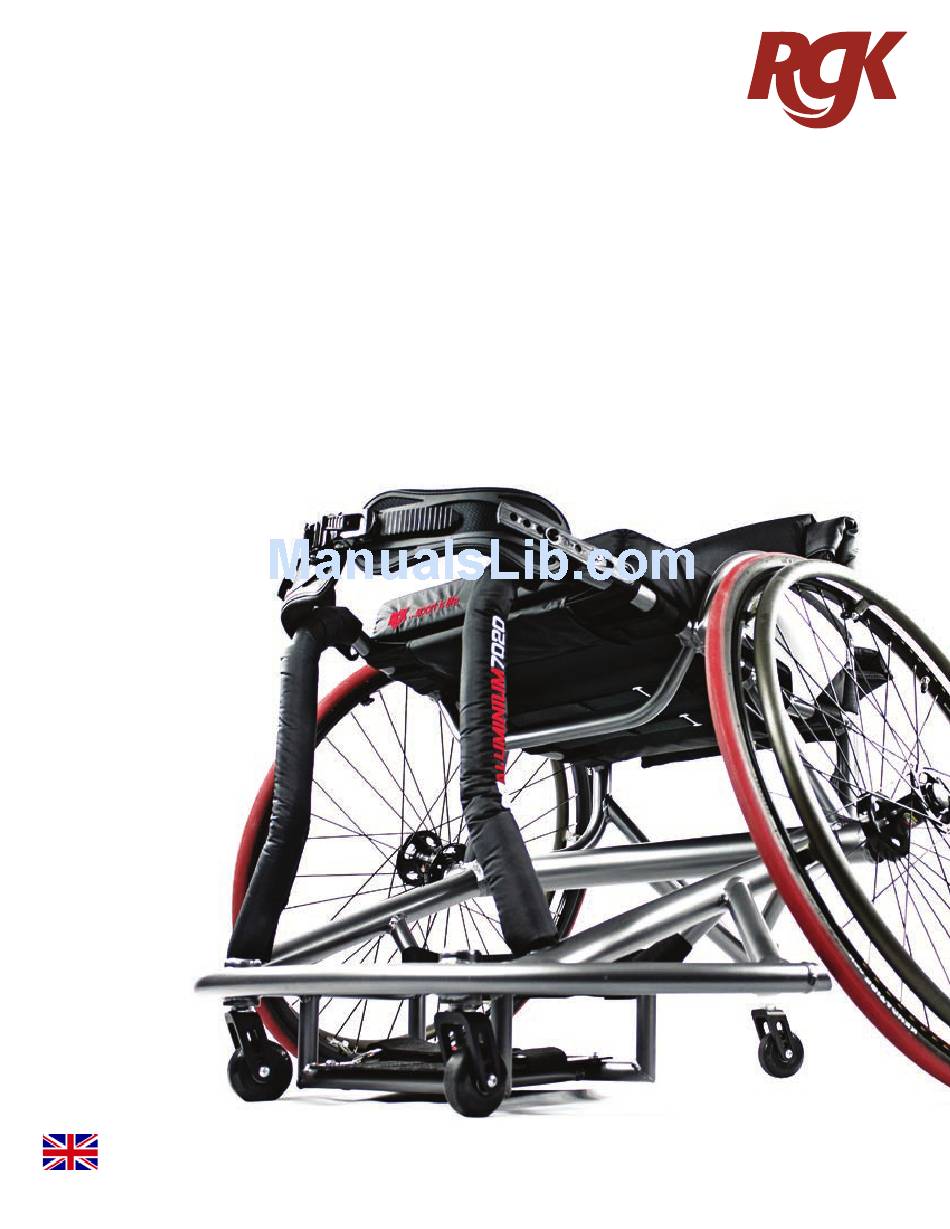

Page 1: User Manual
User Manual for all sport models Club Sport Grandslam Elite User Manual Issue No: 14 | 2015 SPORTS WHEELCHAIR MANUAL 14 - 2015 SSUE... - Page 2 We hope the product and service you have received has met your expectations. Please take time to read the instructions contained within, to familiarise yourself with your new RGK chair and to ensure you get maximum performance and longevity from it. Russel Simms,...
-
Page 3: Table Of Contents
User Manual | Contents Contents User Manual Contents Special Notes Safety Summary Safety Inspection Checklist Troubleshooting Guide Mechanical Maintenance Procedure 1 Adjusting/Replacing Back Upholstery Procedure 2 Seat Cushion/Seat Upholstery Replacement Procedure 3 Adjusting the Quick-Release Axle Procedure 4 Replacing the Hand Rim; Repairing/Replacing Rear Wheel, Tyre/Tube Procedure 5 Adjusting and Replacing The Camber Bar... -
Page 4: User Manual Contents
The expected life of your RGK wheelchair is 2 years of normal use by a single user. The expected life of NOTE: your wheelchair is above all dependent on the user’s General advice or best practice disability and the maintenance of the wheelchair. -
Page 5: Safety Summary
Safety Summary Weight Training WARNING RGK DOES NOT recommend the use of its wheelchairs The position of the footrest, camber tube, height, as a weight training apparatus. RGK products have NOT as well as the tautness of the back upholstery are been designed or tested as a seat for any kind of weight directly related to the chairs stability. - Page 6 See Fig 1. Fig 10 Fig 1 A = Rearward / Lengthen B = Forward / Shorten Manoeuvring your RGK wheelchair WARNING BEFORE attempting to manoeuvre your new wheelchair it is important to practice and master these techniques until you are comfortable and competent.
-
Page 7: Safety Inspection Checklist
User Manual | Safety Inspection Checklist Safety Inspection Checklist NOTE: Regular cleaning will reveal loose or worn parts and enhance the smooth operation or your wheelchair. To operate properly and safely, your wheelchair must be cared for just like any other vehicle. Routine maintenance will extend the life and efficiency of your wheelchair. -
Page 8: Troubleshooting Guide Mechanical
User Manual | Troubleshooting Guide Mechanical Troubleshooting Guide Mechanical Solutions Check tyres for correct and equal pressure Check for loose castor stem nuts Check all fixtures are secure and tight. Check spokes and nipples for tension Check that both castors contact the ground at the same time WARNING After making adjustments, always make sure that parts are properly tightened BEFORE using... -
Page 9: Maintenance
User Manual | Troubleshooting Guide Mechanical Maintenance Suggested Maintenance Procedures 1. Before using your RGK Wheelchair, make sure all 7. Periodically check handrims to ensure they are nuts and bolts are tight. Check all parts for damage secured to the rear wheels. Refer to handrim or wear and replace. -
Page 10: Procedure 1
To adjust tension, pull centre pad up from the rear (side adjusting either the Velcro straps or Velcro securing with RGK logo) Re-position side wings to increase/ wings located under the centre pad. decrease tension and securely re-fit centre pad. See Fig... -
Page 11: Procedure 2
User Manual | Procedure 2 Procedure 2 This Procedure includes the following: Replacing the Seat Cushion; Replacing the Seat Upholstery Fig 4 Seat cushion (foam insert) replacement Lift up and remove the existing seat cushion from the seat upholstery. See Fig 4. Open the seat cushion and remove the foam insert. -
Page 12: Procedure 3
When attaching the rear wheels, always check that they are securely mounted. Pull on the rear wheels to make sure the detent pin / RGK cap of the quick release axle are fully released before operating the wheelchair. -
Page 13: Procedure 4
Spider or X-Core WARNING Wheels. DO NOT inflate tyre until it is completely assembled. WARNING Make sure the detent/RGK button of the quick release axle is fully released BEFORE operating the wheelchair. User Manual Issue No: 14 | 2015... -
Page 14: Procedure 5
User Manual | Procedure 6 Procedure 5 This procedure includes the following: Adjusting or Replacing your camber bar Adjusting / replacing the camber bar WARNING This procedure applies to two different camber bar Tyre MUST be deflated before any disassembly types, both requiring a 5mm allen key procedures are performed. -
Page 15: Procedure 6
Bearings must be fitted by an authorised dealer. Failure to do so will result in invalid warranty on the parts. CAUTION: RGK DO NOT recommend replacing the front castor forks or castor wheels with a different size other than what was originally supplied on the chair. -
Page 16: Procedure 7
User Manual | Procedure 9 Procedure 7 This Procedure includes the following: Adjusting the footrest height / angle, and replacing the footrest. Adjusting / replacing the footrest Angle adjusting the footrest platform 1. Loosen the four allen head screws that secure the 1. -
Page 17: Procedure 8
Securely tighten the allen head screws that secure the anti-tip wheels to the anti-tip bars. WARNING RGK strongly recommends ordering the anti-tips as an additional safeguard for the wheelchair user. NOTE: If the rear wheel size is changed or the position of... -
Page 18: Technical Data
Technical Data From Please note Overall Width 250 cm 500 cm RGK Wheelchairs Ltd are bespoke and individually made for you, therefore your Overall Seat Height 300 cm 600 cm wheelchair may fall below or over the above mentioned sizes... -
Page 19: Warranty
24 months If within the stated warranty period and such other legal rights. RGK warrants the main frame to product shall be proven to be defective, such • the use of additional 3rd party equipment ie Free be free from defects in materials and workmanship product shall be repaired or replaced at RGK’s option... - Page 20 Customer Service: 1.905.660.2459 / 1.800.263.3390 or visit www.SunriseMedical.ca...
