Installation Guide & Owner's Manual
From
City Water
To
PreFilter
To
Drain
From
Pump
To
Storage
Tank
From
System
Injection
Port
To
Tank Line
To
Autoclave
Wand
From
D/I #2
To
Bottle
Faucet
From
PostFilter
Specialized water filtration for autoclaves, dental bottles,
ultrasonic cleaners & instrument washers
Model V3000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VistaPure V3000
Summary of Contents for VistaPure V3000

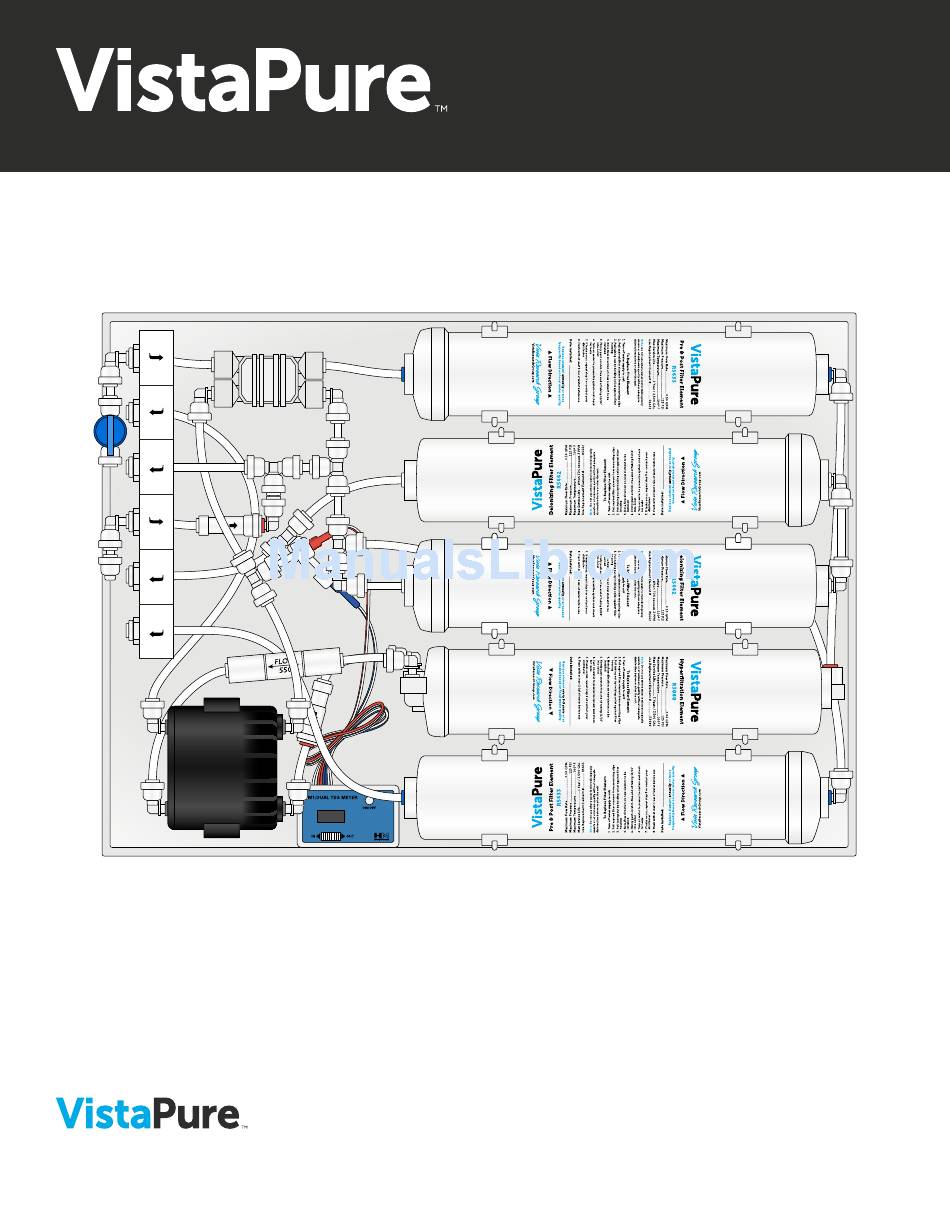

- Page 1 Installation Guide & Owner’s Manual From City Water PreFilter Drain From Pump Storage Tank From System Injection Port Tank Line Autoclave Wand From D/I #2 Bottle Faucet From PostFilter Model V3000 Specialized water filtration for autoclaves, dental bottles, ultrasonic cleaners & instrument washers...
-
Page 2: Table Of Contents
Changing Filter Elements �������������������������������������������������������������������������������������������������������������������������������������������10 VistaPure Wand Installation & Use Instructions �����������������������������������������������������������������������������������������������������10 VistaPure Limited Warranty ���������������������������������������������������������������������������������������������������������������������������������������� 11 VistaPure System Information �����������������������������������������������������������������������������������������������������������������������������������12 Distribution VistaPure systems are sold through dental and medical dealers throughout North America by: SciCan Ltd. Pelton & Crane SciCan Inc. SciCan�com Pelton�net... -
Page 3: Introduction
The VistaPure system is designed to be built in to sterilization center cabinetry, and can also be installed in an equipment room� The system provides up to 4�25 gallons of treated water in its pressurized storage tank (based on city water pressure), and automatically replenishes this supply as water is drawn from storage�... -
Page 4: Preparation
Preparation Every VistaPure comes in two (2) cartons� Box 1 of 2 contains the system� Box 2 of 2 contains all other items, including the Installation Guide & Owner’s Manual, warranty registration card, water storage tank, dispensing wand, faucet, drain fitting, TDS meters, colored tubing and all other accessories� Make sure all items needed for installation are present and undamaged�... -
Page 5: System Overview
Water Storage Tank Flow Restrictor Injection Port to Tank Line VistaPure Wand Check Valve To Autoclave Wand from DI #2 VistaPure Chrome Faucet To Bottle Faucet from Post Filter Dual TDS Meter © 2000-2015 Vista Research Group, LLC. All rights reserved. -
Page 6: Installation
• If the VistaPure system is to be installed remote to the autoclave(s) and/or in a cabinet, fish the solid blue tubing behind cabinetry to the autoclave center� Join the solid blue tubing and the coiled blue tubing with the white 1/4”... - Page 7 (S9147) using branch tailpiece� Order separately� NOTE: Local codes vary greatly, so be sure to verify the preferred method prior to installation� Every VistaPure has a pressurized drain discharge and multiple check valves in the system to prevent backflow from drain connections�...
-
Page 8: Monitoring Tds
150-350 TDS, although it varies greatly� The federal standard for municipal water systems is a maximum of 500 ppm TDS� Please do not use VistaPure with private water wells since TDS can be very high and contain high levels of contamination�... -
Page 9: Filter Performance Record
Filter Performance Record “A” “B” “C” “D” Water at Water at City Water to System After Hyperfiltration % TDS Remaining TDS after D/I Autoclave Wand Chrome Faucet Date (Use Handheld (Use Mounted (Divide Column B (Use Mounted (Use Handheld (Use Handheld TDS Meter) Meter “IN”) by Column A) -
Page 10: Changing Filter Elements
The precharge pressure should be set at 7.5 psi for most applications� Add air as needed using a tire pump or compressor� To lower air pressure if too high, depress the stem in the air valve and re-check� VistaPure Wand Installation & Use Instructions INSTALLATION Each wand includes an integrated shut-off valve, a friction clip holder, two 1/2”... -
Page 11: Vistapure Limited Warranty
(VRG) will repair or replace to the original user any thereof without being obliged to provide such change portion of a VistaPure which proves defective due or improvement of units sold and/or shipped prior to to defective materials or workmanship of VRG�... -
Page 12: Vistapure System Information
VistaPure System Information Thank you for purchasing the VistaPure system for your practice! The following chart is for necessary information for future reference� Please fill this out completely and keep this manual in a convenient place for ready access and reference�...
