Installation Guide & Owner's Manual
From
City Water
To
Drain
To/From
Storage
Tank
Injection
Port
To
Wand
To
Faucet
VistaResearchGroup.com
P.O. Box 321, Ashland, Ohio 44805-0321
Specialized water filtration for autoclaves, dental bottles,
ultrasonic cleaners & instrument washers
R3251
Filter Installation Date
R3252
Filter Installation Date
R3253
Filter Installation Date
R3254
Filter Installation Date
R3255
Filter Installation Date
Model V3000
Replace this filter annually or as needed
based on local water quality.
VistaResearchGroup.com
Replace this filter and R3253 when
system-mounted TDS meter "OUT"
displays number ≥ 4 ppm.
VistaResearchGroup.com
Replace this filter and R3252 when
system-mounted TDS meter "OUT"
displays number ≥ 4 ppm.
VistaResearchGroup.com
Replace whenever system-mounted
TDS meter "IN" displays number > 10%
of source water TDS.
VistaResearchGroup.com
Replace this filter annually or as needed
based on local water quality.
VistaResearchGroup.com
106101
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VistaPure V3000
Summary of Contents for VistaPure V3000
- Page 1 Filter Installation Date VistaResearchGroup.com P.O. Box 321, Ashland, Ohio 44805-0321 R3255 Replace this filter annually or as needed based on local water quality. VistaResearchGroup.com Filter Installation Date Model V3000 Specialized water filtration for autoclaves, dental bottles, ultrasonic cleaners & instrument washers...
-
Page 2: Table Of Contents
Sanitizing the Tank and Faucet ����������������������������������������������������������������������������������������������������������������������������13 Filter Performance Record �����������������������������������������������������������������������������������������������������������������������������������14 VistaPure Limited Warranty ����������������������������������������������������������������������������������������������������������������������������������������15 VistaPure System Information �����������������������������������������������������������������������������������������������������������������������������������16 Distribution VistaPure systems are sold through dental and medical dealers throughout North America by: Pelton & Crane SciCan Inc. SciCan Ltd. Pelton�net SciCan�com... -
Page 3: Introduction
The VistaPure system is designed to be built in to sterilization center cabinetry, and can also be installed in an equipment room� The system provides up to 4�25 gallons of treated water in its pressurized storage tank (based on city water pressure), and automatically replenishes this supply as water is drawn from storage�... -
Page 4: Preparation
Preparation Every VistaPure comes in two (2) cartons� Box 1 of 2 contains the system� Box 2 of 2 contains all other items, including the Installation Guide & Owner’s Manual, warranty registration card, water storage tank, dispensing wand, faucet, drain fitting, TDS meters, colored tubing and all other accessories� Make sure all items needed for installation are present and undamaged�... -
Page 5: System Overview

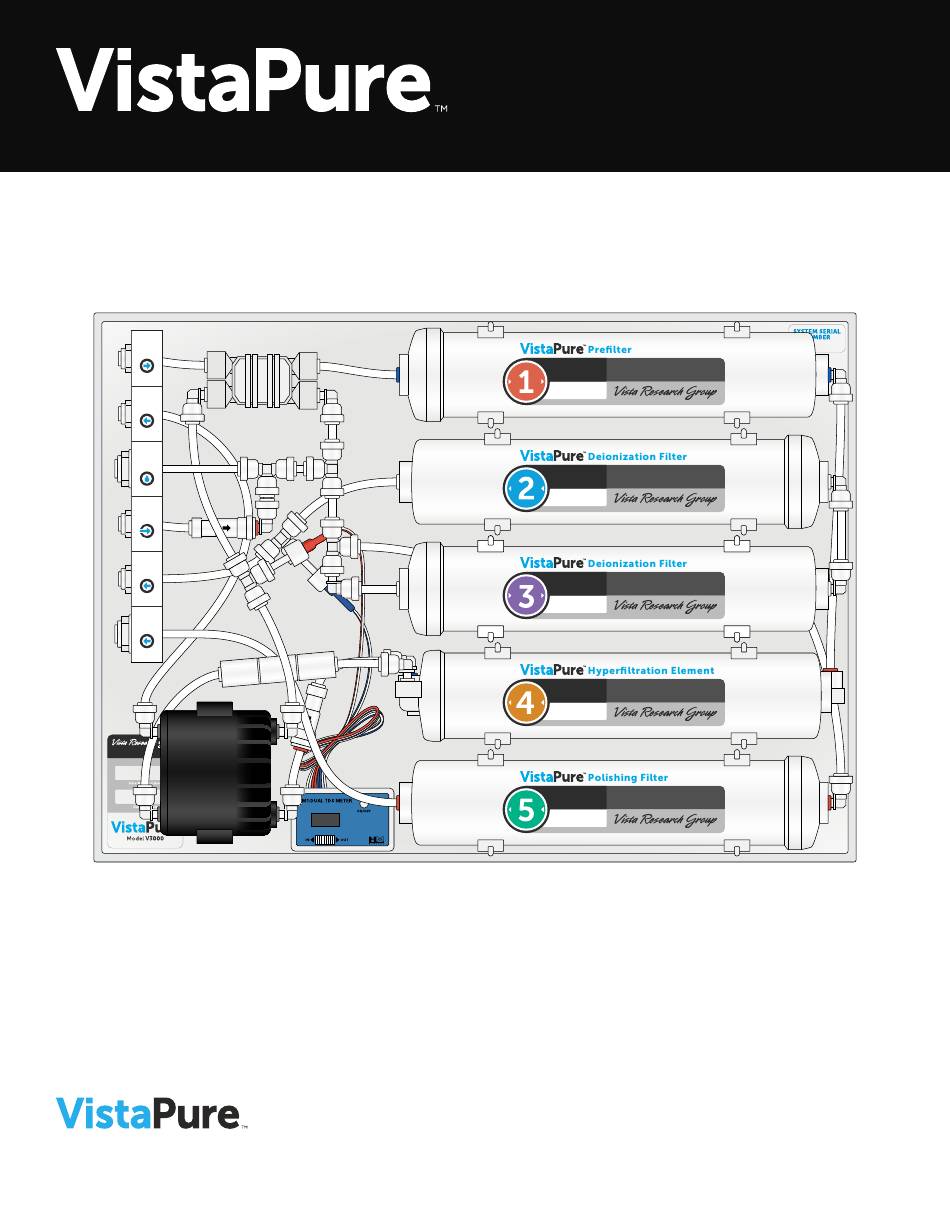

To and from Storage Tank Injection Port Assembly Tank Air Valve Injection Port to Tank Line Flow Restrictor VistaPure Wand To Autoclave Wand Permeate Pump VistaPure Chrome Faucet To Bottle Faucet Dual TDS Meter © 2000-2018 Vista Research Group, LLC. All rights reserved. -
Page 6: Installation
Where can it be installed? The VistaPure system and included tank are designed to fit in a base cabinet, but can be installed anywhere there is a quality cold water supply and drain connection. The system board is designed for horizontal installation—typically on the right side of the inside of a base cabinet—and can be... - Page 7 (provided) in any unused port(s) of the DrainHub� NOTE: Local codes vary greatly, so be sure to verify the preferred method prior to installation. Every VistaPure has a pressurized drain discharge and multiple check valves in the system to prevent backflow from drain connections.
- Page 8 • If the VistaPure system is to be installed remote to the autoclave(s) and/or in a cabinet, fish the solid blue tubing behind cabinetry to the autoclave center� Join the solid blue tubing and the coiled blue tubing with the white 1/4”...
- Page 9 Position the water storage tank as near to the VistaPure system board as possible, at the same level� The system board and storage tank can be separated by up to 30 feet (9 meters), as long as they’re on the same level and there are no significant “dips” in the tank line tubing, which could create back pressure�...
-
Page 10: Monitoring Tds
Monitoring TDS Water should be running through the system when checking water quality using the system-mounted TDS meter. Simply run the VistaPure faucet for a few moments and the system will start to produce water and yield accurate results. Check TDS levels at least monthly and record the data in the chart on page 14. -
Page 11: Filter Life & Replacement Thresholds
Filter Life & Replacement Thresholds Prefilter (R3251): approximately one year (change at least annually)� Deionization Filters (R3252 & R3253): 4 months to 3 years, depending on volume of usage and quality of local water supply� Change BOTH deionization filters whenever the system-mounted TDS meter “OUT” (recorded in Column D above) displays a number equal to or greater than 4 parts per million (ppm)�... -
Page 12: Checking Tank Air Pressure
Checking Tank Air Pressure At least once per year and whenever filters are changed, check the air pressure of the system’s water storage tank� Things you’ll need: • Digital tire air pressure gauge (available for less than $10 at most auto supply retailers) Turn off the main water supply to the To add air to the tank, use a compressor or system�... -
Page 13: Sanitizing The Tank And Faucet
Sanitizing the Tank and Faucet At least once per year and whenever filters are changed, sanitize the VistaPure system. This process requires about one hour before the system is ready for use again� Things you’ll need: • One ounce (30 mL) of non-scented chlorine bleach •... -
Page 14: Filter Performance Record
Filter Performance Record “A” “B” “C” “D” “E” “F” City Water to System After Hyperfiltration % TDS Remaining TDS after D/I Water from Wand Water from Faucet Date (Use Handheld (Use Mounted (Divide Column B (Use Mounted (Use Handheld (Use Handheld TDS Meter) Meter “IN”) by Column A) -
Page 15: Vistapure Limited Warranty
(VRG) will repair or replace to the original user any thereof without being obliged to provide such change portion of a VistaPure which proves defective due or improvement of units sold and/or shipped prior to to defective materials or workmanship of VRG�... -
Page 16: Vistapure System Information
VistaPure System Information Thank you for purchasing the VistaPure system for your practice! The following chart is for necessary information for future reference� Please fill this out completely and keep this manual in a convenient place for ready access and reference�...
