Specifications 79

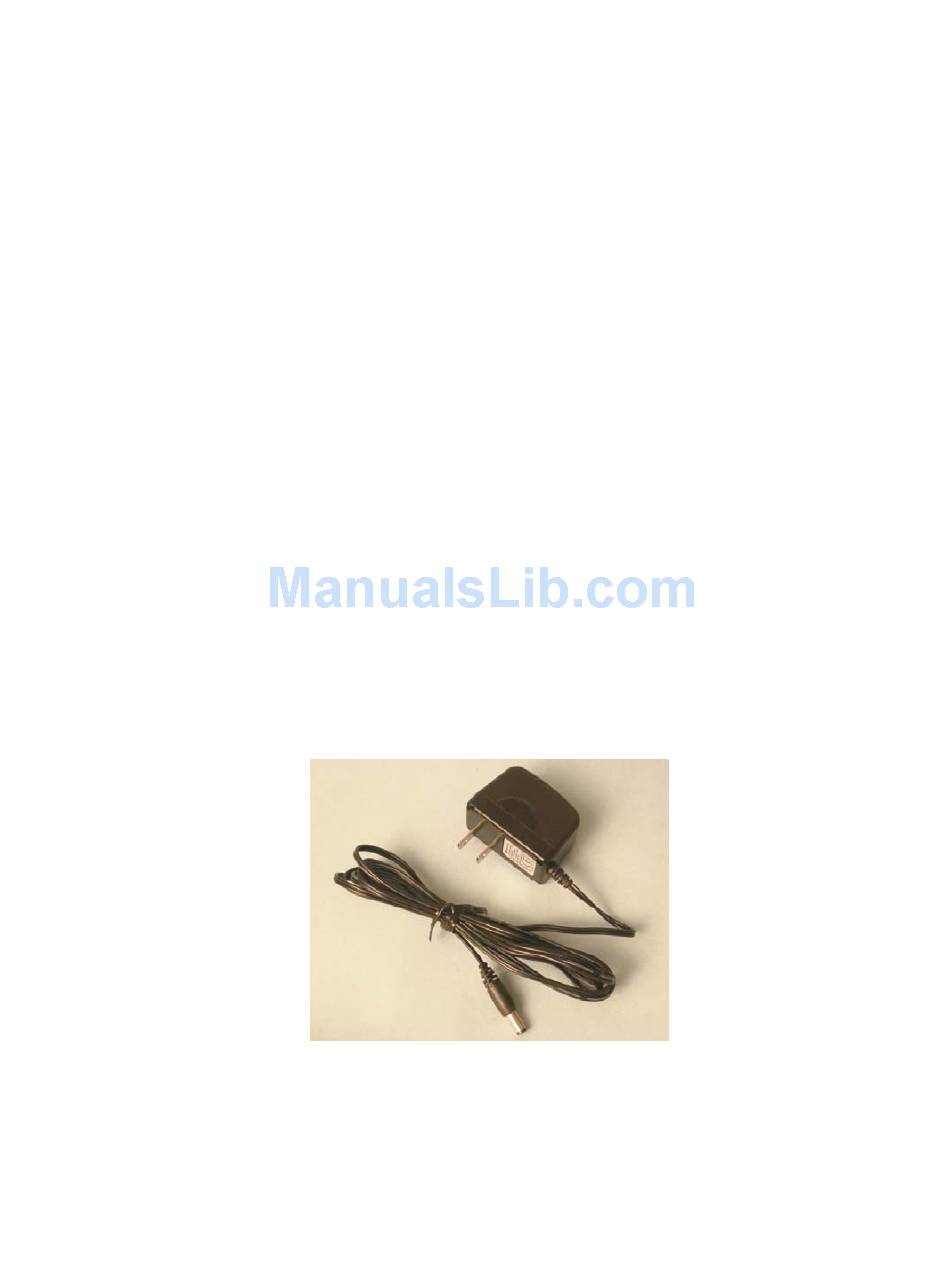

AC Power Adapter

Part no. AP0009400
For benchtop or continual use with available line power, use
the AP0009400, AC Power Adapter. It provides 6 Vdc at up
to 800 mA to the 928A.
INPUT VOLTAGE: 90 Vac to 264 Vac
INPUT CURRENT: < 0.5 Arms at 90 Vac Input
INPUT FREQUENCY: 47 to 63 Hz
OUTPUT VOLTAGE/CURRENT: +6 Vdc at 800 mA
EMI: FCC Part 15 Class B when tested with a resistive
load, both conducted and radiated.
MTBF: 50,000 hours or greater at 25 C
o
OPERATING TEMPERATURE: 0 to 70 C
o o
STORAGE TEMPERATURE: - 40 to +80 C
o o
HUMIDITY: 0 to 90% Relative Humidity
WEIGHT: 90 g MAX
