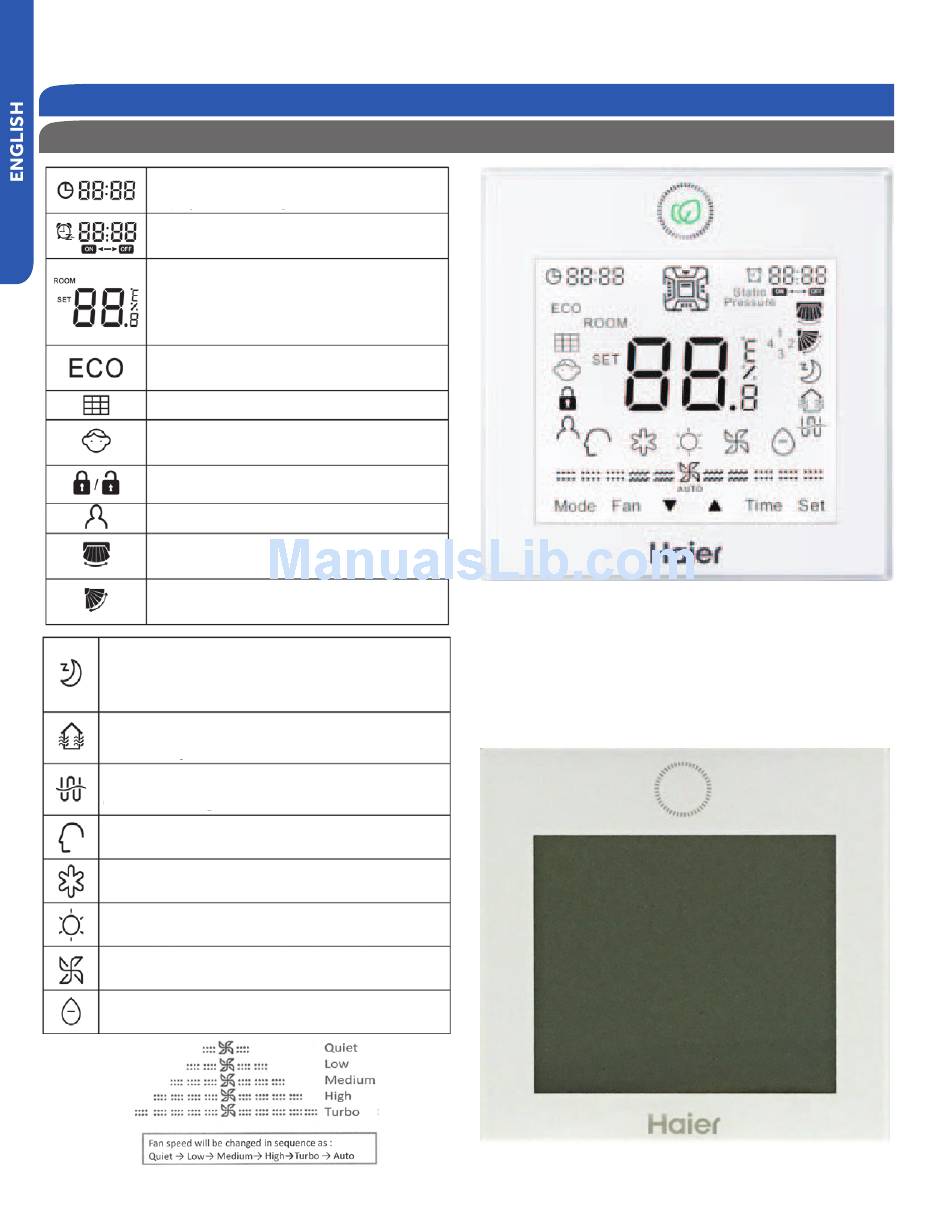

Wired Control Panel Functions; Features And Interface - Haier AD07SL2VH1 User Manual

Ductless split air conditioner wired controller


Wired Controller Yr-e17
Clock; Parameter setting/Inquiry; Malfunction
Timer ON/OFF; Sleep function; Parameter
setting/Inquiry; Malfunction display
ROOM/SET temp. and humidity display, each
step is 0.5°C (1°F). For example, if the temp is
25°C (77°F), it will display 25.°C (77°F). Humidity
display function is reserved.
Energy Saving function. This icon will be dis-
played only when energy saving function is set.
Filter Cleaning
Child Lock
Motion Sensing (Reserved)
Left/Right Swing. This icon is displayed only
when in swing function
Up/Down Swing. This icon is displayed only when
in swing function
Sleep function. This icon is displayed when setting the
sleep function. Remaining sleeping time is displayed in
the top right corner.
Heat Reclaim Ventilation. This icon is displayed when
setting the heat reclaim ventilation.
Electrical Heating. This icon is displayed when electrical
heating is set on DC wired control.
Intelligent Mode--automatic cycling.
Cooling Mode
Heating Mode
Fan Mode
Dry Mode
Page 2

WIreD ConTrol Panel fUnCTIons

features and Interface

User friendly:
Back light; Room temperature display
Clock; Timer; Sleep Function; Heat Reclaim
Ventilation; ECO; Filter Cleaning; Error Code display; Child
Lock; Parameter Inquiry; Unit NO. Setting; Static Pressure
Grade Inquiry; Temp. Compensation setting; Forced
