Dip switch

SW1-1
SW1-2
SW1-3
SW1-4
SW1-5
SW1-6
SW1-7
SW1-8
Page 4
InsTallaTIon
Wired Controller Wiring Instructions

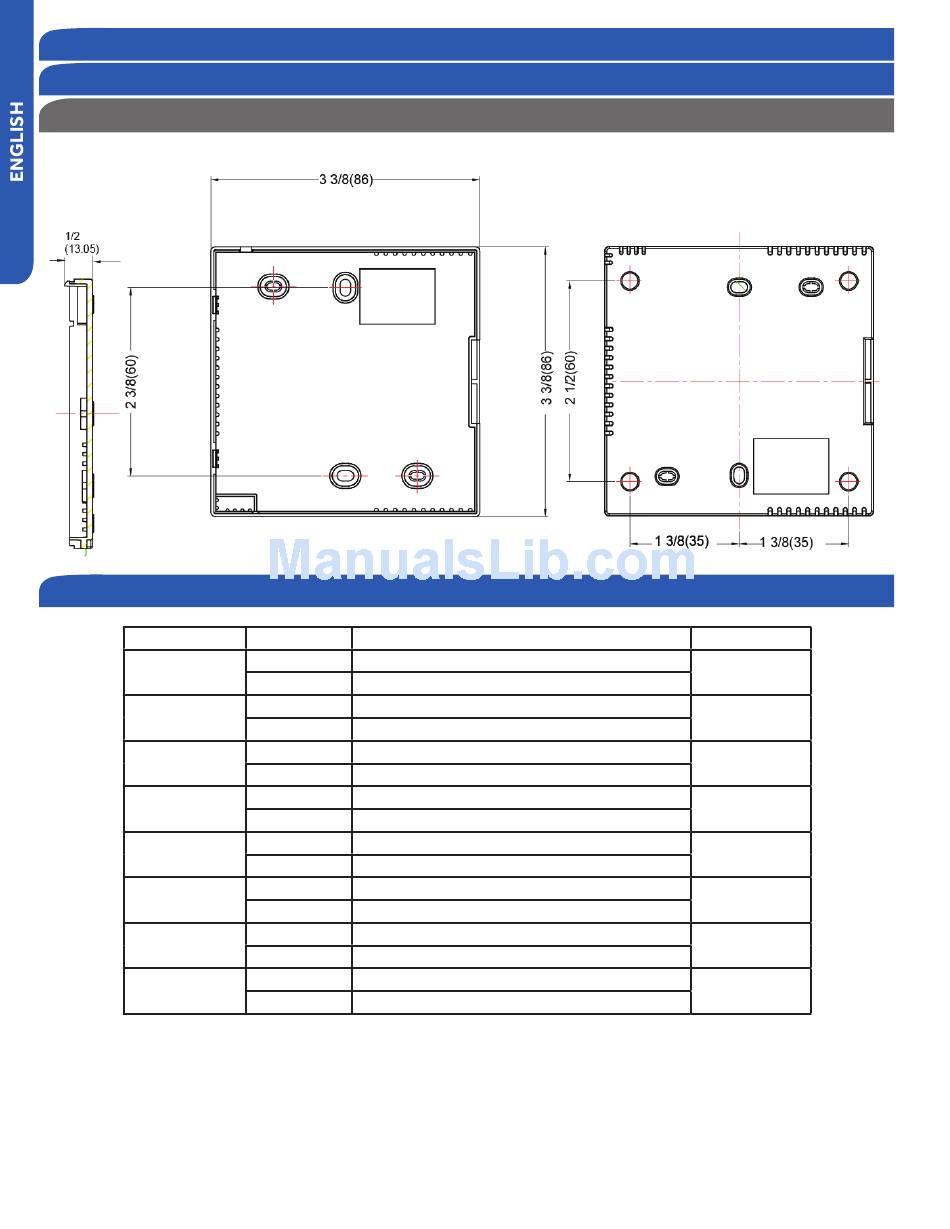

Dimensions
Unit: inch (mm)
Dip switch
on/off
ON
Set as the slave controller
OFF
Set as the master controller
ON
Ambient temp. display available
OFF
Ambient temp. display unavailable
ON
Display ambient temp. from PCB of indoor
OFF
Display ambient Temp. from wired controller
ON
Auto-restart invalid
OFF
Auto-restart valid
ON
Fahrenheit
OFF
Celsius
ON
Swing angle adjustment available
OFF
Swing angle adjustment unavailable
ON
Up/Down and Left/Right swing
OFF
Up/Down swing
ON
Fresh Air unit
OFF
General unit
WIRED CONTROLLER
function
Default setting
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
