Withings Home
HD camera with environmental sensors

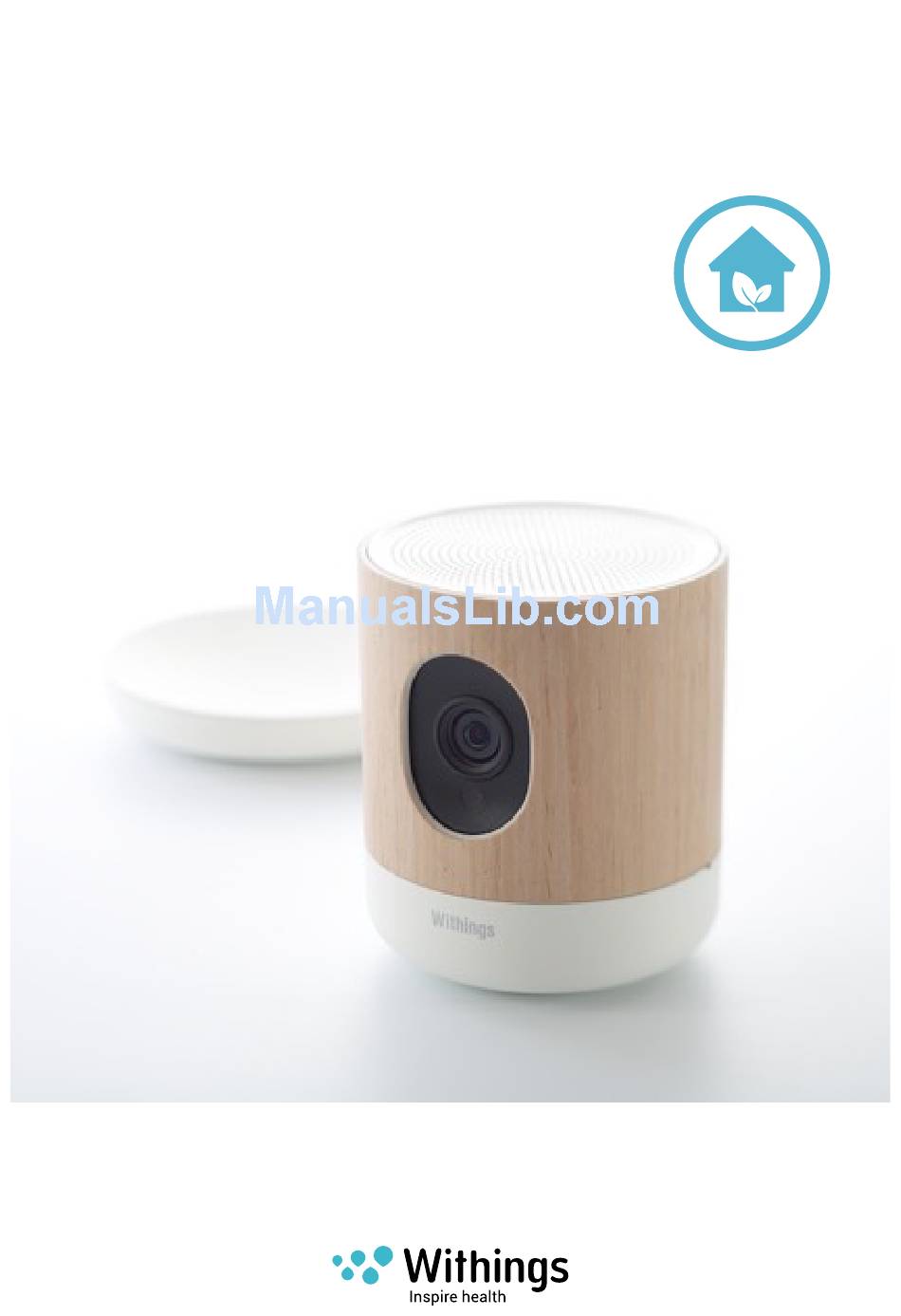

Installation and Operating Instructions
Withings Home
v1.0 | December 1st, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOME and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Withings HOME

Summary of Contents for Withings HOME

  • Page 1 Withings Home HD camera with environmental sensors Installation and Operating Instructions Withings Home v1.0 | December 1st, 2014...

  • Page 2: Safety Instructions

    Warning: Power cord may present a strangulation hazard. Keep out of reach of children. Warning: The Withings Home is not a carbon monoxide detector, and does not provide alerts or warnings about hazardous levels of carbon monoxide. Caution: This device is designed for indoor use only.
  • Page 3 Install the Withings Home close to an easily accessible power outlet. Do not install the equipment in a way that stretches or stresses the power cord. Use the product at temperatures between 10°C and 35°C (50°F and 95°F). Product may be stored in a clean, dry location at 0°C to 50°C (32°F and 122°F) when not in use.

  • Page 4: Table Of Contents

    Withings Home ......................11 Before installing ......................12 Withings Home App ................15 Install the Withings Home App on your iOS device ............15 Launch the Withings Home App ..................15 Creating a new user using the Withings Home App ............16 Withings Home App help files ..................18 Upgrade the Withings Home App ..................18...
  • Page 5 Connect and charge an iOS device using the USB port ..........50 Privacy Mode ....................51 Dissociate a Withings Device ..............52 Access the Quick Start Guide Using the Withings Home App ..53 Access to the FAQ and Withings Home Support ......54 Using the Withings Home App ..................54 Using a Web browser .....................54...

  • Page 6: Box Contents

    Quick Start Guide FR Démarrage rapide | DE Schnellstart | ES Inicio rápido IT Avvio rapido | PT Iniciação rápida | CN 快速入门指南 JP セッ トアップガイド fig - 01 (1) Withings Home (2) Table stand (3) Micro-USB power supply 5V 2A (3A) Plug adapter for (3B) Plug adapter for United...

  • Page 7: Minimum Requirements

    Set up the Withings Home • Access the video and other functions • Track data It is not possible to use the Withings Home without a compatible iOS device at this time. For iOS device compatibility information, refer to “Specifications” on page 58. iOS version version 7 or higher is required to install and run the Withings Home App from the Apple App Store.

  • Page 8: Product Overview

    Sometimes you are at work and you miss the good times that take place at home such as your child’s first steps, or when she sings for the first time. You have the possibility to store these data long term by choosing one of the plans available from Withings.

  • Page 9: System Update / Upgrade

    System update / upgrade The Withings Home includes remotely upgradeable firmware. The firmware is upgraded to the latest version during the setup. After the initial setup, you will be informed automatically of future firmware upgrades by an alert on your iOS device.

  • Page 10: Overview Of The Withings Home Setup

    Overview of the Withings Home Setup To easily install and set up the Withings Home, follow the steps below, which will be detailed in the following pages: 1. Place the Withings Home on a suitable piece of furniture. 2. Plug the AC power adapter into a power outlet. Refer to page 13.

  • Page 11: Setup The Withings Home In Your Home

    Setup the Withings Home in Your Home Withings Home (1K) (1D) (1G) (1E) (1A) (1B) (1C) (1F) (1H) (1I) (1J) (1N) (1M) (1L) fig - 02 (1) Withings Home (1A) Ambient light sensor (1B) 5 MP wide angle video sensor (1C) IR LED – Night Vision (1D) VOC sensor...

  • Page 12: Before Installing

    You can mitigate such interference by distancing your Withings Home of these devices. fig - 03 Note: The Withings Home (1) can be held tilted with its magnetic Table Stand (2), this in order to adjust vertically the area to be monitored. +α...
  • Page 13 1. If you prefer to use a wired connection (such as to avoid the interference problems mentioned above), use a Cat-5 (1J) Ethernet cable to connect your Withings Home to your router. fig - 05 2. Select the correct plug adapter from the travel adapter...
  • Page 14 8. Plug the AC power adapter into a power outlet. fig - 10 9. The Withings Home will start up. The Multicolor night light (1L) will start with the orange light pulsing during few seconds before changing to the blue light pulsing.

  • Page 15: Withings Home App

    Withings Home App Install the Withings Home App on your iOS device 1. Type getapp.withings.com into your iOS device’s web browser. 2. Tap “Download on App Store” as in “fig - 12”. 3. Tap “GET” as shown in “fig - 13”.

  • Page 16: Creating A New User Using The Withings Home App

    If you have not already created a Withings account, the Withings Home App prompts you to create an account automatically before the install process continues. Select “Join Withings”, then follow the steps in the Withings Home App and fill all required fields to create a user, as in “fig - 16”.
  • Page 17 Tap on the icon of 3 bars to access to the Withings Home List” screen. fig - 17 fig - 18 Withings Home EN - 17 v1.0 | December 1st, 2014...

  • Page 18: Withings Home App Help Files

    Withings Home App help files Tap on the icon of 3 bars to access to the Withings Home List screen. From the Withings Home App, you can access to some useful tips to help you learn more about the Home.

  • Page 19: Setup Using The Withings Home App

    The Multicolor night light (1L) starts pulsing with orange light at the start up. The Multicolor night light (1L) provides information on the progress of the installation. Blue light pulsing starts for a new Withings Home which has never been paired with an iOS device.
  • Page 20 4. If the Home does not appear on the list after waiting for about one minute as shown in “fig - 26”, you will need to go to the Bluetooth Devices menu on your iOS device and select the Withings Home to pair manually. Then, return to the Withings Home App and return to step 3.

  • Page 21: Quick Wi-Fi Network Configuration

    Quick Wi-Fi network configuration Withings Home can share Wi-Fi settings (network name, password) stored on your iOS device using the Withings Home App and Bluetooth technology. Prerequisites: • Withings Home App already installed on the device. Refer to “Install the Withings Home App on your iOS device”...

  • Page 22: Manual Wi-Fi Network Configuration

    For most users, the Quick Wi-Fi Configuration is the best choice. However, the Withings Home App allows users to manually select a Wi-Fi network. This function is especially helpful when multiple personal Wi-Fi network are in the range. For example, a home-office equipped with a personal and professional network.

  • Page 23: Ethernet Network Configuration

    RJ45 port on the router • a Cat-5 Ethernet cable (solde separately). fig - 33 From the “Withings Home List” screen, tap on “Settings”, then tap the “+” button under “MY DEVICES”. fig - 34 fig - 35...
  • Page 24 Note: if no Wi-Fi network is detected, a screen, the Withings Home App starts the wired configuration and asks for plugging the Ethernet cable as shown. The Ethernet network configuration will be done automatically. Note: After the setup is complete with the Ethernet cable, Wi-Fi and Bluetooth are switched off automatically.

  • Page 25: Configuring The Withings Home In The Withings Home App

    • A Withings account is required to install and configure the Withings Home. If a user account is not registered in the Withings Home App, the app will prompt you to create one automatically. Refer to “Creating a new user using the Withings Home App” on page 16.
  • Page 26 All installed devices are listed in the “MY DEVICES” screen. From the “Withings Home List” screen, select “Settings” to reach the “MY DEVICES” screen. fig - 40 fig - 41 fig - 42 From the “Settings” screen, you can: •...
  • Page 27 To change the iOS system authorizations for notifications, follow steps shown in “fig - 45”, “fig - 46”, and “fig - 47”. fig - 45 fig - 46 fig - 47 Withings Home EN - 27 v1.0 | December 1st, 2014...

  • Page 28: Upgrade The Withings Home Firmware

    Upgrade the Withings Home firmware During the installation, the Withings Home App automatically checks that the firmware of the Withings Home is up to date. After the installation, the Withings Home will automatically download the new update and leave you the choice to reboot immediately or later.

  • Page 29: Display The Firmware Version

    Display the firmware version To see what version of the firmware your Withings Home is currently running, go to “MY DEVICES” in the “Withings Home List” screen, and tap the device you wish to check. fig - 49 fig - 50...

  • Page 30: Home Monitoring

    The Withings home monitoring system provides continuous monitoring over time, so you can know what is happening right now, as well as what happened just a few moments ago. The Withings Home App allows you to view the live video feed as well as see a history of recent noteworthy events.

  • Page 31: Live Stream

    Live stream You can access to the live stream screen whenever you open the Withings Home App or by tapping the “Live Stream” option on the “Withings Home List” menu screen. Note: Withings Home can be configured on multiple iOS devices using the same account, but can only stream to one of the devices.
  • Page 32 Slide apart your thumb and index fingers to zoom in to the video; pinch closed to zoom out. Rotate your iOS device to change the display mode from portrait to landscape. fig - 55 Withings Home EN - 32 v1.0 | December 1st, 2014...

  • Page 33: Photo Album

    Photo album Whenever a noteworthy event is detected, your Withings Home takes a photo and backs it up on a remote server for 2 days. Tap the Photo Album in the Withings Home List menu. You can preview a photo in a new screen by tapping its thumbnail in the Photo Album.
  • Page 34 In the preview screen, tap the upload icon on the right upper corner, to: • Share the photo by AirDrop, Message, Mail, and iCloud Photo Sharing • Save Image • Copy • Print fig - 59 fig - 60 Withings Home EN - 34 v1.0 | December 1st, 2014...

  • Page 35: Notification Settings

    Instant notifications appear immediately on your iOS device home screen whenever a noteworthy event is detected. You can enable or disable instant notifications on the “Withings Home List” screen as shown in “fig - 66”. Disabling can be useful when you don’t want to be disturbed with push notifications.
  • Page 36 Withings Home can identify particular activities and to keep you in the know. For the indoor air quality degradation, you can set the VOCs level (Volatile organic compounds) and choose to receive notifications when a VOC spike is reached.

  • Page 37: Activity Tracking (Home Diary)

    - 67 fig - 68 fig - 69 The range for VOCs on the Withings Home is from 450 — 5000 ppm. An average value is about 1000 ppm for a regular home interior. • Good: 450 to 1,000 ppm •...
  • Page 38 Whenever a movement is detected, your Withings Home takes a photo and its thumbnail (reduced-size of photo) appears on the Home Diary. Withings Home works out and indicates the importance of the event by color coded icons in the Home Diary: orange (important), or red (very important).
  • Page 39 Withings Home works out and indicates the duration and the importance of the event by color coded icons in the Home Diary: orange (important), or red (very important). You can play the recorded sound in a new screen by tapping on the event.
  • Page 40 Whenever a noise and movement are detected, your Withings Home takes a video and its thumbnail appears on the Home Diary. Withings Home works out and indicates the duration importance of the event by color coded icons in the Home Diary: orange (important), or red (very important).
  • Page 41 Whenever higher levels of VOCs (Volatile organic compounds) relative to your settings (refer “Notification settings” on page 35) are detected, your Withings Home displays the VOC data and indicates the importance of the event by orange icons (important) or red icons (very important) on the Home Diary.
  • Page 42 Detected movement time-lapse: From the Home Diary screen, tap the play icon in the right upper corner to view all recorded movements in a timelapse in a new screen. fig - 77 fig - 78 fig - 79 Withings Home EN - 42 v1.0 | December 1st, 2014...

  • Page 43: Live Data (Air Quality)

    You can access the live data of your air quality readings whenever you run the Withings Home App or by tapping the “Air quality” on the “Withings Home List” screen. You can swipe the screen to display captured data during previous days.
  • Page 44 What are ppm? VOC are measured in particles per million (ppm). The range for VOCs on the Withings Home is from 450 — 5000 ppm. An average value is about 1000 ppm for a regular home interior. • Good: 450 to 1,000 ppm •...

  • Page 45: Cloud Video Recording (Cvr Plans)

    Note: Cloud Video Recording (CVR) will be available in the first quarter 2015. You have the possibility to store smart snapshots and video clips captured by your Withings Home. For benefit from this service, you can choose one of the optional Cloud Video Recording plans available from the Withings web site.

  • Page 46: Functions

    The time of your Withings Home is set and synced automatically with the Withings web service. In the event of a power failure in your home, the Withings Home will reboot once power has returned. The Withings Home will retrieve the current time via Withings web service.

  • Page 47: Lullaby Program

    Turn the wheel to set the duration as shown in “fig - 90”. • Tap in the center of the wheel to activate the Lullaby program as shown in “fig - 91”. fig - 88 Withings Home EN - 47 v1.0 | December 1st, 2014...
  • Page 48 Tap the Lullaby program button • Turn the wheel counterclockwise until the “OFF” is displayed. • Tap in the center of the wheel to stop the program. fig - 93 fig - 94 Withings Home EN - 48 v1.0 | December 1st, 2014...
  • Page 49 Adjust the night light using the “Brightness” slider as shown in “fig - 95” • Activate/deactivate the rainbow animation as in “fig - 98” • Select the night light color as shown in “fig - 97”. fig - 96 fig - 95 Withings Home EN - 49 v1.0 | December 1st, 2014...

  • Page 50: Connect And Charge An Ios Device Using The Usb Port

    - 98 fig - 97 Connect and charge an iOS device using the USB port The Withings Home can charge your iPod or iPhone. The USB power delivery is limited to 500mA. (1H) Do not connect or charge other devices such as iPad, iPad Air, or iPad mini.

  • Page 51: Privacy Mode

    To enter in Privacy Mode, turn the Interchangeable Cover (1E) as shown. Entering the Privacy Mode blocks all new requests for audio and video streaming. For example, if you’ve arrived home, and no longer need the video stream available. However, this handling does not interrupt the current streaming.

  • Page 52: Dissociate A Withings Device

    Dissociate a Withings Device Dissociate a device removes it from your account. You may want to do this if you will be giving the Withings Home to someone else after setting it up and using it yourself. 1. To dissociate a Withings device, select it under “MY DEVICES”...

  • Page 53: Access The Quick Start Guide Using The Withings Home App

    Access the Quick Start Guide Using the Withings Home App From the Withings Home App and following the steps below, you can access to the digital version of the Quick Start Guide (4). fig - 106 fig - 107 fig - 108...

  • Page 54: Access To The Faq And Withings Home Support

    Access to the FAQ and Withings Home Support Using the Withings Home App From the Withings Home App and following the steps below, you can accede directly to FAQ (Frequently Asked Questions). fig - 109 fig - 110 Using a Web browser You can accede directly to the Withings Home FAQ (Frequently Asked Questions) by clicking on the following link: http://support.withings.com/home, or by typing the web address into a...

  • Page 55: Troubleshooting

    The Withings Home can self diagnose certain issues. The Multicolor night light (1L) provides you about the statues of your Withings Home. • Blue light pulsing indicates that your Withings Home is ready for Bluetooth pairing with your iOS device •...

  • Page 56: Home Withings Reset

    >1s fig - 113 Your Withings Home will restart. A blue light pulsing indicates that your Withings Home is ready for Bluetooth pairing with your iOS device. 3. Go in the your iOS device Bluetooth settings and tap “Forget this device”.

  • Page 57: Care And Cleaning Instructions

    Care and Cleaning Instructions To clean your Withings Home, wipe surfaces down with soap and slightly damp cloth only. The Interchangeable Cover (1E) comes with your Withings Home is made of genuine European White Oak. Do not use any solvent to clean it.

  • Page 58: Specifications

    Specifications Withings Home • Friendly and elegant design to fit diverse room styles • Multi-color LED technology High definition camera • 5 Megapixels CMOS sensor • Pan range: Ultra wide 135° angle lens (camera angular field of view: horizontal, vertical, diagonal) •...
  • Page 59 (5 generation) Compatible iOS versions • iOS 7.0 and above iOS App • Withings Home App Remote supervision • Security: Secure streaming - DTLS end-to-end encryption • Ultra low delay: Usually less than one second in 4G or Wi-Fi •...

  • Page 60: Document Release Overview

    Release date Modifications December 1 2014 v1.0 First release The screenshots in this manual are used for explanatory purposes. Your actual screens may differ from the screenshots in this manual. Withings Home EN - 60 v1.0 | December 1st, 2014...

  • Page 61: Warranty

    Withings-branded Home hardware product and accessories contained in the original packaging (“Withings Product”) against defects in materials and workmanship when used normally in accordance with Withings’ published guidelines for a period of ONE (1) YEAR from the date of original retail purchase by the end-user purchaser («Warranty Period»).

  • Page 62: Regulatory Statements

    To protect privacy, avoid installing the Withings Home camera overlooking the street or your neighbours’ property. Be aware that local law and regulation can restrict the use of your Withings L E X Home. We advise you to inform your family, relatives and home employee, if any, that you have installed the Withings Home on your premises.

  • Page 63: Industry Canada Statement

    - Children shall not play with the appliance - Cleaning and user maintenance shall not be made by children without supervision Withings Home EN - 63 v1.0 | December 1st, 2014...

  • Page 64: European Union-Disposal Information

    The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. Withings Home EN - 64 v1.0 | December 1st, 2014...
  • Page 65 Withings Home v1.0 | December 1st, 2014 ©2014 Withings. All rights reserved. withings.com/home...
