exacqVision S series Quick Start Manual

S-Series Enterprise Quick Start
©2013 ExacqTechnologies
www.exacq.com
500-00043
#
+1.317.845.5710 USA (Corporate Headquarters)
+44.1438.310163 Europe/Middle East/Asia
S-Series Enterprise Quick Start
1

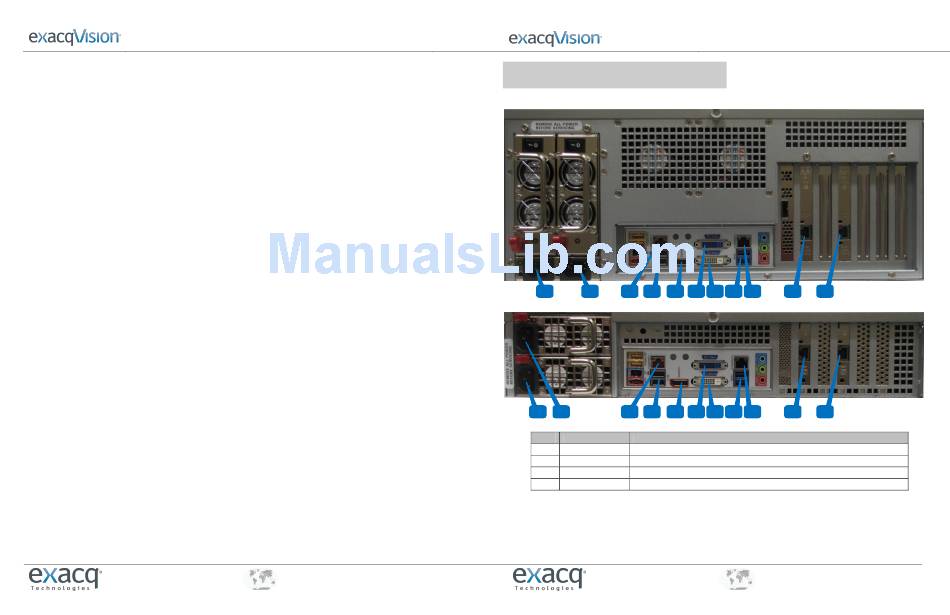

Hardware Overview and Installation
4U S-Series Enterprise System
1a 1b 2a 3a 4a
2U S-Series Enterprise System
1a 1b 2a 3a 4a
Item # Description Notes
1 Power 100-240VAC 50/60Hz (connect 1a and 1b to separate power circuits)
2 10/100/1000 Ethernet Dual on-board NICs:
3 USB (up to four ports) Keyboard, mouse, USB memory device, or DVD burner (additional yellow USB ports for charging devices)
4 Video out DisplayPort (4a), DVI-I (4b), DVI-D (4c); a maximum of two video outputs should be used simultaneously
NOTE: A power switch, additional USB ports, and a status display are also located on the front panel of the S-Series Enterprise system.
NOTE: S-series servers are configured for NIC bonding using active backup. Connect the data NIC ports (black) to Ethernet switches.
should NOT be used to transmit data. For maximum throughput, configure the network switches for IEEE 802.3ad Link Aggregation, and enable
jumbo frames. Contact Exacq technical support for S-series configuration instructions. Failure to properly configure the S-series and network switch
might cause network failure.
www.exacq.com
4b 4c 3b 2b 2c 2d
4b 4c 3b 2b 2c 2d
2a is for management; 2b is for data. Additional data NICs: 2c and 2d (optional)
+1.317.845.5710 USA (Corporate Headquarters)
+44.1438.310163 Europe/Middle East/Asia
The red NIC
