exacqVision A Series 2U NVR Quick Start Manual

1

Connections

1 2
1 2
Item # Description
1 PS-2 Port
2 RS-232 Port
3 Video out
4 USB (up to 6 per system)
5 10/100/1000 Ethernet (x2)
6 Audio out
7 Video In (Hybrid only)
8 Video Out (Hybrid only)
9 Auxiliary Connections
10 Power*
*There is also a power button on the front of the system that must be activated to provide power to the system.
A Series 2U NVR Quick Start

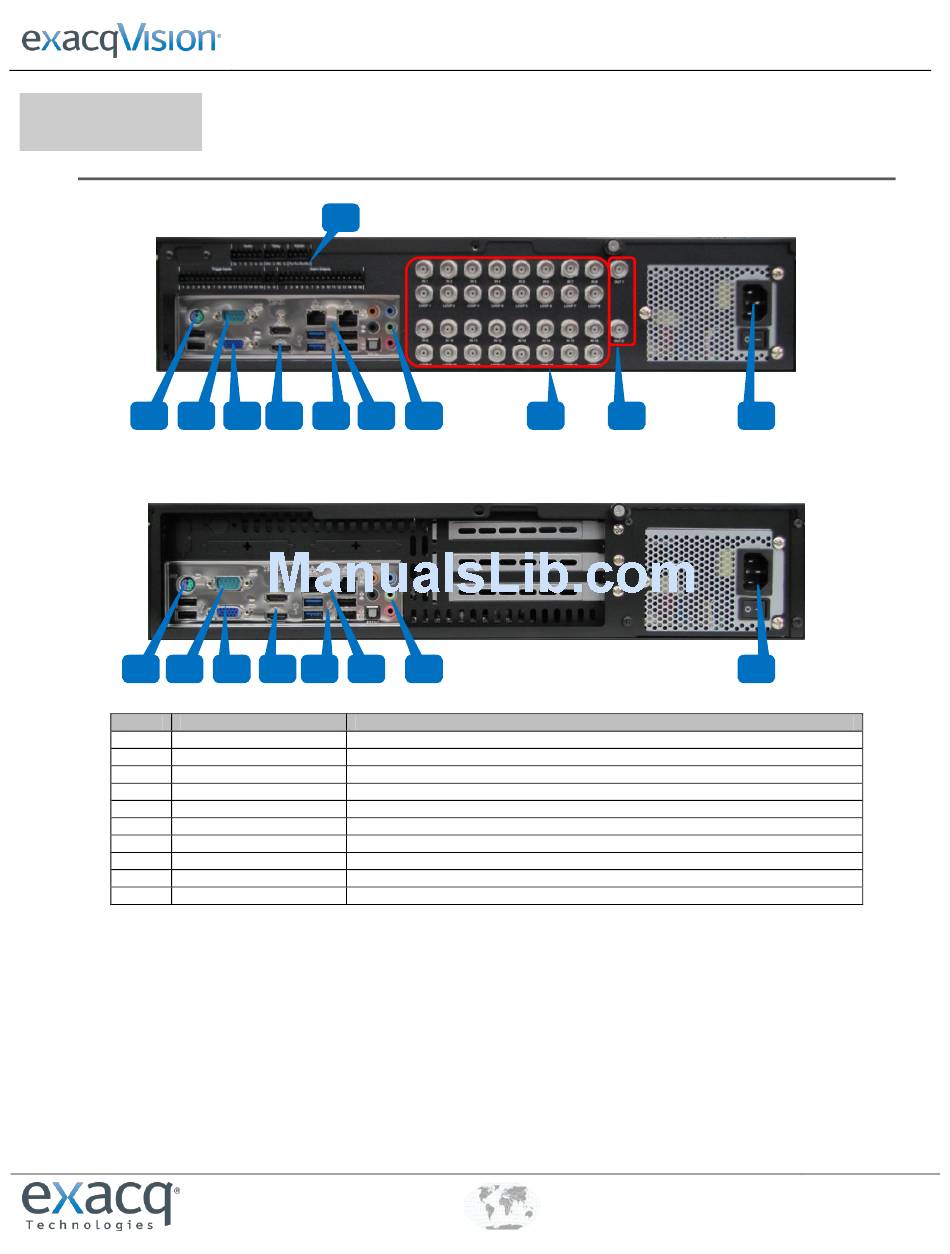

MAIN BACK PANEL CONNECTIONS
9
3a 3b 4 5
A Series 2U IP Only
3a 3b 4 5
Notes
For compatible mouse or keyboard
POS, ATM, access control integration
VGA (3a) or two HDMI (3b); up to two video out can be used simultaneously
Keyboard, mouse, USB memory device, or DVD burner
Line level stereo audio out (green)
16 inputs and 16 looping outputs; or 32 inputs
2 outputs on 16-input system; 4 outputs on 32-input system
Hybrid systems only. See detail on next page
100-240VAC 50/60Hz
NOTE: Optional redundant power supply and second network interface card not shown.
www.exacq.com
A Series 2U Hybrid
6 7
6
+1.317.845.5710
+5255.56080817
+44.1438.310163
8 10
10
USA (Corporate Headquarters)
Mexico
Europe/Middle East/Asia
Page 1 of 4
3/25/2013
