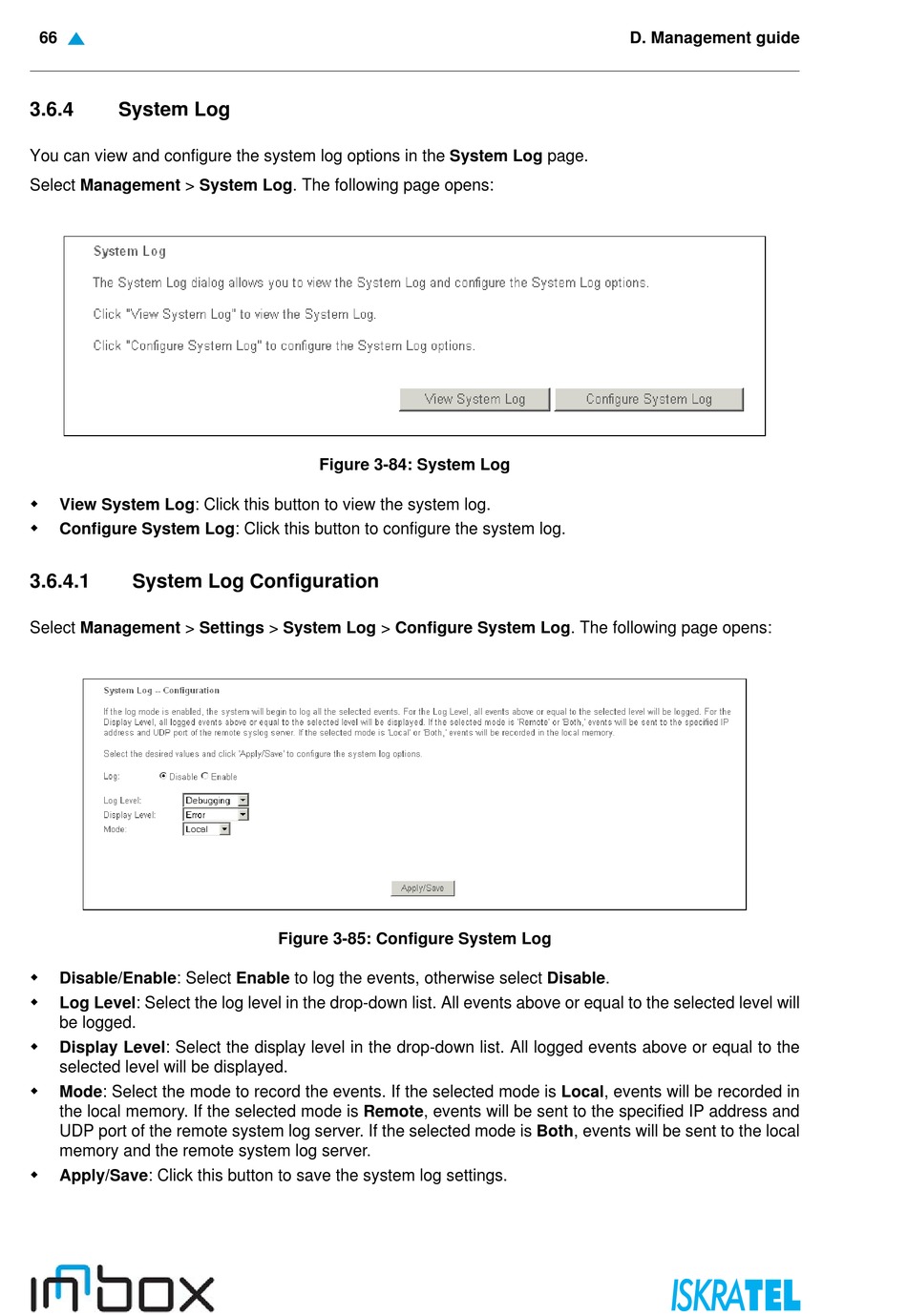

66
3.6.4

System Log

You can view and configure the system log options in the System Log page.
Select Management > System Log. The following page opens:

View System Log: Click this button to view the system log.

Configure System Log: Click this button to configure the system log.
3.6.4.1

System Log Configuration

Select Management > Settings > System Log > Configure System Log. The following page opens:

Disable/Enable: Select Enable to log the events, otherwise select Disable.

Log Level: Select the log level in the drop-down list. All events above or equal to the selected level will
be logged.

Display Level: Select the display level in the drop-down list. All logged events above or equal to the
selected level will be displayed.

Mode: Select the mode to record the events. If the selected mode is Local, events will be recorded in
the local memory. If the selected mode is Remote, events will be sent to the specified IP address and
UDP port of the remote system log server. If the selected mode is Both, events will be sent to the local
memory and the remote system log server.

Apply/Save: Click this button to save the system log settings.
Figure 3-84: System Log
Figure 3-85: Configure System Log
