Diagnostics

For view or modify more SIP Debug Settings click Service provider tab. The following page opens:

SIP log server IP Address: Input IP address of the SIP log server.

SIP log server port: Port number of the SIP log server.

Start SIP client: Click to start the SIP client.

Stop SIP client: Click to stop the SIP client.

Apply: Click to confirm the setting.
3.5 Diagnostics
3.5.1 Diagnostics
This section describes the result of the test for the connection to your local network, DSL service provider
and Internet service provider. You can refer to the Help menu to get more information about the
corresponding test.

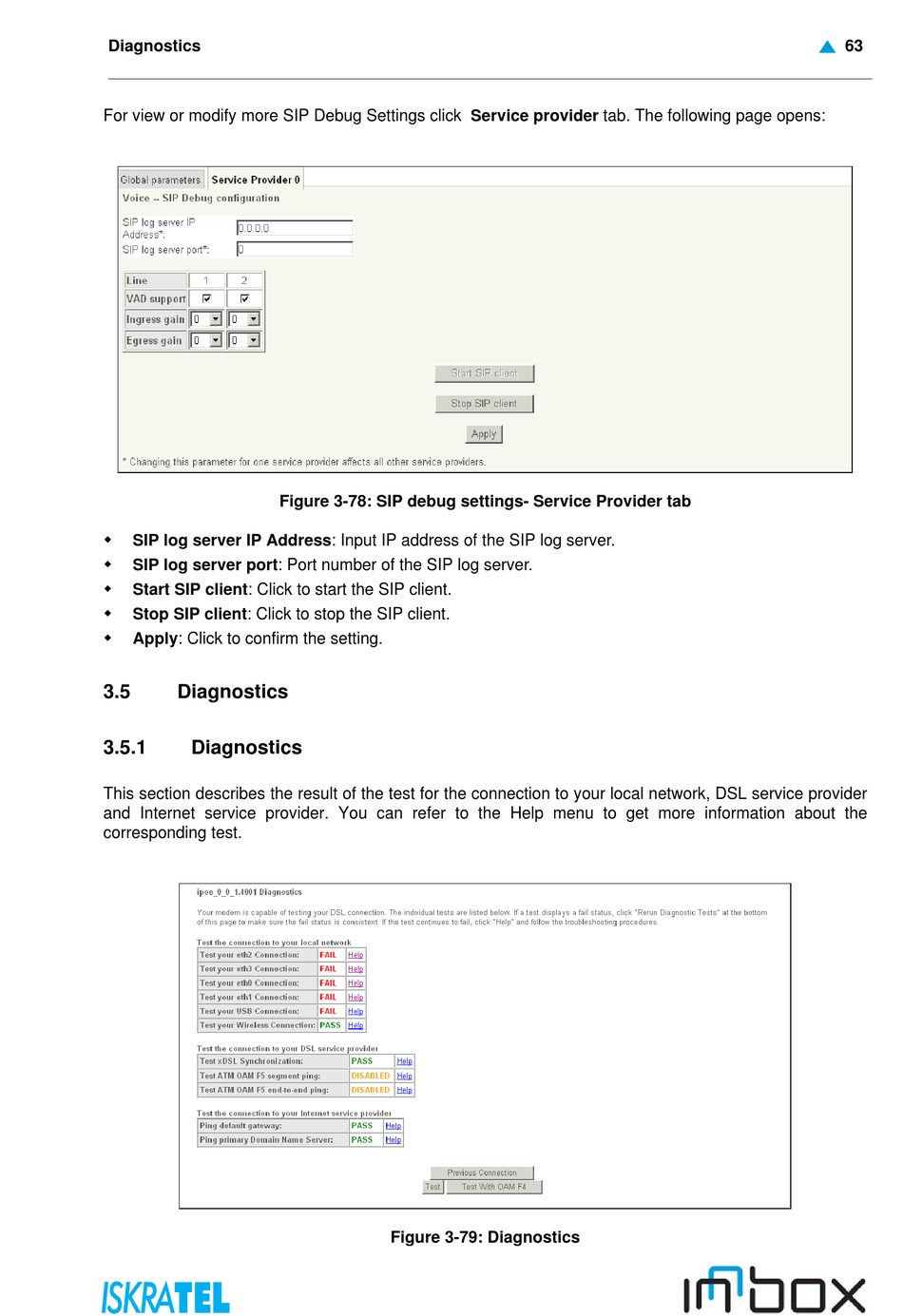

Figure 3-78: SIP debug settings- Service Provider tab
Figure 3-79: Diagnostics
63
