Iskratel Innbox V50-U Management Manual page 69

SIP Advanced Settings
For view or modify more SIP Advanced Settings click Service provider tab. The following page opens:

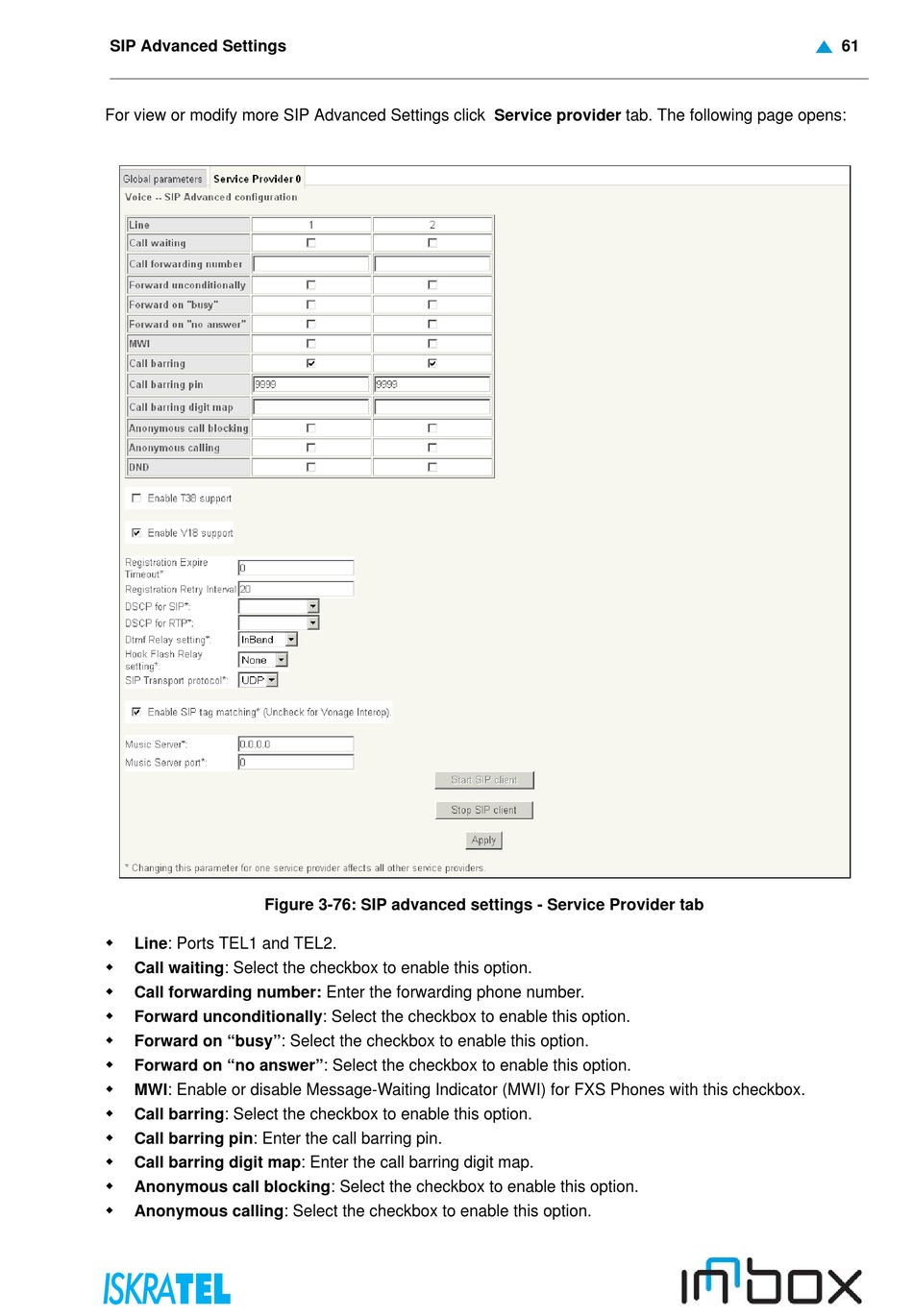

Figure 3-76: SIP advanced settings - Service Provider tab

Line: Ports TEL1 and TEL2.

Call waiting: Select the checkbox to enable this option.

Call forwarding number: Enter the forwarding phone number.

Forward unconditionally: Select the checkbox to enable this option.

Forward on "busy": Select the checkbox to enable this option.

Forward on "no answer": Select the checkbox to enable this option.

MWI: Enable or disable Message-Waiting Indicator (MWI) for FXS Phones with this checkbox.

Call barring: Select the checkbox to enable this option.

Call barring pin: Enter the call barring pin.

Call barring digit map: Enter the call barring digit map.

Anonymous call blocking: Select the checkbox to enable this option.

Anonymous calling: Select the checkbox to enable this option.
61
