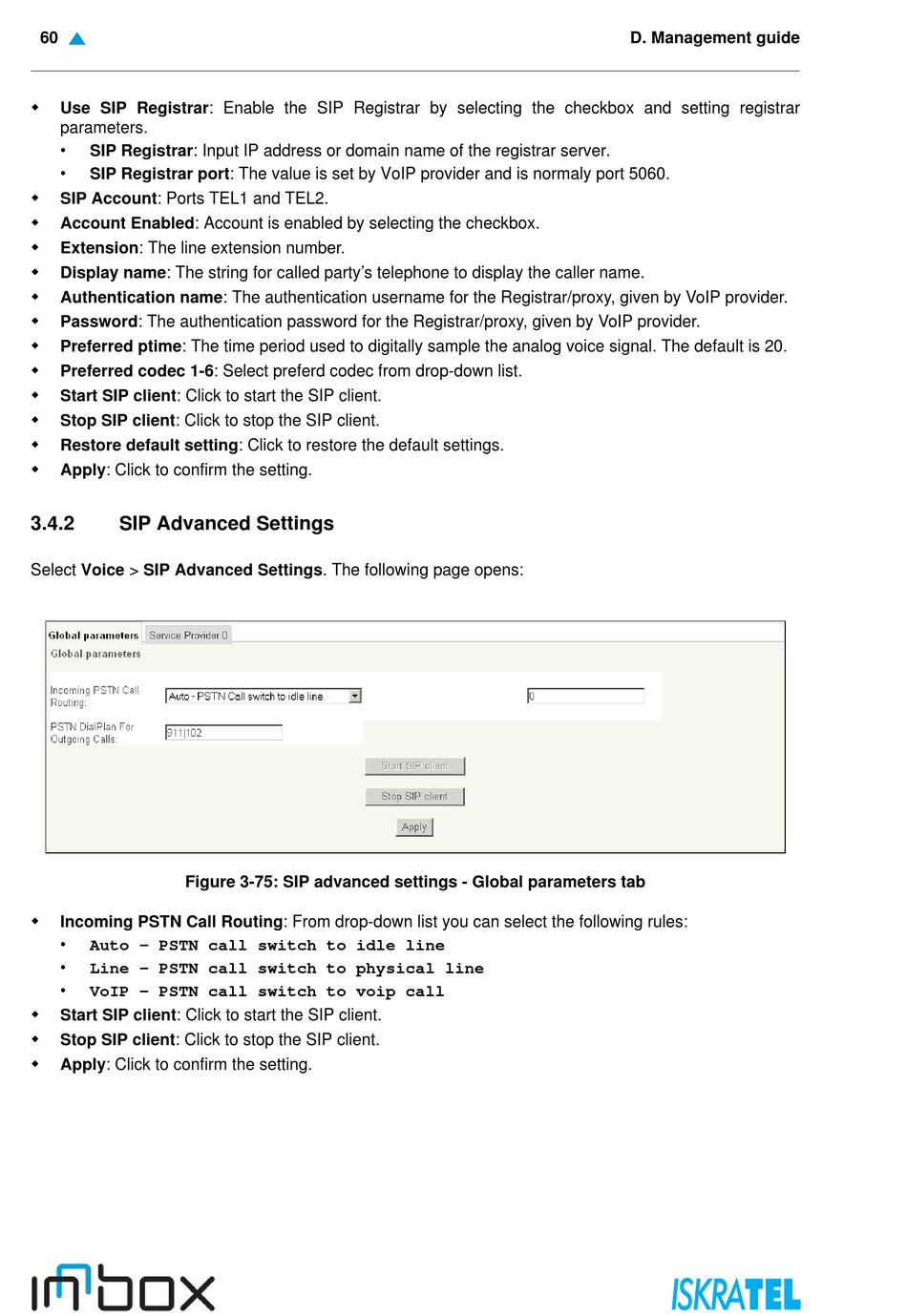

Sip Advanced Settings - Iskratel Innbox V50-U Management Manual

60

Use SIP Registrar: Enable the SIP Registrar by selecting the checkbox and setting registrar
parameters.
• SIP Registrar: Input IP address or domain name of the registrar server.
• SIP Registrar port: The value is set by VoIP provider and is normaly port 5060.

SIP Account: Ports TEL1 and TEL2.

Account Enabled: Account is enabled by selecting the checkbox.

Extension: The line extension number.

Display name: The string for called party's telephone to display the caller name.

Authentication name: The authentication username for the Registrar/proxy, given by VoIP provider.

Password: The authentication password for the Registrar/proxy, given by VoIP provider.

Preferred ptime: The time period used to digitally sample the analog voice signal. The default is 20.

Preferred codec 1-6: Select preferd codec from drop-down list.

Start SIP client: Click to start the SIP client.

Stop SIP client: Click to stop the SIP client.

Restore default setting: Click to restore the default settings.

Apply: Click to confirm the setting.
3.4.2

SIP Advanced Settings

Select Voice > SIP Advanced Settings. The following page opens:
Figure 3-75: SIP advanced settings - Global parameters tab

Incoming PSTN Call Routing: From drop-down list you can select the following rules:
•
Auto - PSTN call switch to idle line
•
Line - PSTN call switch to physical line
•
VoIP - PSTN call switch to voip call

Start SIP client: Click to start the SIP client.

Stop SIP client: Click to stop the SIP client.

Apply: Click to confirm the setting.
D. Management guide
