SIP Basic Settings
To view or modify more SIP Basic Settings click Service provider tab. The following page opens:

Local Selection: Set tone, ring type and physical characteristics for each specific country.

SIP domain name: Provided by your VoIP service provider.

Use SIP Proxy: Enable the SIP Proxy by selecting the checkbox and setting proxy parameters.
• SIP Proxy: Input IP address or domain name of the SIP proxy server, used for VoIP service.
• SIP Proxy port: The value is set by VoIP provider and is normaly port 5060.

Use SIP Outbound Proxy: Enable the SIP Outbound Proxy by selecting the checkbox and setting
proxy parameters.
• SIP Outbound Proxy: Input IP address or domain name of the SIP Outbound proxy server, used
for VoIP service.
• SIP Outbound Proxy port: The value is set by VoIP provider and is normaly port 5060.

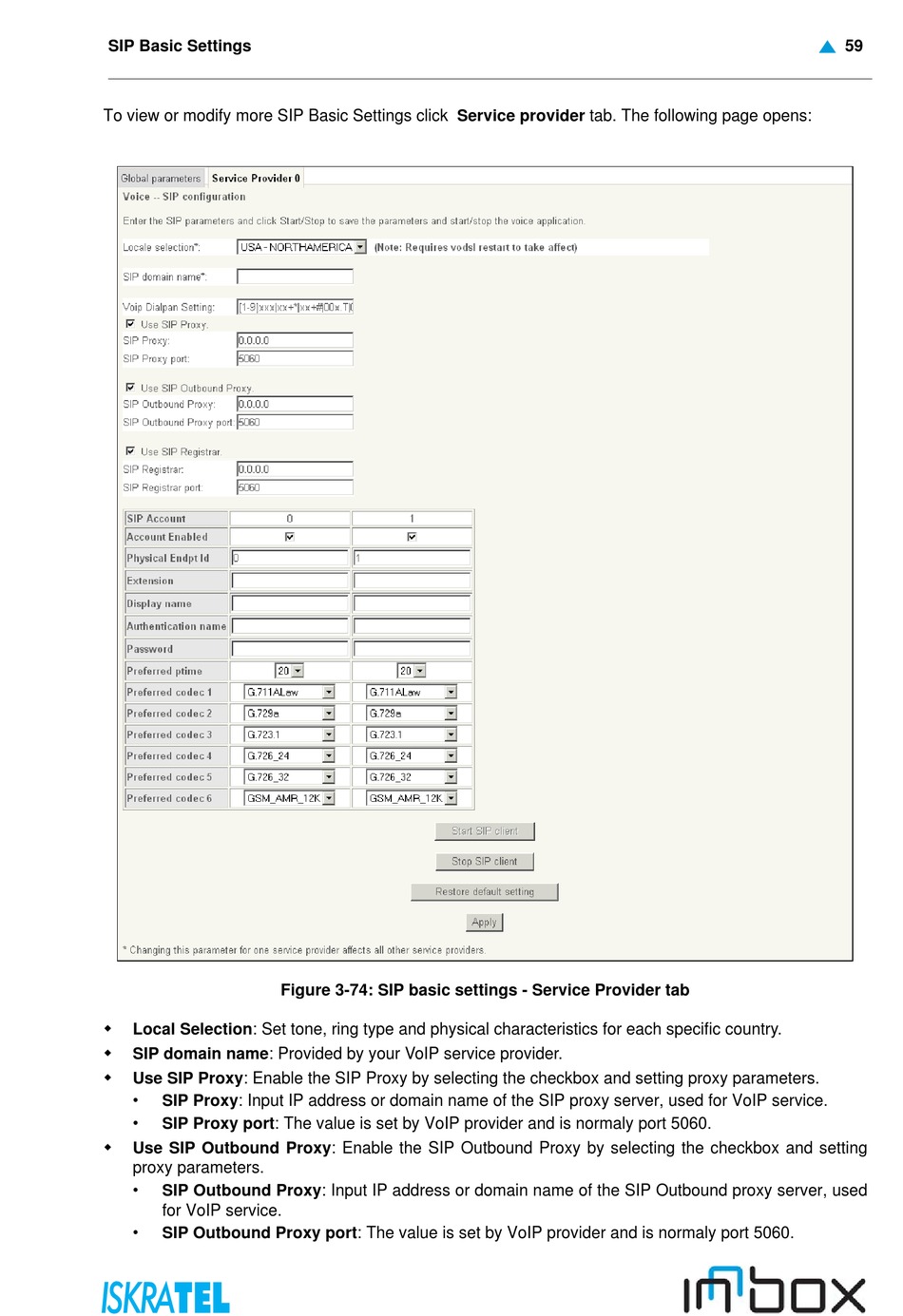

Figure 3-74: SIP basic settings - Service Provider tab
