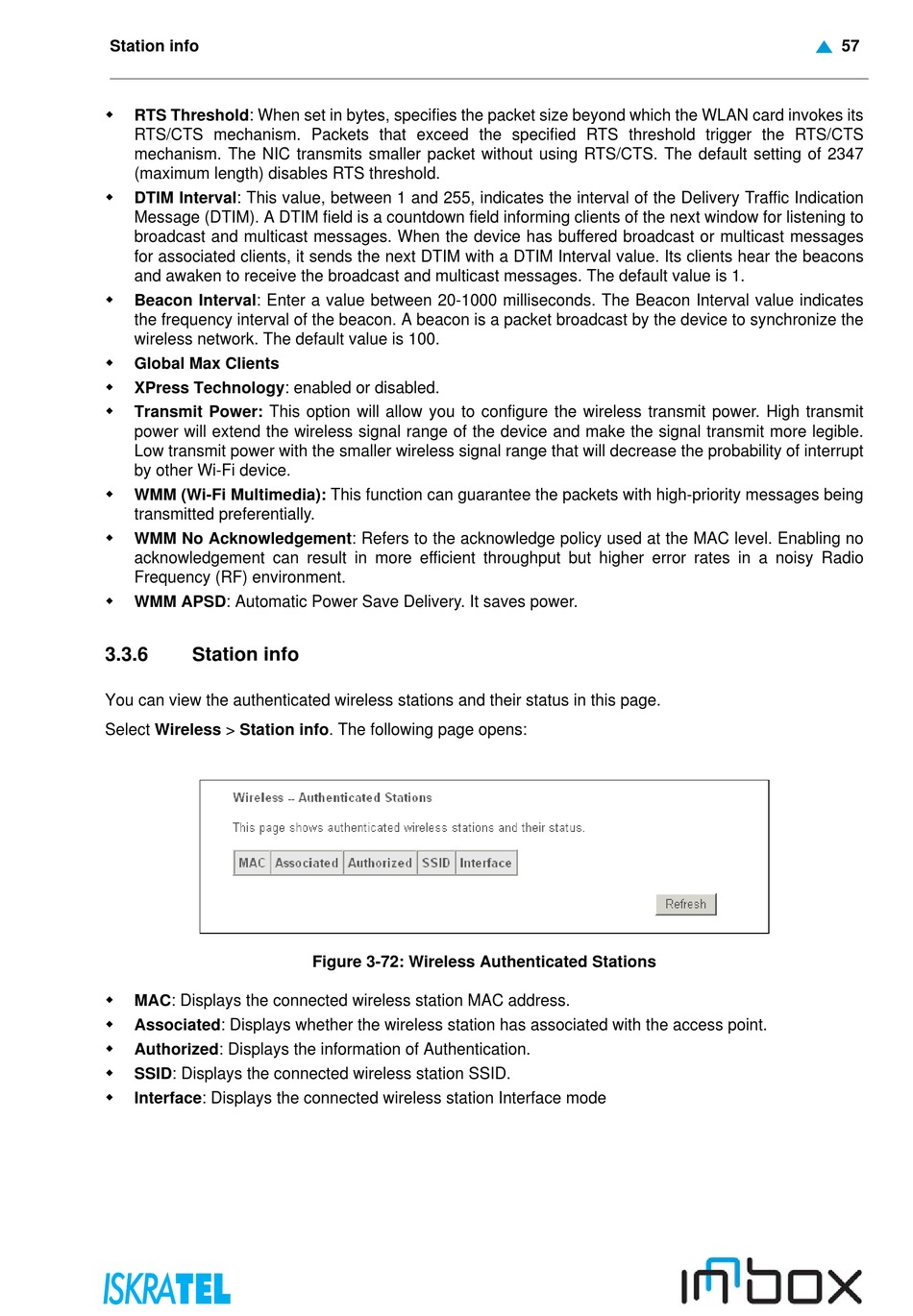

Station Info - Iskratel Innbox V50-U Management Manual

Station info


RTS Threshold: When set in bytes, specifies the packet size beyond which the WLAN card invokes its
RTS/CTS mechanism. Packets that exceed the specified RTS threshold trigger the RTS/CTS
mechanism. The NIC transmits smaller packet without using RTS/CTS. The default setting of 2347
(maximum length) disables RTS threshold.

DTIM Interval: This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication
Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to
broadcast and multicast messages. When the device has buffered broadcast or multicast messages
for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons
and awaken to receive the broadcast and multicast messages. The default value is 1.

Beacon Interval: Enter a value between 20-1000 milliseconds. The Beacon Interval value indicates
the frequency interval of the beacon. A beacon is a packet broadcast by the device to synchronize the
wireless network. The default value is 100.

Global Max Clients

XPress Technology: enabled or disabled.

Transmit Power: This option will allow you to configure the wireless transmit power. High transmit
power will extend the wireless signal range of the device and make the signal transmit more legible.
Low transmit power with the smaller wireless signal range that will decrease the probability of interrupt
by other Wi-Fi device.

WMM (Wi-Fi Multimedia): This function can guarantee the packets with high-priority messages being
transmitted preferentially.

WMM No Acknowledgement: Refers to the acknowledge policy used at the MAC level. Enabling no
acknowledgement can result in more efficient throughput but higher error rates in a noisy Radio
Frequency (RF) environment.

WMM APSD: Automatic Power Save Delivery. It saves power.
3.3.6 Station info
You can view the authenticated wireless stations and their status in this page.
Select Wireless > Station info. The following page opens:

MAC: Displays the connected wireless station MAC address.

Associated: Displays whether the wireless station has associated with the access point.

Authorized: Displays the information of Authentication.

SSID: Displays the connected wireless station SSID.

Interface: Displays the connected wireless station Interface mode
Figure 3-72: Wireless Authenticated Stations
57
