Advanced - Iskratel Innbox V50-U Management Manual

56
3.3.5

Advanced

Select Wireless > Advanced. The following page opens:

Band: Select the band.

Channel: Select the channel you want to use from the drop-down list. This field determines which
operating frequency will be used. It is not necessary to change the wireless channel unless you notice
interference problems with another nearby access point.

Auto Channel Timer (min): Auto channel scan timer in minutes (0 to disable).

802.11n/EWC:

Bandwidth: Select the bandwidth from the drop-down list. When higher bandwidth is selected, the
device could transmit and receive data with a higher speed.

Control Sideband: When higher bandwidth is selected, you can then select the Control Sideband you
want.

54g Rate (Wireless Communication Rate): Drop-down menu that specifies the following fixed rates:
Auto: Default. Uses the 11 Mbps data rate when possible but drops to lower rates when necessary. 1
Mbps, 2Mbps, 5.5Mbps, or 11Mbps fixed rates. The appropriate setting is dependent on signal
strength.

Multicast Rate: Multicast packet transmit rate.

Basic Rate: Basic transmit rate.

Fragmentation Threshold: A threshold, specified in bytes, that determines whether packets will be
fragmented and at what size. On an 802.11 WLAN, packets that exceed the fragmentation threshold
are fragmented, i.e., split into, smaller units suitable for the circuit size. Packets smaller than the
specified fragmentation threshold value are not fragmented. Enter a value between 256 and 2346. If
you experience a high packet error rate, try to slightly increase your Fragmentation Threshold. The
value should remain at its default setting of 2346. Setting the Fragmentation Threshold too low may
result in poor performance.

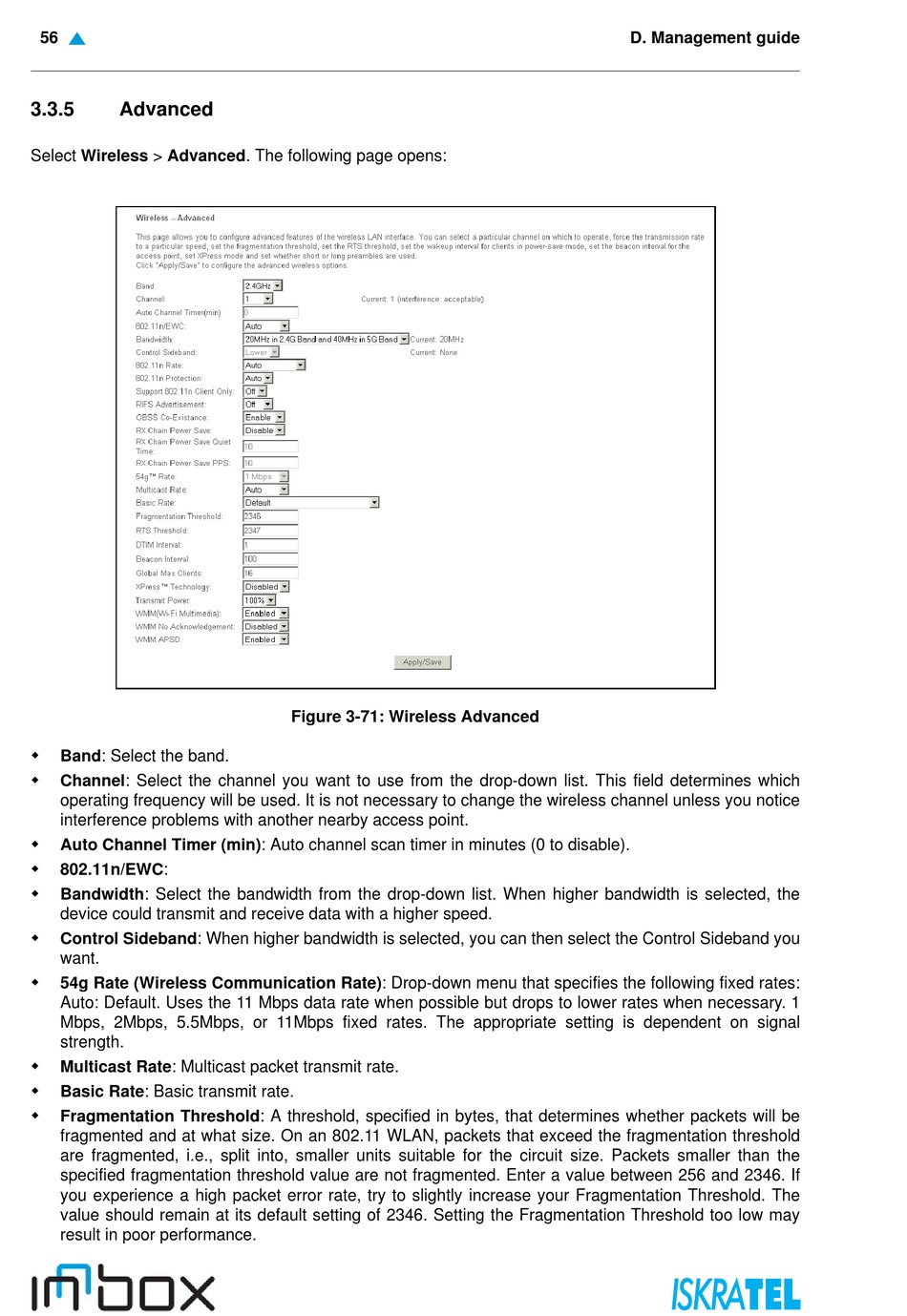

Figure 3-71: Wireless Advanced
D. Management guide
