Iskratel Innbox V50-U Management Manual page 54

46

RADIUS Server IP Address: The IP address of the RADIUS server.

RADIUS Port: The port of the RADIUS server. The default number is 1812.

RADIUS key: The password of the RADIUS server.

Encryption Strenght: Select the appropiate level of encryption, 64-bit or 128-bit.

Current Network Key: To indicate which WEP key to use, select a transmission key number.

Network Key 1-4: If you want to manualy enter the WEP keys, then enter the network key in the
Network Key 1-4 fields.

Apply/Save: Save the current settings.

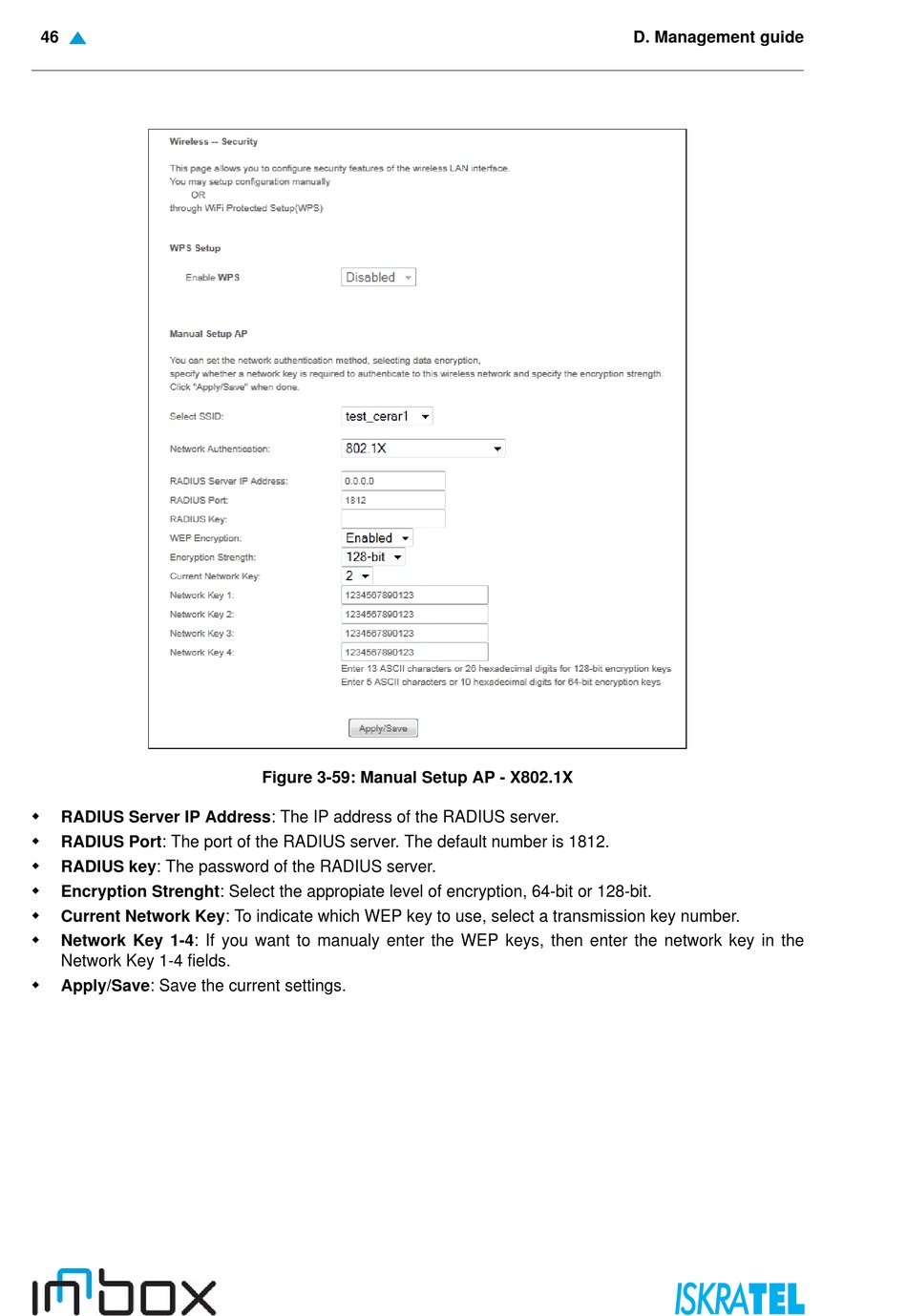

Figure 3-59: Manual Setup AP - X802.1X
D. Management guide
