Wep - Iskratel Innbox V50-U Management Manual

WEP

3.3.2.1.1 WEP
WEP is a basic encryption method offering two levels of encryption, 64-bit and 128-bit encryption. To
configure the WEP encryption, there are three ways:

Keep the Network Authentication of Open and select Enable from the WEP Encryption drop-down list
(shown in 3-57). Open allows any wireless station to associate with the access point.

Select Shared from the Network authentication drop-down list as shown in 3-58. Shared only allows
stations using a shared key encryption to associate with it. Shared key requires additional
configuration of the key to be used.

Select 802.1X from the Network authentication drop-down list as shown in 3-59. 802.1X allowing a
user to be authenticated by a central authority.

Encryption Strenght: Select the appropiate level of encryption, 64-bit or 128-bit.

Current Network Key: To indicate which WEP key to use, select a transmission key number.

Network Key 1-4: If you want to manually enter the WEP keys, then enter the network key in the
Network Key 1-4 fields.

Apply/Save: Save the current settings.

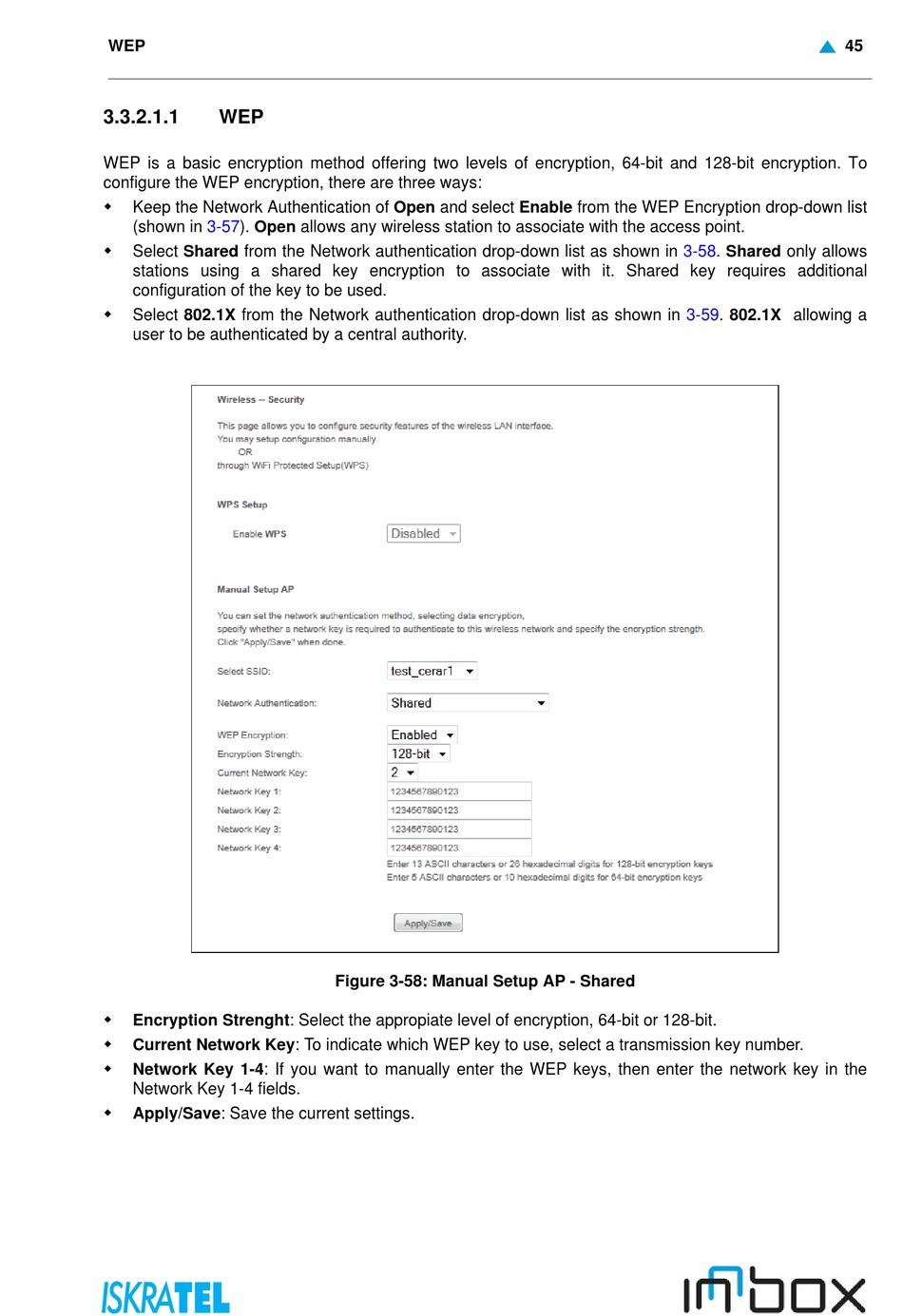

Figure 3-58: Manual Setup AP - Shared
45
