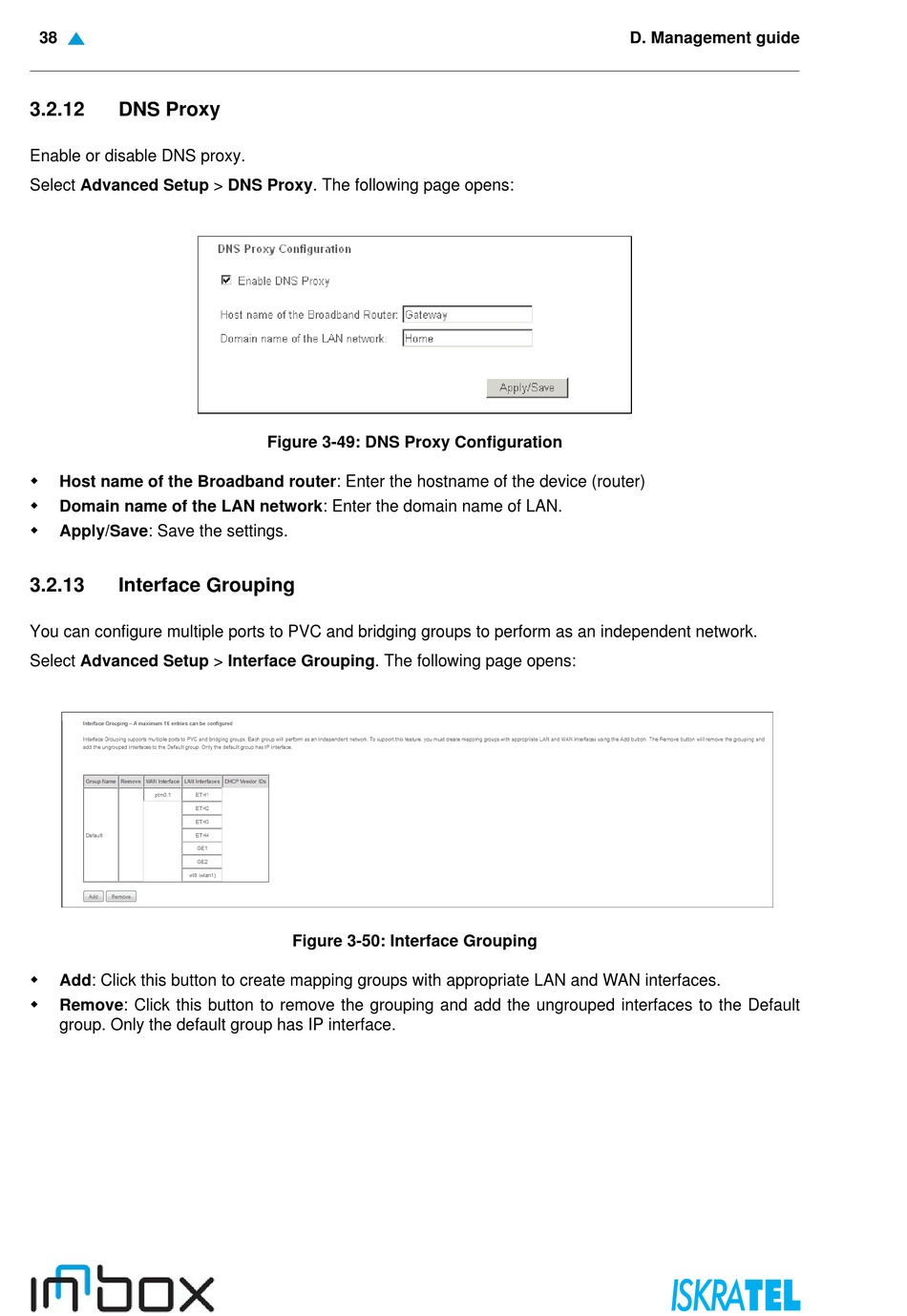

Dns Proxy; Interface Grouping - Iskratel Innbox V50-U Management Manual

38
3.2.12

DNS Proxy

Enable or disable DNS proxy.
Select Advanced Setup > DNS Proxy. The following page opens:

Host name of the Broadband router: Enter the hostname of the device (router)

Domain name of the LAN network: Enter the domain name of LAN.

Apply/Save: Save the settings.
3.2.13

Interface Grouping

You can configure multiple ports to PVC and bridging groups to perform as an independent network.
Select Advanced Setup > Interface Grouping. The following page opens:

Add: Click this button to create mapping groups with appropriate LAN and WAN interfaces.

Remove: Click this button to remove the grouping and add the ungrouped interfaces to the Default
group. Only the default group has IP interface.
Figure 3-49: DNS Proxy Configuration
Figure 3-50: Interface Grouping
D. Management guide
