Policy Routing Setup; Rip - Iskratel Innbox V50-U Management Manual

32
3.2.8.3.1

Policy Routing Setup

1. Select Advanced Setup > Routing > Policy Route > Add. The following page opens:
2. Enter the policy name, policies and WAN interface.
3. Click Apply/Save to add the entry to the policy routing table.
3.2.8.4

RIP

Routing Information Protocol (RIP) is a process of moving a packet from one node to another by
forwarding the packet to the next router. It determines a route based on the smallest hop count between
source and destination routers.
Note: RIP cannot be configured on the WAN Interface which has NAT enabled (such as
PPPoE).
Select Advanced Setup > Routing > RIP The following page opens:

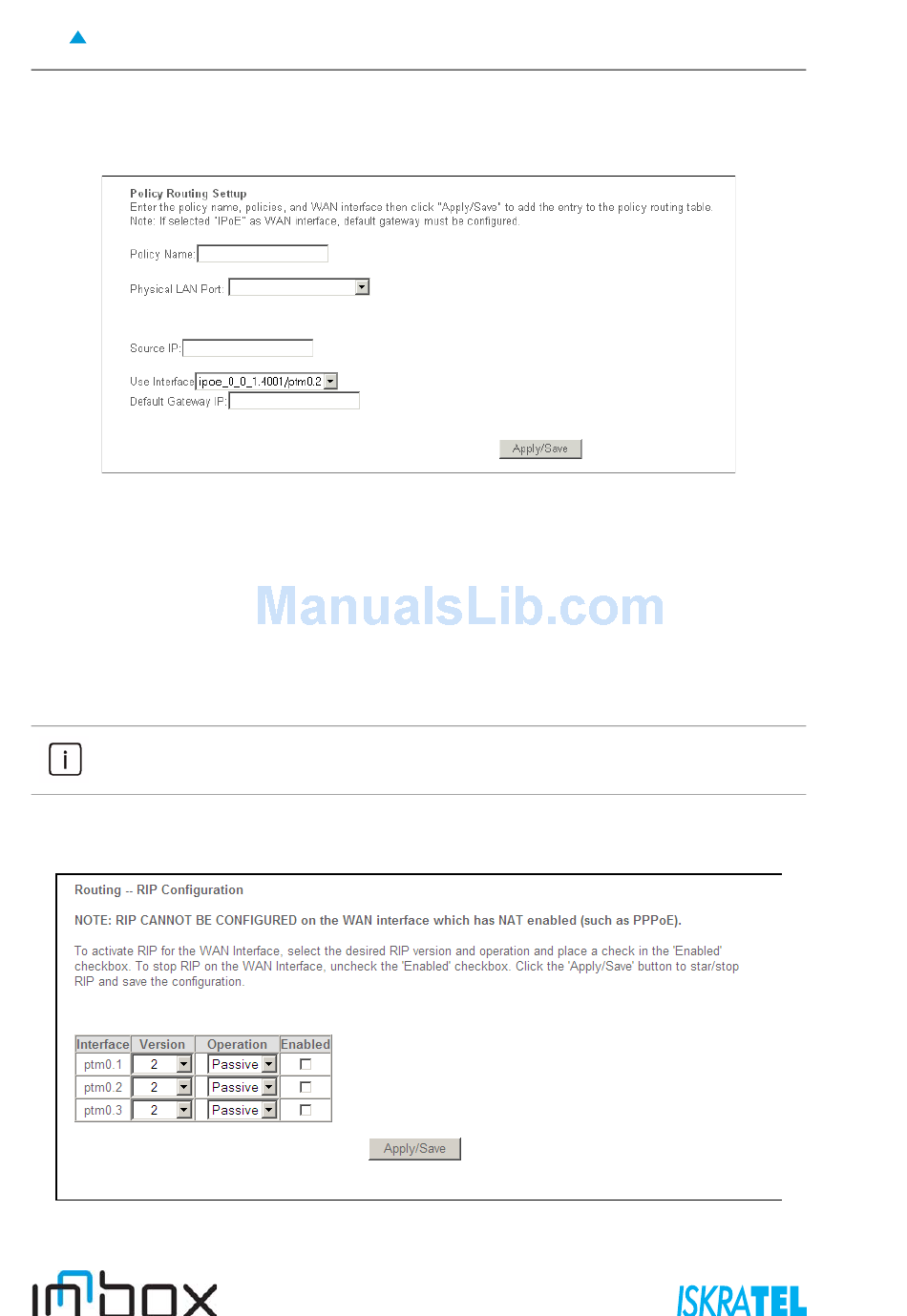

Figure 3-40: Policy Routing Setup
Figure 3-41: Routing - RIP Configuration
