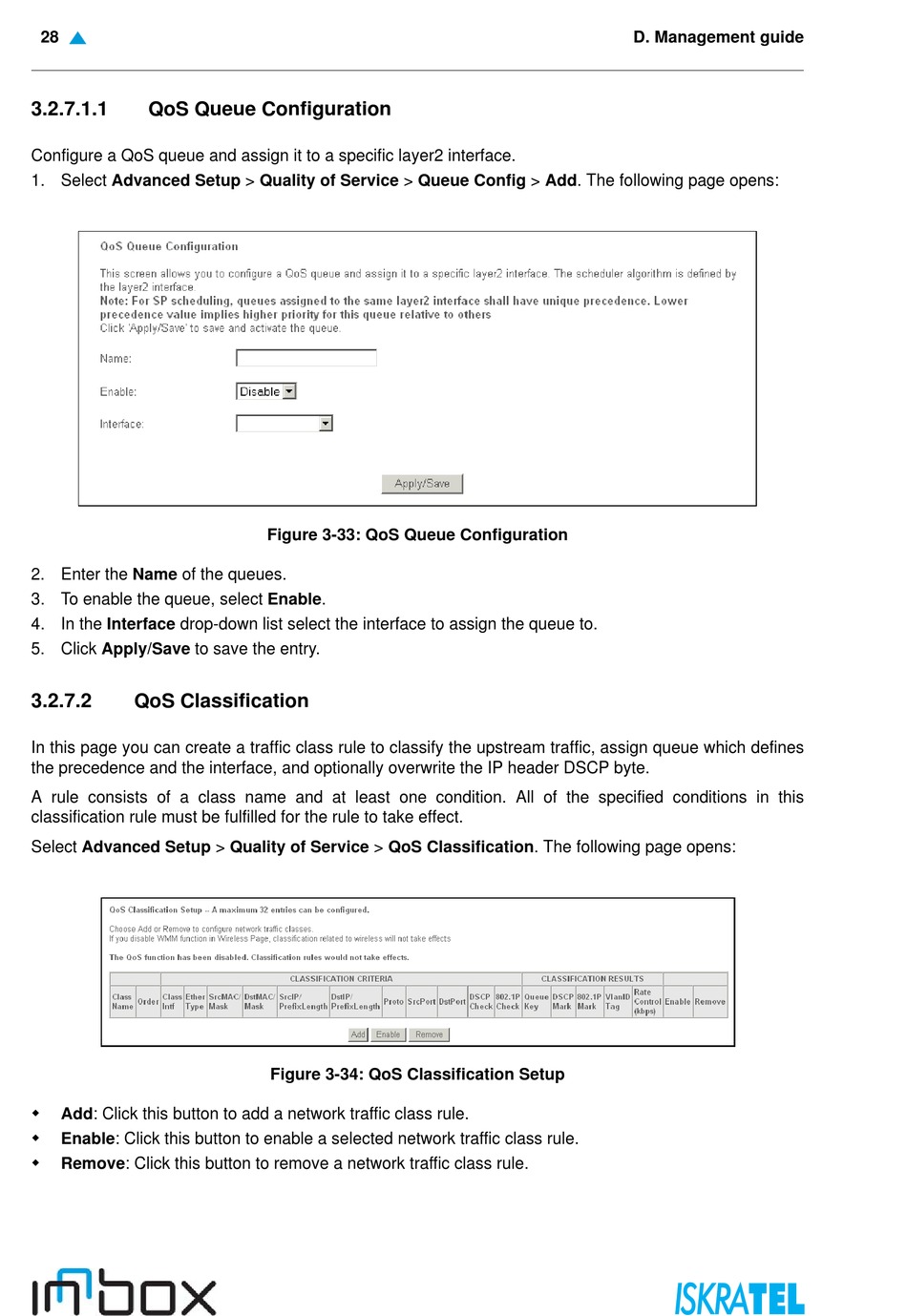

3.2.7.1.1

QoS Queue Configuration

Configure a QoS queue and assign it to a specific layer2 interface.
1. Select Advanced Setup > Quality of Service > Queue Config > Add. The following page opens:
2. Enter the Name of the queues.
3. To enable the queue, select Enable.
4. In the Interface drop-down list select the interface to assign the queue to.
5. Click Apply/Save to save the entry.
3.2.7.2

QoS Classification

In this page you can create a traffic class rule to classify the upstream traffic, assign queue which defines
the precedence and the interface, and optionally overwrite the IP header DSCP byte.
A rule consists of a class name and at least one condition. All of the specified conditions in this
classification rule must be fulfilled for the rule to take effect.
Select Advanced Setup > Quality of Service > QoS Classification. The following page opens:

Add: Click this button to add a network traffic class rule.

Enable: Click this button to enable a selected network traffic class rule.

Remove: Click this button to remove a network traffic class rule.
Figure 3-33: QoS Queue Configuration
Figure 3-34: QoS Classification Setup
