24
3.2.6.1

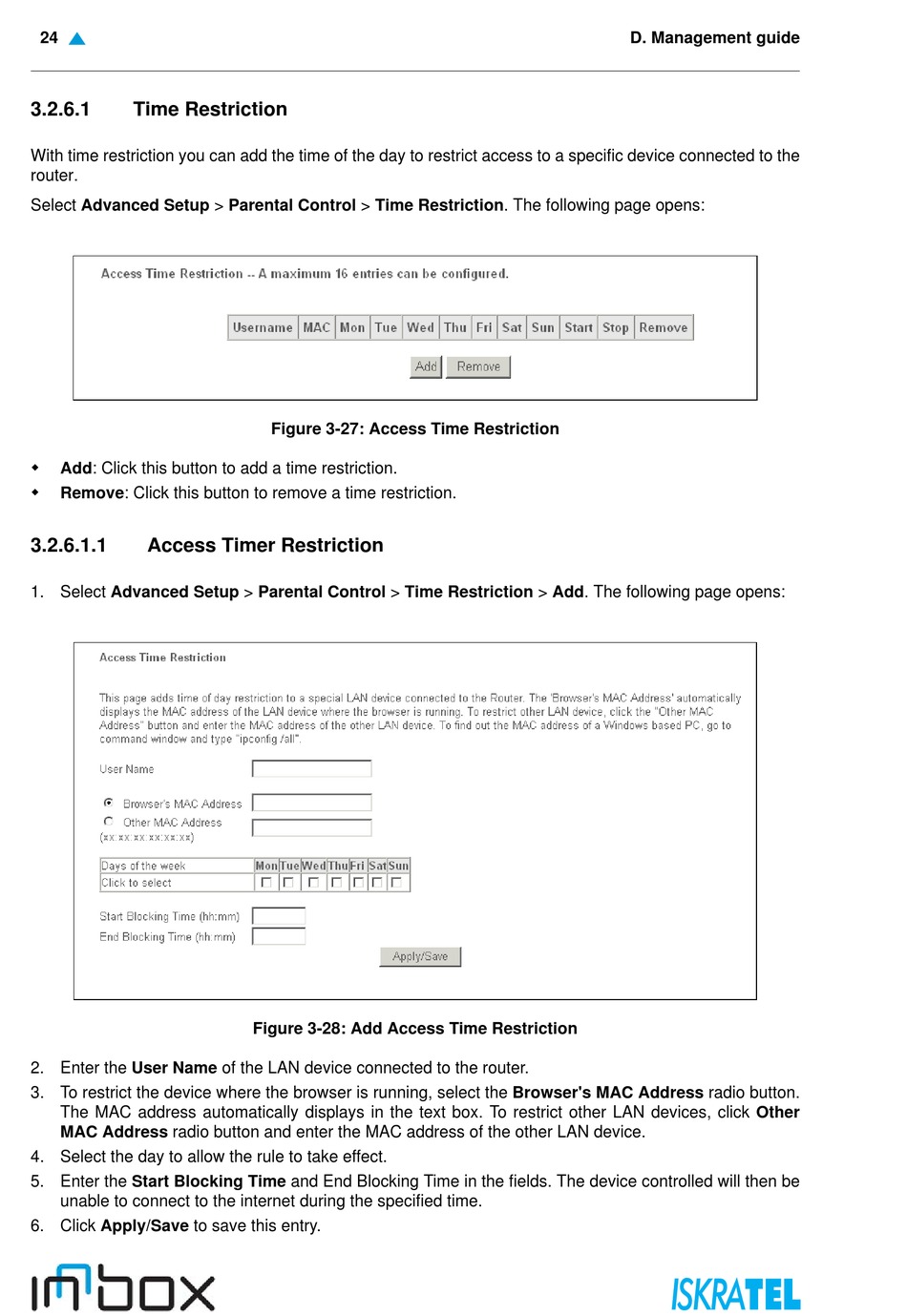

Time Restriction

With time restriction you can add the time of the day to restrict access to a specific device connected to the
router.
Select Advanced Setup > Parental Control > Time Restriction. The following page opens:
Add: Click this button to add a time restriction.
Remove: Click this button to remove a time restriction.
3.2.6.1.1

Access Timer Restriction

1. Select Advanced Setup > Parental Control > Time Restriction > Add. The following page opens:
2. Enter the User Name of the LAN device connected to the router.
3. To restrict the device where the browser is running, select the Browser's MAC Address radio button.
The MAC address automatically displays in the text box. To restrict other LAN devices, click Other
MAC Address radio button and enter the MAC address of the other LAN device.
4. Select the day to allow the rule to take effect.
5. Enter the Start Blocking Time and End Blocking Time in the fields. The device controlled will then be
unable to connect to the internet during the specified time.
6. Click Apply/Save to save this entry.
Figure 3-27: Access Time Restriction
Figure 3-28: Add Access Time Restriction
D. Management guide
