Mac Filtering - Iskratel Innbox V50-U Management Manual

22
3.2.5.2

MAC Filtering

The feature allows you to control access to the Internet by users on your local network based on their MAC
address.
Select Advanced Setup > Security > MAC Filtering. The following page opens:

Change Policy: There are two policies for the MAC filters: FORWARDED and BLOCKED. Select the
Change checkbox and click the Change Policy button to change from one policy to another. When you
set FORWARDED, it means that all MAC layer frames will be forwarded except those matching with
any of the specified rules in the table (shown in Figure 4-35). While BLOCKED means that all MAC
layer frames will be blocked except those matching with any of the specified rules in the preceding
table.

Add: Click this button to add a new MAC filter.

Remove: Click this button to remove a MAC filter.

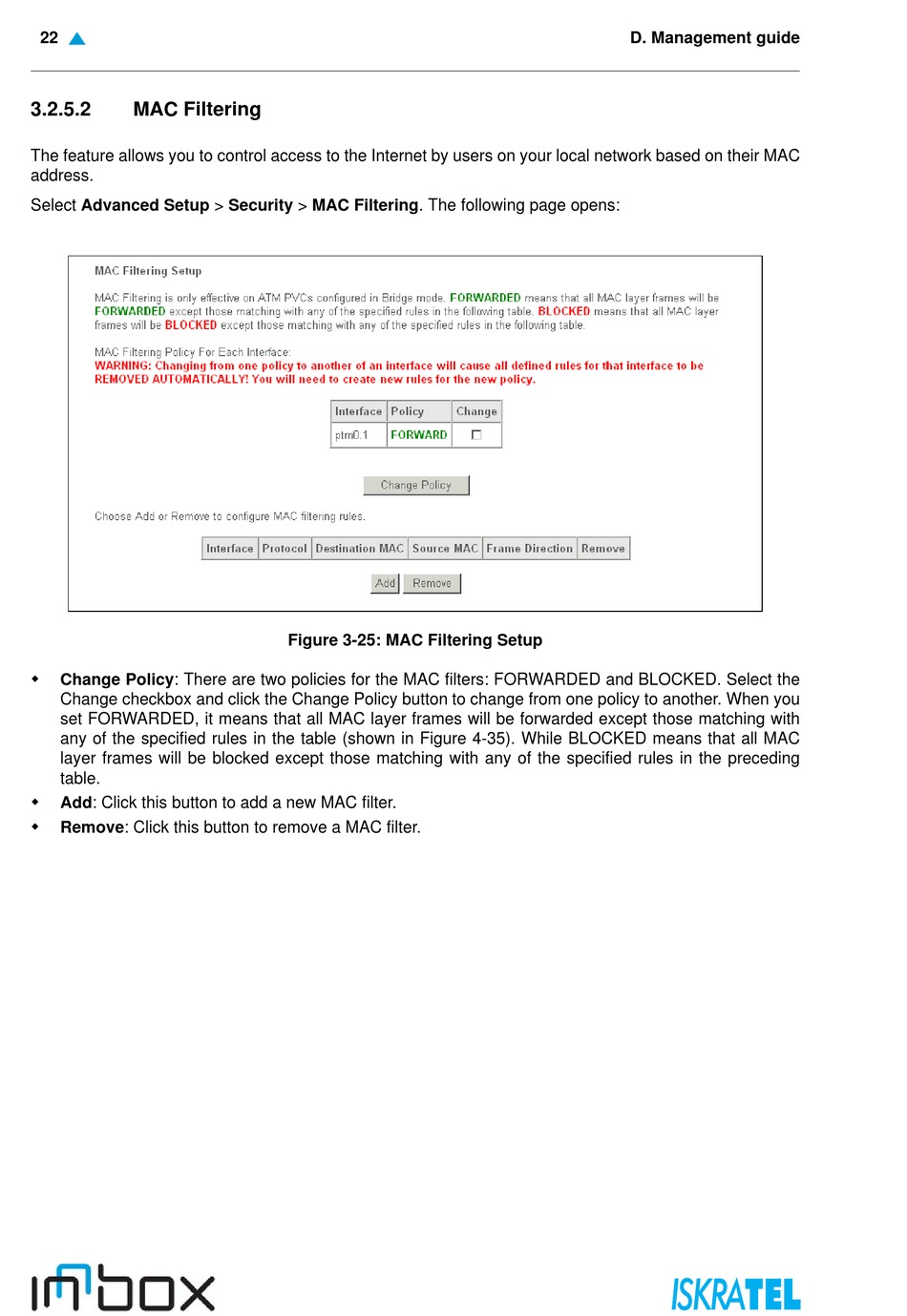

Figure 3-25: MAC Filtering Setup
