Incoming Ip Filtering - Iskratel Innbox V50-U Management Manual

20
Note: When you add an Outgoing IP Filtering entry, you must configure at least one
condition on the preceding page except the Filter name. If you leave the Protocol blank,
it means that the rule is effective to all protocols, if you leave the Source IP Address
and/or Destination IP Address blank, it suggests that all Source IP Addresses and/or
Destination IP Addresses are controlled by the rule, if you leave the Source Port and/or
Destination Port blank, it suggests that all Source Ports and/or Destination Ports are
controlled by the rule.
3.2.5.1.2

Incoming IP Filtering

The Incoming IP Filtering feature allows some IP traffic from WAN to access some local addresses. By
default, all incoming IP traffic from the WAN is blocked when the firewall is enabled. However, some IP
traffic can be ACCEPTED by setting up filters.
Select Advanced Setup > Security > IP Filtering > Incoming. The following page opens.

Add: Click this button to add an incoming IP filter.

Remove: Click this button to remove an incoming IP filter.

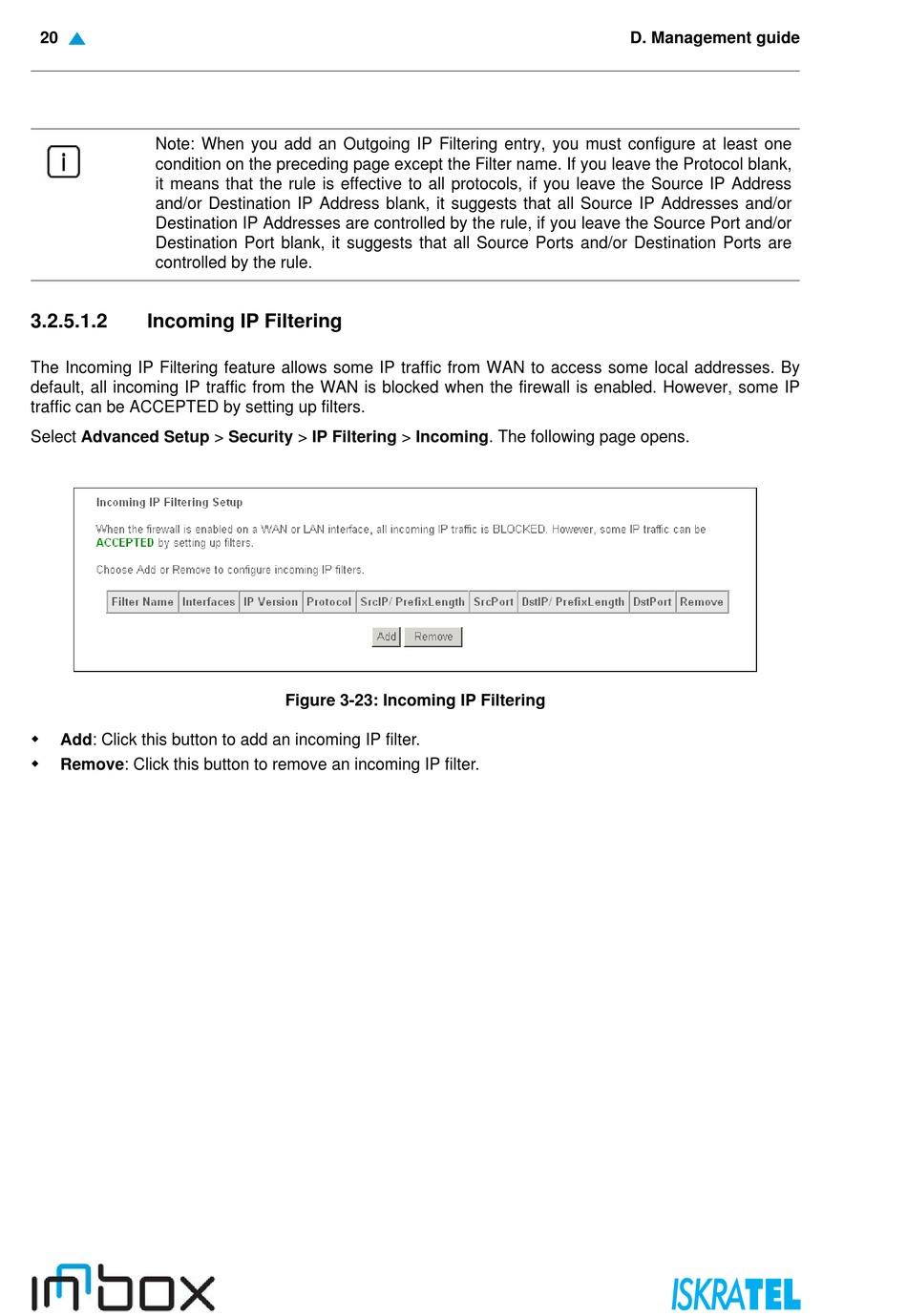

Figure 3-23: Incoming IP Filtering
