Outgoing IP filtering

3.2.5.1.1 Outgoing IP filtering
The Outgoing IP Filtering feature allows you to control some IP traffic from LAN to access specific
addresses. By default, all outgoing IP traffic from LAN is allowed, but some IP traffic can be BLOCKED by
setting up filters.

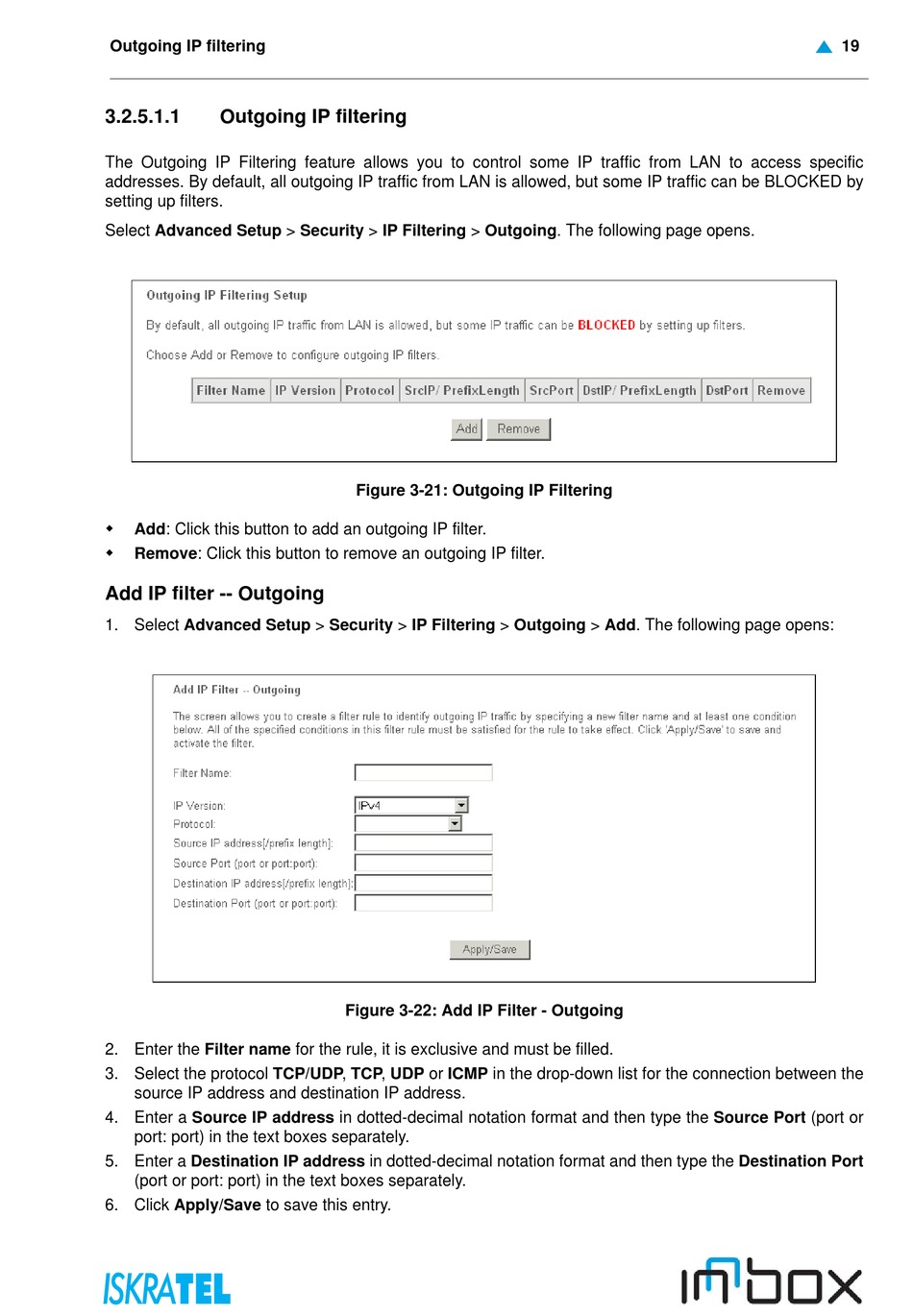

Select Advanced Setup > Security > IP Filtering > Outgoing. The following page opens.

Add: Click this button to add an outgoing IP filter.

Remove: Click this button to remove an outgoing IP filter.
Add IP filter -- Outgoing
1. Select Advanced Setup > Security > IP Filtering > Outgoing > Add. The following page opens:
2. Enter the Filter name for the rule, it is exclusive and must be filled.
3. Select the protocol TCP/UDP, TCP, UDP or ICMP in the drop-down list for the connection between the
source IP address and destination IP address.
4. Enter a Source IP address in dotted-decimal notation format and then type the Source Port (port or
port: port) in the text boxes separately.
5. Enter a Destination IP address in dotted-decimal notation format and then type the Destination Port
(port or port: port) in the text boxes separately.
6. Click Apply/Save to save this entry.
Figure 3-21: Outgoing IP Filtering
Figure 3-22: Add IP Filter - Outgoing
