Internal Port Start: The base number of internal ports. You can type a service port or leave it blank.

Internal Port End: The end number of internal ports. You can type a service port or leave it blank.

Server IP Address: The IP Address of the PC providing the service application.

WAN Interface: The WAN service interface providing the service application.

Add: Click this button to add a virtual server.

Remove: Click this button to remove a virtual server.
3.2.4.1.1

NAT -- Virtual servers

1. Select Advanced Setup > NAT > Virtual Servers > Add. The following page opens:
2. Select the interface which you want to use from the drop-down list.
3. Select the service which you want to use from the drop-down list. If the list does not have the service
you need, type the name of the custom service in the text box.
4. Enter the IP Address of the computer in the Server IP Address text box.
5. Enter the External Port Start, External Port End, Internal Port Start and Internal Port End in the
table, and then select the protocol used for this virtual server: TCP, UDP or All.
6. Click Apply/Save to enable virtual server.
Note: If you select the service from the drop-down list, the External Port Start, External
Port End, Internal Port Start, Internal Port End and the Protocol will be added in the
table automatically. You only need to enter the server IP address for the virtual server.

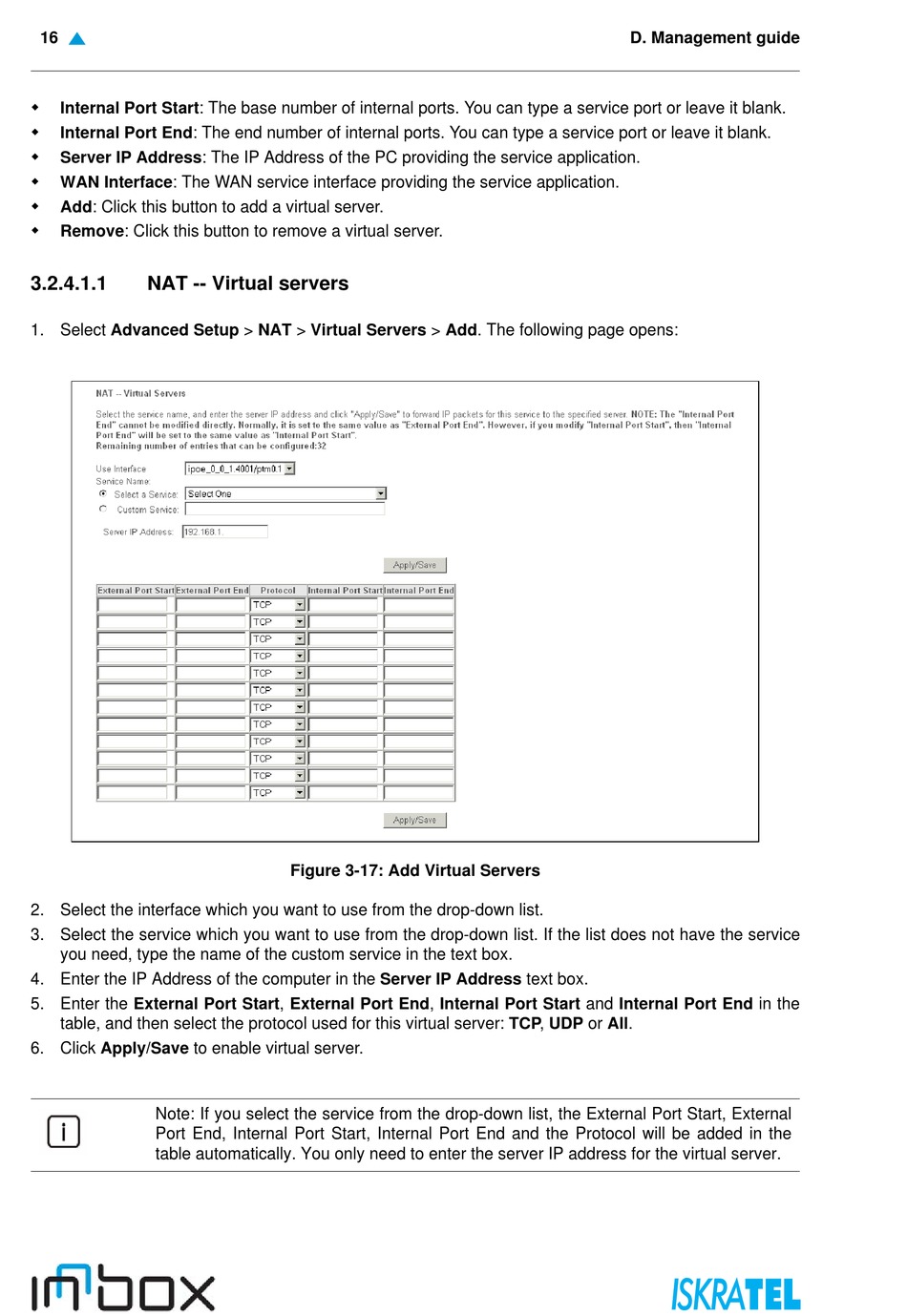

Figure 3-17: Add Virtual Servers
