3.2.3

LAN

You can configure Local Area Network (LAN) in this page. Select Advanced Setup > LAN. The following
page opens:

Configure the device IP Address and Subnet Mask for LAN Interface.
• IP Address: Enter the device local IP Address, then you can access to the Web-based Utility via
the IP Address, the default value is 192.168.1.1.
• Subnet Mask: Enter the device Subnet Mask, the default value is 255.255.255.0.

Enable IGMP Snooping: If you select the option, select the IGMP Mode: Standard Mode or
Blocking Mode.

DHCP Server: These settings allow you to configure the device's Dynamic Host Configuration
Protocol (DHCP) server function. The DHCP server is enabled by default for the device Ethernet LAN
interface. DHCP service will supply IP settings to computers which are configured to automatically
obtain IP settings that are connected to the device though the Ethernet port. When the device is set for
DHCP, it becomes the default gateway for DHCP client connected to it. Keep in mind that if you
change the IP address of the device, you must change the range of IP addresses in the pool used for
DHCP on the LAN.
• Start IP Address: Enter a value for the DHCP server to start with when issuing IP addresses.
Because the default IP address for the device is 192.168.1.1, the default Start IP Address is
192.168.1.2, and the Start IP Address must be 192.168.1.2 or greater, but smaller than
192.168.1.254.
• End IP Address: Enter a value for the DHCP server to end with when issuing IP addresses. The
End IP Address must be smaller than 192.168.1.254. The default End IP Address is
192.168.1.254.

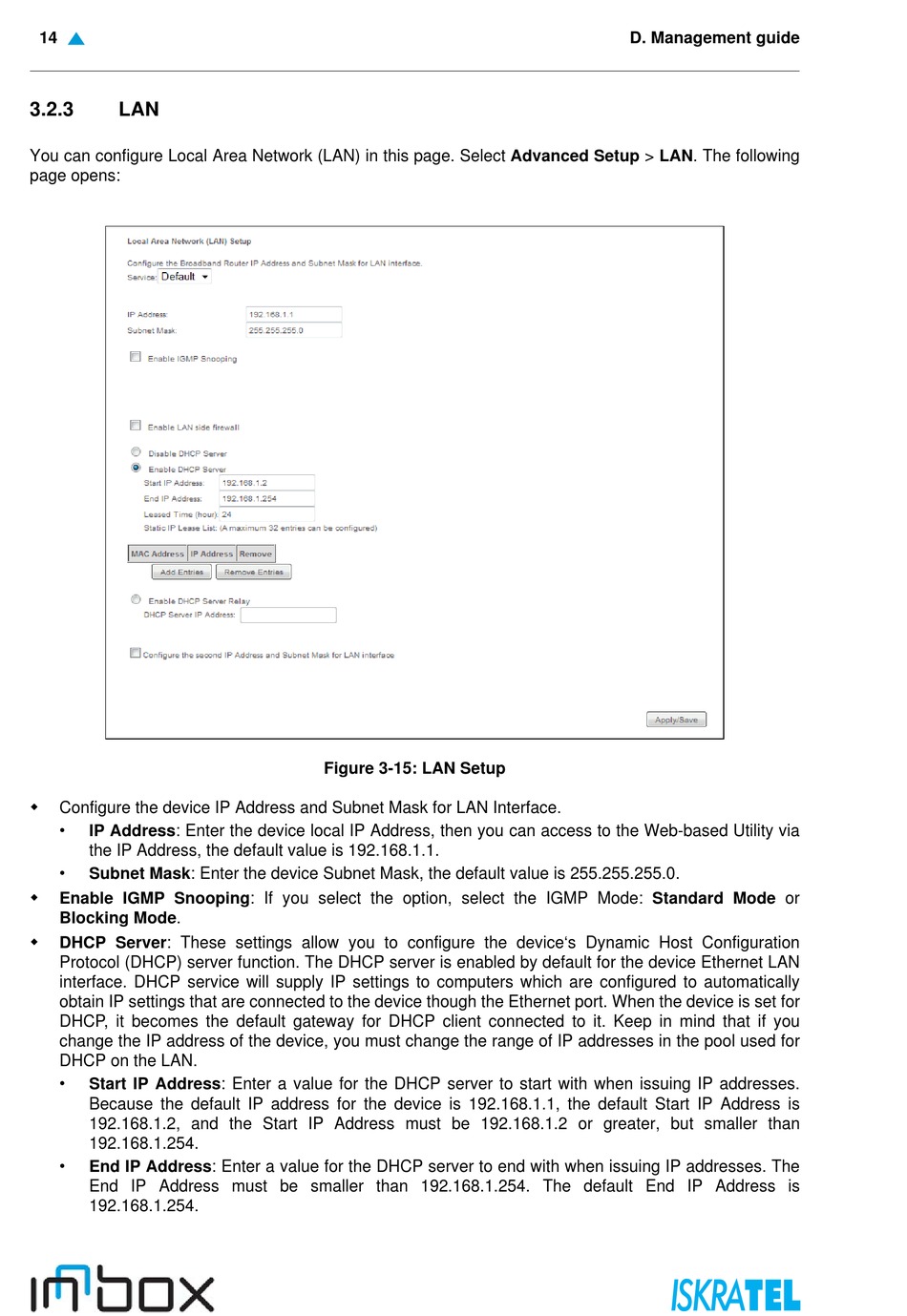

Figure 3-15: LAN Setup
