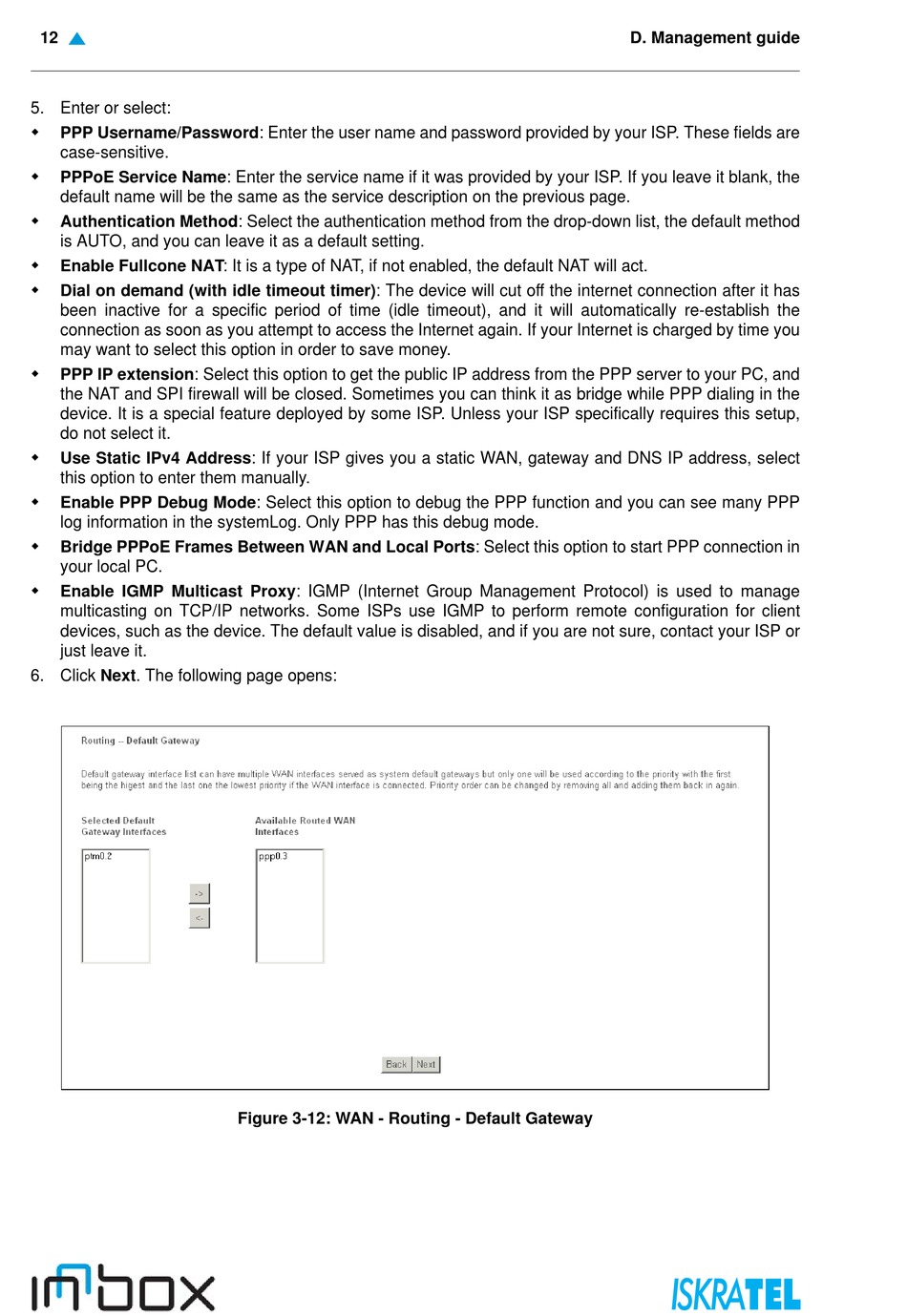

Iskratel Innbox V50-U Management Manual page 20

12
5. Enter or select:

PPP Username/Password: Enter the user name and password provided by your ISP. These fields are
case-sensitive.

PPPoE Service Name: Enter the service name if it was provided by your ISP. If you leave it blank, the
default name will be the same as the service description on the previous page.

Authentication Method: Select the authentication method from the drop-down list, the default method
is AUTO, and you can leave it as a default setting.

Enable Fullcone NAT: It is a type of NAT, if not enabled, the default NAT will act.

Dial on demand (with idle timeout timer): The device will cut off the internet connection after it has
been inactive for a specific period of time (idle timeout), and it will automatically re-establish the
connection as soon as you attempt to access the Internet again. If your Internet is charged by time you
may want to select this option in order to save money.

PPP IP extension: Select this option to get the public IP address from the PPP server to your PC, and
the NAT and SPI firewall will be closed. Sometimes you can think it as bridge while PPP dialing in the
device. It is a special feature deployed by some ISP. Unless your ISP specifically requires this setup,
do not select it.

Use Static IPv4 Address: If your ISP gives you a static WAN, gateway and DNS IP address, select
this option to enter them manually.

Enable PPP Debug Mode: Select this option to debug the PPP function and you can see many PPP
log information in the systemLog. Only PPP has this debug mode.

Bridge PPPoE Frames Between WAN and Local Ports: Select this option to start PPP connection in
your local PC.

Enable IGMP Multicast Proxy: IGMP (Internet Group Management Protocol) is used to manage
multicasting on TCP/IP networks. Some ISPs use IGMP to perform remote configuration for client
devices, such as the device. The default value is disabled, and if you are not sure, contact your ISP or
just leave it.
6. Click Next. The following page opens:
Figure 3-12: WAN - Routing - Default Gateway
