WAN Service Interface configuration
2. Select a layer 2 interface for this service and click Next. The following page opens:
3. Select the WAN service type: PPP over Ethernet (PPPoE), IP over Ethernet or Bridging. If your ISP
provides a PPPoE connection, select PPPoE option. You can create a service name for the Service
Description or leave a default name.
4. Click Next. The following page opens:

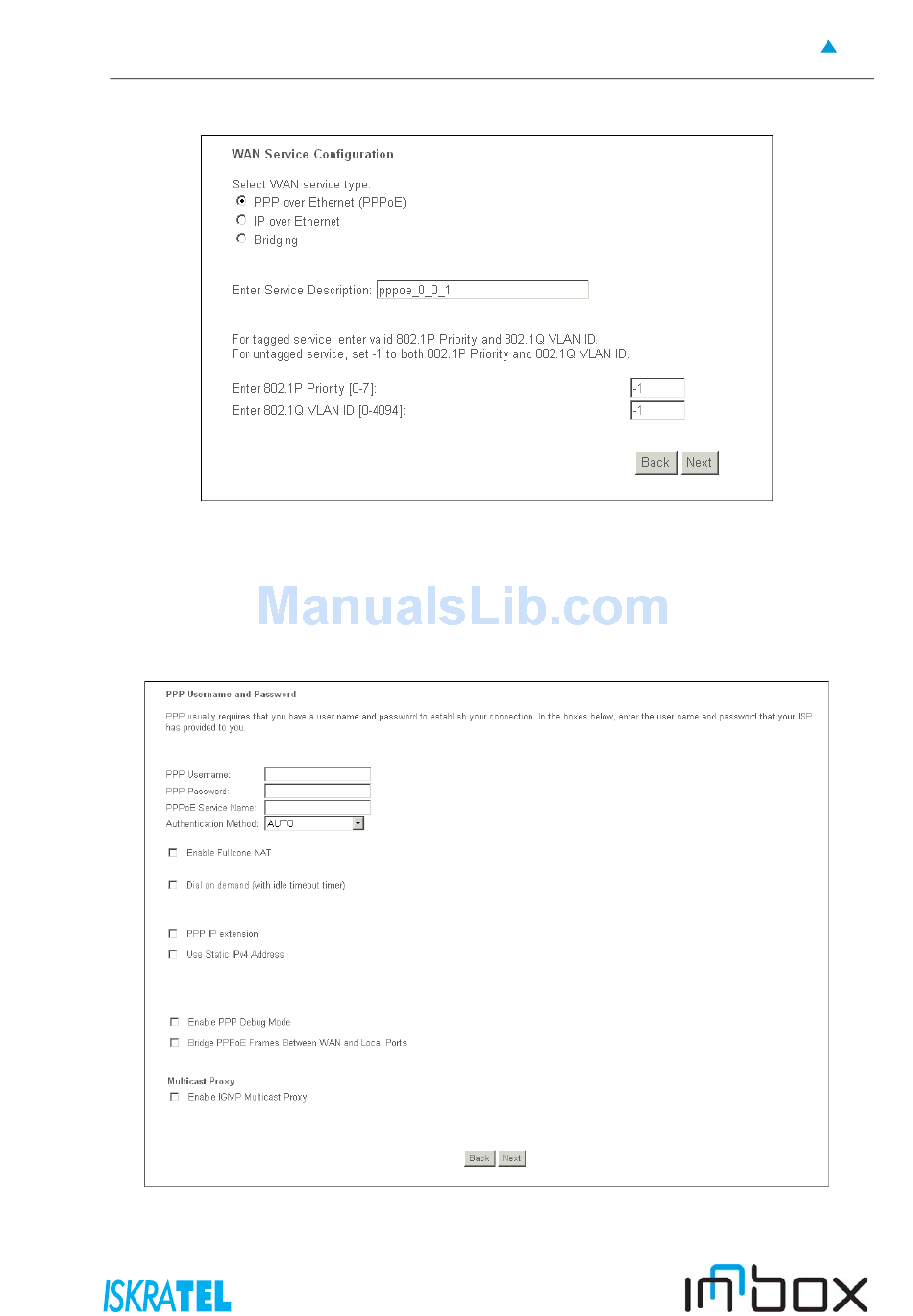

Figure 3-10: WAN Service Configuration - service type
Figure 3-11: WAN - PPP Username and Password
11
