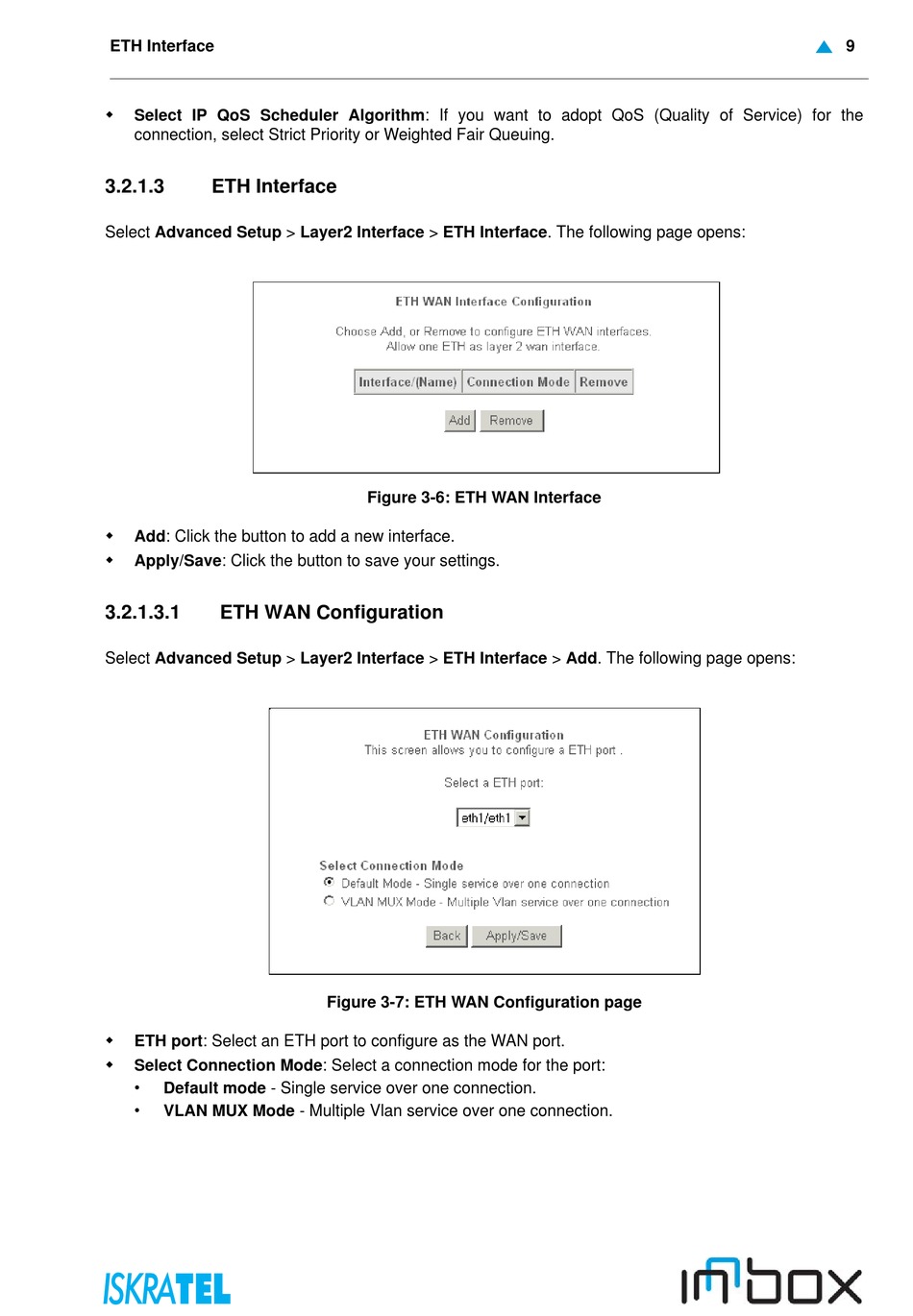

Eth Interface; Eth Wan Configuration - Iskratel Innbox V50-U Management Manual

ETH Interface


Select IP QoS Scheduler Algorithm: If you want to adopt QoS (Quality of Service) for the
connection, select Strict Priority or Weighted Fair Queuing.
3.2.1.3 ETH Interface
Select Advanced Setup > Layer2 Interface > ETH Interface. The following page opens:

Add: Click the button to add a new interface.

Apply/Save: Click the button to save your settings.
3.2.1.3.1

ETH WAN Configuration

Select Advanced Setup > Layer2 Interface > ETH Interface > Add. The following page opens:

ETH port: Select an ETH port to configure as the WAN port.

Select Connection Mode: Select a connection mode for the port:
• Default mode - Single service over one connection.
• VLAN MUX Mode - Multiple Vlan service over one connection.
Figure 3-6: ETH WAN Interface
Figure 3-7: ETH WAN Configuration page
