ATM PVC configuration

3.2.1.1.1 ATM PVC configuration
Select Advanced Setup > Layer2 Interface > ATM Interface > Add.

VPI/VCI: the VPI and VCI values provided by your ISP. Do not change them unless it was required by
your ISP.

DSL Latency: Select a DSL latency. The options include Path 0 and Path1.

DSL Link Type: Select a DSL Link Type which is provided by your ISP. The options include EoA (it is
for PPPoE, IPoE, and Bridge), PPPoA (PPP over ATM) and IPoA (IP over ATM).

Connection Mode: Select the connection mode for EoA option of DSL Link Type. The options include
Default mode for single service over one connection, VLAN MUX Mode for multiple Vlan service over
one connection, and MSC Mode for Multiple Service over one connection.

Service Category: Select the type of the service assigned by your ISP in the drop-down list. The
default type is UBR Without PCR.

Encapsulation Mode: The mode of the data processing over the Link Type you have selected. Uses
the default setting, if you are not sure.

Select IP QoS Scheduler Algorithm: If you want to adopt QoS (Quality of Service) for the
connection, select Strict Priority or Weighted Fair Queuing.
Note: Enabling packet level QoS for PVC improves performance for selected classes of
applications. While QoS consumes system resources; therefore the number of PVC(s)
will be reduced. Besides this, it cannot be set for the connection type of CBR and Real-
time VBR. If you select the QoS service, the Quality of Service menu will be added to
the Web-based Utility, the detailed configuration will be described in

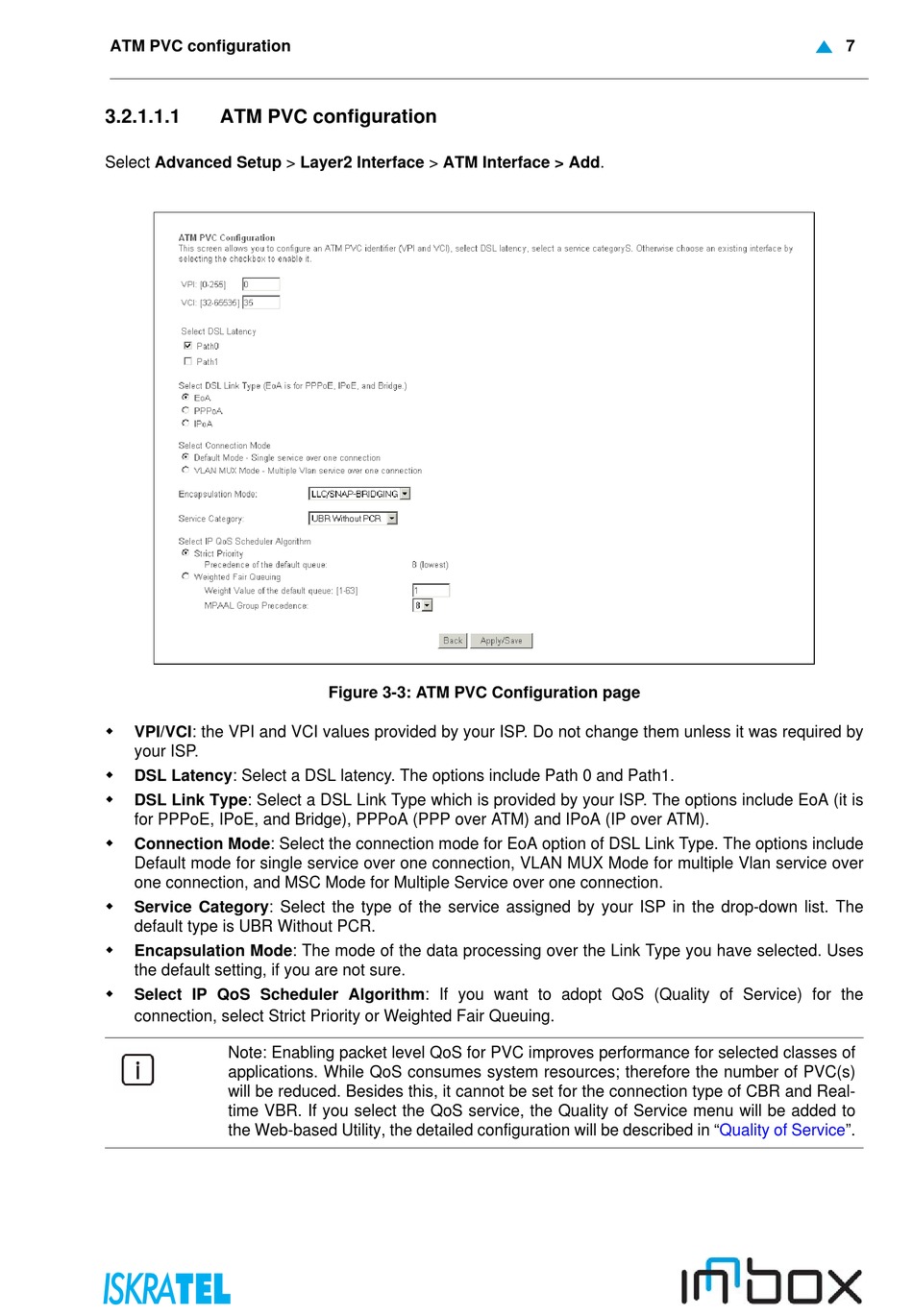

Figure 3-3: ATM PVC Configuration page
7
"Quality of Service".
