2.1

Navigation

The management interface enables you to view your router settings, edit and configure them.
The interface is divided into two frames:

left frame - navigation tree
The navigation tree is intended for navigating and accessing the router configuration pages.
The elements listed in the tree are hyperlinks. When you click a link, a corresponding configuration
page will be displayed in the right frame.

right frame - display area
Displays a configuration page for the selected element.
3

WEB management interface description

This section describes the web management interface, configuration options and features that you can
configure.
The main areas of configuration are divided into the following groups of elements:

Device info

Advanced Setup

Wireless

Voice

Diagnostics

Management

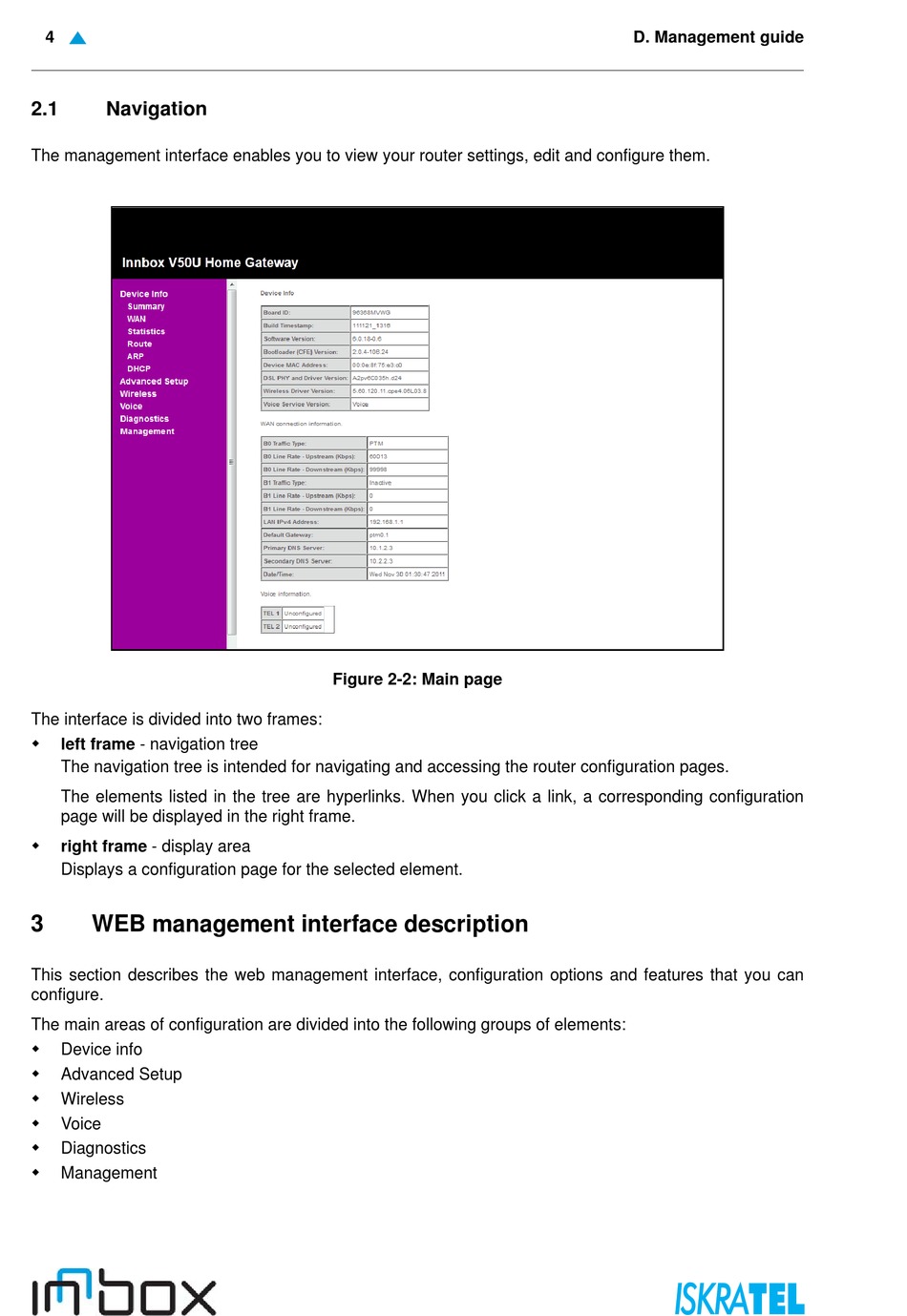

Figure 2-2: Main page
