1.4.2

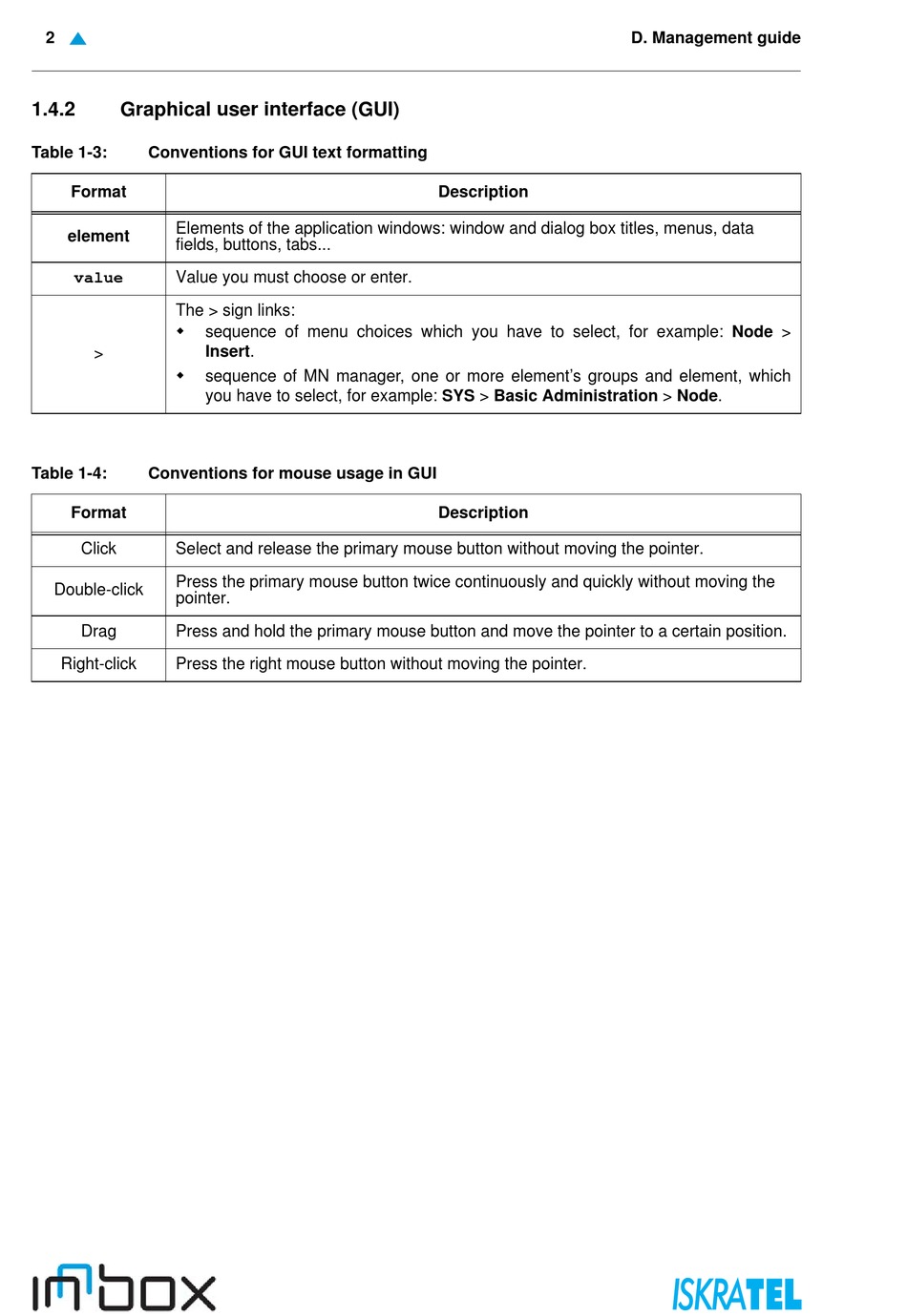

Graphical user interface (GUI)

Table 1-3: Conventions for GUI text formatting
Format
Elements of the application windows: window and dialog box titles, menus, data
element
fields, buttons, tabs...
Value you must choose or enter.
value
The > sign links:

>

Table 1-4: Conventions for mouse usage in GUI
Format
Click Select and release the primary mouse button without moving the pointer.
Press the primary mouse button twice continuously and quickly without moving the
Double-click
pointer.
Drag Press and hold the primary mouse button and move the pointer to a certain position.
Right-click Press the right mouse button without moving the pointer.
sequence of menu choices which you have to select, for example: Node >
Insert.
sequence of MN manager, one or more element's groups and element, which
you have to select, for example: SYS > Basic Administration > Node.
Description
Description
