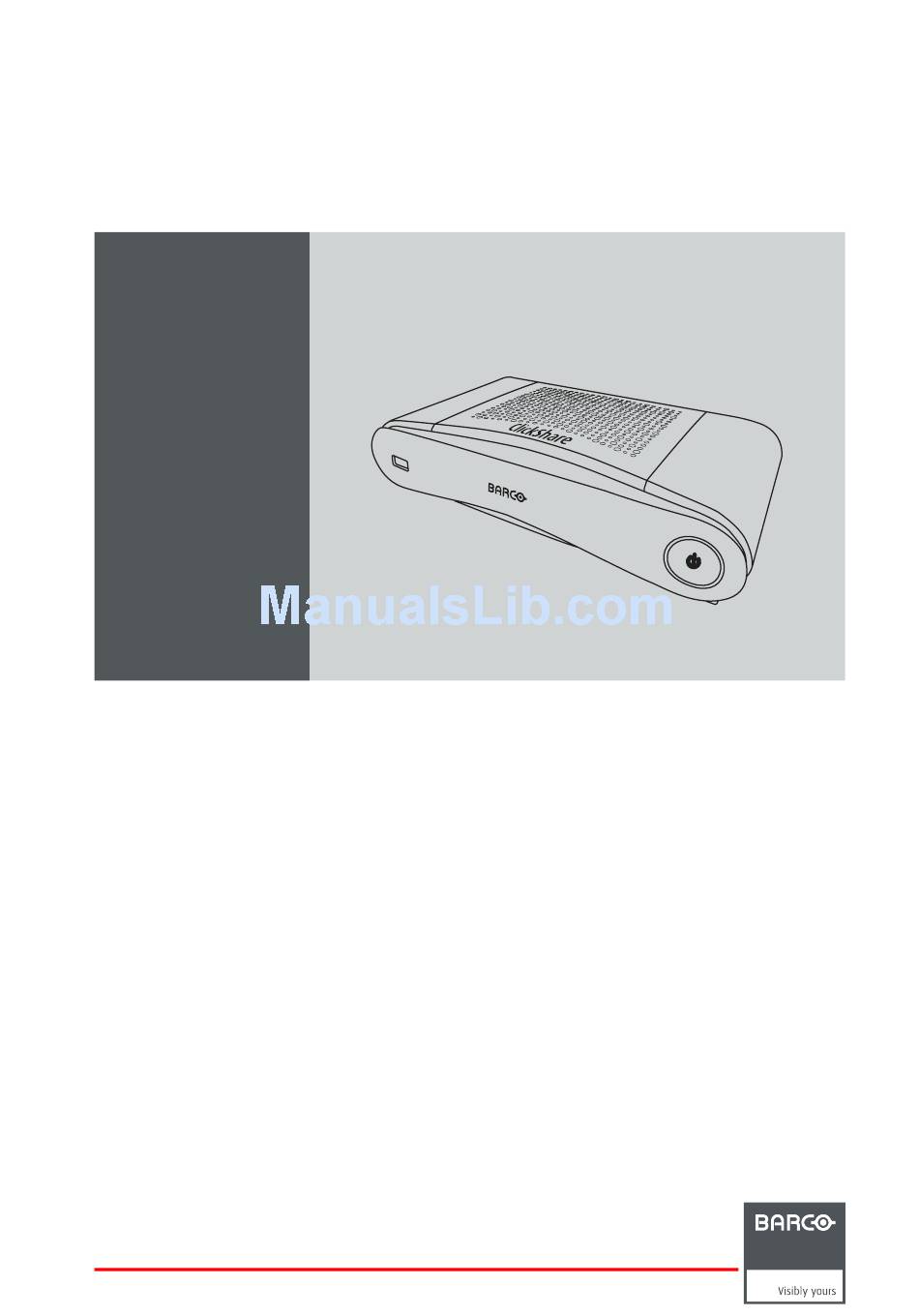

CS-100
Installation manual
R5900022/01
16/02/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco CS-100

Summary of Contents for Barco CS-100

  • Page 1 CS-100 Installation manual R5900022/01 16/02/2016...
  • Page 2 Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com Printed in China...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
  • Page 4 Software, or any portion thereof, (i) that is based on specifications, drawings, models or other data furnished by you or, (ii) that is not provided by Barco or, (iii) that is modified, in spite of the prohibition for you to modify the software or, (iv) to the extent that you continue allegedly infringing activity after having been provided modifications that avoid the alleged infringement, or (v) where the use...
  • Page 5 Software, including the U.S. Export Administration Regulations, as well as end-user, end-use, and destination restrictions issued by the U.S. or other governments. 11. Barco shall be entitled to sub-contract all or any of Barco’s obligations hereunder to a third party and/or any of Barco’s affiliated companies.
  • Page 6 Barco sees fit, including but not limited to providing services to you / your organization, allowing third party to access to such Functional Information and/or to provide services to you / your organization . You hereby explicitly give consent that Barco may gather, access, preserve, and/or disclose the personal data you provide to us (e.g.
  • Page 7 Open Source component Open Source License alsa-plugins http://www.gnu.org/licenses/gpl.html http://www.gnu.org/licenses/lgpl.html avahi http://www.gnu.org/licenses/lgpl.html Bootstrap (3.1.1) https://github.com/twbs/bootstrap/blob/master/LICENSE bootstrap-dialog https://github.com/twbs/bootstrap/blob/master/LICENSE bootstrap-slider.js v2.0.0 http://www.apache.org/licenses/LICENSE-2.0 busybox http://opensource.org/licenses/GPL-2.0 Chart.js https://github.com/nnnick/Chart.js/blob/master/LICENSE.md Datepicker for Bootstrao (1,6,0-dev) http://www.apache.org/licenses/LICENSE-2.0 dropbear http://opensource.org/licenses/mit-license.php fakeroot http://www.gnu.org/licenses/gpl.html coreutils http://www.gnu.org/licenses/gpl.html crda http://opensource.org/licenses/ISC cron http://opensource.org/licenses/ISC Crypto++ http://www.cryptopp.com/License.txt dbus http://www.gnu.org/licenses/old-licenses/gpl-2.0.html dhcpd...
  • Page 8 Open Source component Open Source License http://opensource.org/licenses/BSD-3-Clause Jasny Bootstrap (3.1.3) http://www.apache.org/licenses/LICENSE-2.0 jQuery Form Plugin (3.51.0-2014.06.20) https://github.com/malsup/form#copyright-and-license jQuery JavaScript Library (1.11.3) https://jquery.org/license/ jQuery Password Strength plugin for https://github.com/ablanco/jquery.pwstrength.bootstrap/blob/master/GPL-LICENSE.txt Twitter Bootstrap https://github.com/ablanco/jquery.pwstrength.bootstrap/com- mit/19480555e8c7c2f417d78a78dac63056fa221f6a jQuery Upload File Plugin (4.0.8) https://github.com/hayageek/jquery-upload-file jQuery Validation Plugin (1.13.1) https://opensource.org/licenses/MIT kobs-ng http://www.gnu.org/licenses/gpl.html...
  • Page 9 Open Source component Open Source License libresample http://www.gnu.org/licenses/lgpl.html libsm6 http://metadata.ftp-master.debian.org/changelogs//main/libs/libsm/libsm_1.2.2-1_copyright libstdc++6 http://www.gnu.org/licenses/gpl.html libswscale http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html libtalloc2 http://www.gnu.org/licenses/lgpl.html libusb http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html libva Copyright (c) 2011, Advanced Micro Devices, Inc. All rights reserved. libX11 http://opensource.org/licenses/MIT libXdamage http://opensource.org/licenses/MIT libXext http://opensource.org/licenses/MIT libXfixes http://opensource.org/licenses/MIT libXinerama http://opensource.org/licenses/MIT libxml2 http://opensource.org/licenses/MIT libXrender http://opensource.org/licenses/MIT...
  • Page 10 Open Source component Open Source License pulseaudio http://www.gnu.org/licenses/lgpl.html http://doc.qt.io/qt-5/lgpl.html read-edid Free license Respond.js https://github.com/scottjehl/Respond/blob/master/LICENSE-MIT rockbox-imxtools http://www.gnu.org/licenses/old-licenses/gpl-2.0.html rsync (<3.0.0) http://www.gnu.org/licenses/old-licenses/gpl-2.0.html rsync (>=3.0.0) http://www.gnu.org/licenses/gpl.html rsyslog http://www.gnu.org/licenses/gpl.html splashutils http://www.gnu.org/licenses/gpl.html sprintf-js https://opensource.org/licenses/BSD-3-Clause http://srp.stanford.edu/license.txt sscep https://github.com/certnanny/sscep/blob/master/COPYRIGHT strace http://opensource.org/licenses/BSD-3-Clause sysfsutils http://www.gnu.org/licenses/old-licenses/gpl-2.0.html sysvinit http://www.gnu.org/licenses/old-licenses/gpl-2.0.html tcpdump http://opensource.org/licenses/BSD-3-Clause Timepicker Component for Twitter Bootstrap https://opensource.org/licenses/MIT ttf-arphic-uming...
  • Page 11 Radio Frequency (RF) Exposure Information The radiated output power of the Barco Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Barco Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.
  • Page 12 Informations concernant l’exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil Barco est inférieure à la limite d’exposition aux fréquences radio d’Industry Canada (IC). Utilisez l’appareil de sans fil Barco de façon à minimiser les contacts humains lors du fonctionnement normal.

  • Page 13: Table Of Contents

    2. CS-100 Specifications ................
  • Page 14 Table of contents R5900022 CS-100 16/02/2016...

  • Page 15: Introduction To The Installation Guide

    API Guide R5900018 A printed copy of the Safety Guide and an electronic version of the user and installation guide on USB stick is included in the CS-100 box at purchase. Always check for the latest version of the manual on www.barco.com/clickshare...
  • Page 16 Menu items are indicated in italic. • Step related notes, tips, warnings or cautions are printed in italic. • Procedure related notes, tips, warnings or cautions are printed in bold between 2 lines preceded by the corresponding icon. R5900022 CS-100 16/02/2016...

  • Page 17: Cs-100 Specifications

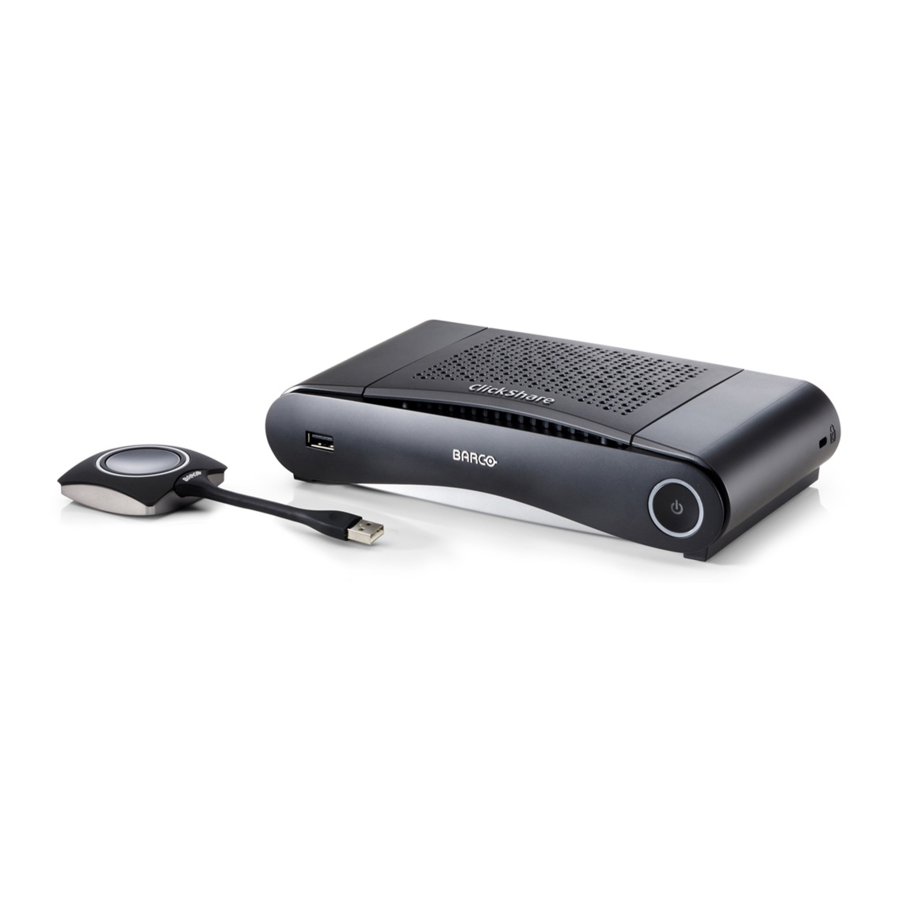

    At the moment 3 different sets are available on the market. Each set is sold in its specific region and it can only be used in that specific region because of WiFi regulations. Components CS-100 set A standard CS-100 set consists of a Base Unit and 1 Buttons. If needed, you can buy additional Buttons and a tray to store the Buttons. Image 2-1...

  • Page 18: Cs-100 Specifications

    2. CS-100 Specifications CS-100 specifications Base Unit Weight 600g / 1.32lbs Dimensions (HxWxD) 205mm x 115mm x 45mm (Min.) / 8.1” x 4.5” x 1.8” (Min.) Power consumption Operation: 6W (typical) / 18W (max) Standby: 2.6W (ECO standby) / 0.4W (Deep standby)

  • Page 19: About The Base Unit

    firmware are up to date. If not, the Base Unit updates the software and/or firmware. To update the Base Unit software, download the latest version of the software from the Barco website. Copy the file on a USB stick and plug it into the USB port of the Base Unit.

  • Page 20: Power Button

    The antenna is built-in in the CS-100. Bottom layout of the Base Unit The serial number label containing the Barco part number, the revision number, production date (week-year) and the serial number. The product label with the applicable certification logos.

  • Page 21: About The Button

    2. CS-100 Specifications The product label contains: • the Barco logo • the product name • the Barco part number • the power rating • markings for applicable standards (CE, CCC, UL, ...) • markings for waste regulation • “Made in ...”...

  • Page 22: Mobile Device Support

    Before you can use your mobile device with ClickShare, you have to connect the mobile device Wi-Fi with the ClickShare Base Unit Wi-Fi. Follow the instructions as given in your mobile device user guide. Used on Logo ClickShare App Android Ports used by the CS-100 Base Unit Overview Sender CS-100 Base Unit ClickShare 6541; 6542; 6543; 6544; 6545...

  • Page 23: Getting Started

    7. If desired, configure CS-100 via the Configurator. For more information on the different ways to configure CS-100, see "CS-100 Configurator", page 21. For more information on using CS-100, refer to the CS-100 User Guide. This manual can be found on Barco’s website www.barco.com/clickshare...
  • Page 24 3. Getting started R5900022 CS-100 16/02/2016...

  • Page 25: Cs-100 Installation

    4. CS-100 Installation 4. CS-100 INSTALLATION Overview • Installation methods for the Base Unit • Table mounting • Wall mounting • Video signal connections to the Base unit • Audio connection • LAN connection • Power connection Installation methods for the Base Unit For optimal performance, install the Base unit close to the display and avoid obstacles between the Base unit and the Buttons.

  • Page 26: Video Signal Connections To The Base Unit

    Note: Mounting screws and plugs are not included in the CS-100 box . The type of screws and plugs depend on the type of wall (stone, wood, plasterboard, ...) you are mounting the Base Unit to. Make sure the head of the screw is not larger than the hole in the bottom plate of the Base Unit (<...

  • Page 27: Audio Connection

    The Base Unit can be connected to a local network or directly to a laptop. For normal operation, a LAN connection is not necessary. The LAN connection can be used: • to configure your CS-100 Base unit • to update the software •...
  • Page 28 4. CS-100 Installation 2. Slide a power input adaptor piece (US, CN, EU or UK) on the power adapter of the ClickShare . Use the one which is applicable in your country. a) Slide down the button on the adapter (1).

  • Page 29: Preparing The Buttons

    To be able to use a Button it should be assigned to the Base Unit you are using. This process is called pairing. By default, the two Buttons delivered with the CS-100 set are already paired to the specific Base Unit.

  • Page 30: Pre-Install Of The Launcher Service

    ClickShare application will be run from the Button automatically. There is no need to run the file from the Button. The pre-installer can be downloaded from the Base Unit’s configurator. Where to download the launcher installer? The launcher service (installer) can be downloaded from Barco’s website www.barco.com/clickshare. ClickShare launcher installer Interactive setup In this setup, user runs the installer and installs the ClickShare launcher to the computer after accepting EULA and specifying the installation directory.
  • Page 31 /x ClickShare_Launcher_01_06_00_0144_Setup_Win.msi /qn Windows environment variable A windows environment variable can be introduced to start from a custom location. The variable to be used is CLICKSHARE_LAUNCHER_CLIENT_PATH. The value should be the path to the client software. R5900022 CS-100 16/02/2016...
  • Page 32 5. Preparing the buttons R5900022 CS-100 16/02/2016...

  • Page 33: Cs-100 Configurator

    6. CS-100 Configurator 6. CS-100 CONFIGURATOR Overview • Accessing the Configurator • On-Screen Language and Text Size • Meeting room information • Personalisation, wallpaper • Personalisation, Personalized wallpaper • Manage configuration files • Display setup • Audio settings • WiFi settings •...
  • Page 34 6. CS-100 Configurator Image 6-1 Login screen 3. To change the language of the Configurator, click on the drop down next to the current selected language and select the desired language. Image 6-2 Configurator lanuguages R5900022 CS-100 16/02/2016...
  • Page 35 6. CS-100 Configurator The following languages are possible: Arabic Simplified Chinese Traditional Chinese Danish Dutch English Finnish French German Italian Japanese Korean Norwegian Portuguese Russian Spanish Swedish The Configurator language changes to the selected language. 4. Enter the user name ’admin’ and the password, read and accept the EULA and click OK.
  • Page 36 6. CS-100 Configurator If you cannot find the IP address (e.g. there is no screen available) you should connect to the Base Unit directly with your laptop via an Ethernet crossover cable and access the web interface using the fixed IP address 192.168.1.23.

  • Page 37: On-Screen Language And Text Size

    6. CS-100 Configurator On-Screen Language and Text Size About the on-screen language. The on-screen language can be set independent of the configurator language. The on-screen text size can be changed between small, medium or large. Language selection 1. Log in to the Configurator 2.

  • Page 38: Meeting Room Information

    6. CS-100 Configurator 3. Click on the drop down box next to On-screen text size and select the desired font size. The following sizes are possible: Small Medium Large Meeting room information About meeting room settings The following settings are possible: •...

  • Page 39: Personalisation, Wallpaper

    Personalisation, wallpaper About wallpaper When CS-100 starts up, a background (wallpaper) is displayed. The display of this background wallpaper can be disabled. By default a general ClickShare and a quick start wallpaper are available. The possibility exists to upload personal backgrounds (wallpapers).

  • Page 40: Personalisation, Personalized Wallpaper

    6. CS-100 Configurator You can also add a personal wallpaper, e.g. your company logo. For more information on adding a new wall- paper to the list, see "Personalisation, Personalized wallpaper", page 28. Download wallpaper 1. Hoover with your mouse over the wallpaper to download and click on the download symbol on the upper right corner.
  • Page 41 6. CS-100 Configurator Image 6-8 Personalized wallpaper selection A browser window opens. 4. Browse for the desired image, click Open to load the image. The content of the file is checked and when valid (format and size), the file is uploaded. The new wallpaper gets a red border.

  • Page 42: Manage Configuration Files

    6. CS-100 Configurator Image 6-9 Change image 3. Browse for the desired image, click Open to load the image. The content of the file is checked and when valid (format and size), the file is uploaded. The new wallpaper gets a red border.

  • Page 43: Display Setup

    Display setup Resolution The output resolution to the display is set on Auto. That means that the CS-100 output resolution is automatically adapted to the resolution of the display. For HDMI displays, a hot plug detection is available. Screen saver setup 1.

  • Page 44: Audio Settings

    6. CS-100 Configurator 2. Click Display & Audio → Display & Audio. Image 6-12 Display settings 3. To activate the screen saver, drag the slider bar to the left or to the right until the desired delay time is reached.

  • Page 45: Wifi Settings

    6. CS-100 Configurator WiFi settings ARNING It is not allowed to operate the Base Unit outside its intended geographical region. About WiFi A connection with the Base Unit can be made via a wireless connection. A fixed wireless IP address is used to establish the con- nection.

  • Page 46: Lan Settings

    6. CS-100 Configurator Signal strength 1. Select the Signal Strength. Click on the slider and reduce the broadcasted power (signal strength) until the desired strength is obtained. Note: Too low power and interference by others might lead to connection issues. If so, increase again the signal strength until the issues are solved.

  • Page 47: Sharing Protocols, Clickshare App

    6. CS-100 Configurator Manual (fixed) IP address 1. Click on the drop down box next to Method and select Manual. The IP address, subnet and gateway input fields are activated. 2. Click in the input field of the IP address and fill out the 4 octets.

  • Page 48: Security, Compatibility

    6. CS-100 Configurator Image 6-17 Sharing via ClickShare app 3. Check the check box in front of Sharing via ClickShare app. 4. Click Save changes to apply this setting. Access via the ClickShare app is activate. 6.12 Security, compatibility About the compatibility This function allows Buttons with certificate to be paired with devices without certificate (CSC-1 and CSM-1)

  • Page 49: Status Information Base Unit

    6. CS-100 Configurator Changing the WebUI password 1. Log in to the Configurator. 2. Click Security → Passwords. Image 6-19 Passwords 3. Click in the WebUI Password pane in the input field next to Old password and enter the old password.

  • Page 50: Date & Time Setup, Manually

    6. CS-100 Configurator Image 6-20 3. To restart the Base Unit, click on Restart Base Unit. A ClickShare system reboot message with progress bar is displayed while rebooting takes place. When the reboot is finished, a re-login is necessary. 6.15 Date & Time setup, manually About Date &...

  • Page 51: Date & Time Setup, Time Server

    6. CS-100 Configurator 4. Check the radio button in front of Set time and date manually. 5. To change the date, click in the input field next to Date. A calendar window opens. The current date is indicated with a red background.

  • Page 52: Energy Savers

    6. CS-100 Configurator Image 6-24 Time server setup The current time is indicated next to Current time. 3. Check the radio button next Use NTP. 4. Enter a NTP server address next to NTP servers. Enter the IP address or server name.

  • Page 53: Buttons

    6. CS-100 Configurator Image 6-25 Energy savers How to change the display timeout and standby mode 1. Log in to the Configurator. 2. Click System → Energy Savers. 3. To set a display time out, move the slider to the left or to the right until the desired standby timeout is reached.

  • Page 54: Firmware Update

    3. Check the check box in front of Update Buttons over Wi-Fi. 6.19 Firmware Update About Software update The software of the Base Unit can be updated via the web interface. The latest version of the software is available on Barco’s website. Image 6-27 Firmware update About automatic firmware updates...

  • Page 55: Support & Updates, Troubleshoot, Log Settings

    5. Browse to the file with the new software and click Open to start the upload. Note: This should be an nad file. You might have to unzip the file downloaded from Barco’s website. Note: Updating the software to the Base Unit takes several minutes. Progress can be followed on the meeting room display.

  • Page 56: Factory Defaults

    6. CS-100 Configurator The following message appears on the sys tray: Image 6-29 Client logging 6.21 Factory defaults About default settings The ClickShare Base Unit can return to the factory default settings. The following settings are the defaults: • Meeting room identification info is cleared.
  • Page 57 6. CS-100 Configurator 3. Click Reset to factory defaults. The following message is displayed: “This action will remove all settings of the Base Unit and replace them with the default settings. Are you sure you want to continue?” 4. If you want to continue, click Yes, remove all settings otherwise click No, I changed my mind.
  • Page 58 6. CS-100 Configurator R5900022 CS-100 16/02/2016...

  • Page 59: Software Updates

    USB stick To update the Base Unit software by copying the software on a USB stick 1. Download the latest version of the software from Barco’s website, , www.barco.com/clickshare. Click on Visit the ClickShare product page and go to tab Downloads 2.
  • Page 60 7. Software updates R5900022 CS-100 16/02/2016...

  • Page 61: Troubleshooting

    Capture mode to toggle the current setting.. Wireless connectivity See “Users have bad connectivity” Video is not shown on screen Player uses overlays Disable the usage of overlays in the preferences of the video player. R5900022 CS-100 16/02/2016...
  • Page 62 Avoid placing it inside cabinets, false ceiling, below the table, behind a wall, in another room, ..Check out the ClickShare White paper on WiFi See www.barco.com/clickshare. Configurator shows error in the processes Configuration file is corrupted In the Configurator, goes to Support &...

  • Page 63: Environmental Information

    According to the “China Administration on Control of Pollution Caused by Electronic Information Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 64: Production Address

    Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period” of Chinese Mainland.
