Minuteman UPS User Manual

Minuteman ups user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minuteman UPS

Summary of Contents for Minuteman UPS

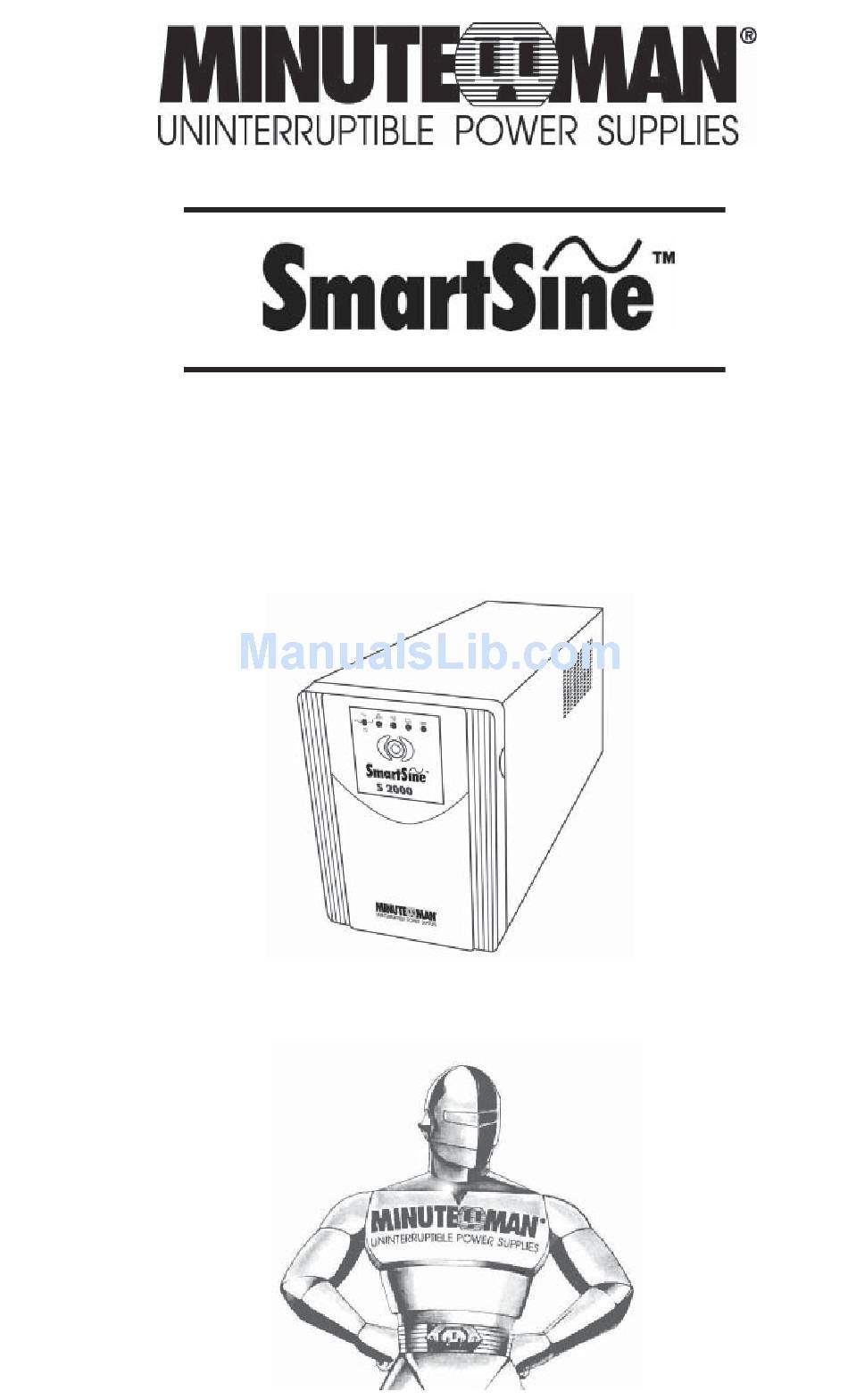

  • Page 1 User's Manual...

  • Page 2: Table Of Contents

    Introduction Controls and Indicators Installation Operation Troubleshooting Replacing the Battery Obtaining Service Specifications Configurable Parameters & Settings Limited Product Warranty Declaration of Conformity © Copyright Para Systems, Inc., 2002 mart User's Manual...
  • Page 3 Please read the manual before installing your SmartSine UPS. It provides the information that should be followed during installation and maintenance of the UPS and the batteries allowing you to correctly set up your system for the maximum safety and performance. Included is information on customer support and factory service if it is required.

  • Page 4: Receiving Inspection

    Warranty claims for damage caused by the carrier will not be honored. The packing materials that your UPS was shipped in, are carefully designed to minimize any shipping damage. In the unlikely case that the UPS needs to be returned to MINUTEMAN, please use the original packing material.

  • Page 5: Front Panel

    “critical” by the United States FDA. Hospital grade wiring and low leakage current devices may be ordered as options on many Para Systems UPS systems. Para Systems does not claim that units with this modification are certified or listed as Hospital Grade by Para Systems or any other organization.

  • Page 6: Front Panel Indicators

    On-Line The On-Line/On-Battery/Boost and Buck (green) LED illuminates in a steady state when the UPS is on and supplying AC power to the load. The LED blinks and the audible alarm sounds, when supplying battery power to the load. The LED blinks and no audible alarm when the UPS is in either the boost or the buck mode.

  • Page 7: Installation & Placement

    (Not on all models). 7. The input power cord has a NEMA 5-15P or 5-20P (S 2000) connector. 8. The input circuit breaker will trip in the event the load exceeds the UPS's power rating.

  • Page 8: Installation

    USE CAUTION: The UPS is heavy. Use the appropriate number of personnel when installing the UPS. If the UPS is going to be out of service or stored for a prolonged period NOTE: of time, the batteries must be recharged for at least twenty-four hours every ninety days.
  • Page 9 “ON Battery” runtime may be less than normally expected. NOTE: If the UPS is going to be out of service or stored for a prolonged period of time, the batteries must be recharged for at least twenty-four hours every ninety days.

  • Page 10: Turning The Unit On/Off

    AC outlet and there is AC present. SELF TEST The self test feature is useful to verify the correct operation of the UPS and the condition of the batteries. With the UPS in the normal On-Line mode, press and hold the ON/OFF/Test Button for approximately 4 seconds (four beeps), then release the button.
  • Page 11 UPS be turned off and restarted with the desired cable connected. The pinout for the port is depicted below: Pin 1: EPO Emergency Power Off (pull and hold this pin low to turn off the UPS) Pin 2: /TXD...

  • Page 12: Operation

    The load has exceeded the Overload LED is UPS's capacity illuminated and a constant alarm The UPS is in either the The On-Line LED is Boost mode or the Buck blinking and the au- mode dible alarm is silent...

  • Page 13: Replacing The Battery

    Warnings and Cautions before attempting to service the batteries. NOTE: If there is a power interruption while replacing the hot-swappable batteries, with the UPS on, the load will not be backed up. This Uninterruptible Power Supply contains potentially hazardous WARNING! voltages.

  • Page 14: Battery Replacement Procedure

    1. Turn off the equipment that is plugged into the output receptacles of the UPS. 2. Press and release the ON/OFF button on the front panel to turn the UPS OFF. 3. Unplug the UPS's AC power cord from the AC outlet.
  • Page 15 19. Reinstall the front panel of the UPS. 20. Dispose of the batteries properly at an appropriate recycling facility or return them to the supplier in the packing material for the new batteries. 21. The UPS is now ready for the normal start-up procedure.
  • Page 16 Return Material Authorization Number (RMA #). G. If the UPS is under warranty, the repairs will be done at no charge. If not, there will be a charge for repair. 4. Pack the UPS in its original packaging. If the original packaging is no longer available, ask the Technical Support Technician about obtaining a new set.
  • Page 17 MODEL NUMBER Acceptable input voltage Input voltage (on-line operation) Output voltage (AC Mode) Nominal input frequency Input protection Frequency limits (AC Mode) Transfer time Maximum load On-battery output voltage On-battery frequency On-battery waveshape Protection Surge energy rating (one time, 10/1000 uS waveform) Surge current capability (one time, 8/20 uS waveform) Surge response time...
  • Page 18 When enabled, the UPS will automatically restart from a low Disable battery shutdown when normal AC returns Enabled - the UPS will emit a Enabled, at low battery, short beep when in the battery disabled mode. At Low Battery the UPS will emit two beeps from low battery warning until shutdown.
  • Page 19 Customized Output Receptacle Panels The SmartSine UPS has a removable receptacle panel. The receptacle panel can be configured with one locking receptacle and two duplex receptacles. This will allow the user to customize the output receptacles for their specific applications. MINUTEMAN will only use UL or CE approved receptacles. Here is one example that could be used: one L5-20R, two 5-15/20R duplexes.

  • Page 20: Limited Product Warranty

    LIMITED PRODUCT WARRANTY Para Systems Inc. (Para Systems) warrants this equipment, when properly applied and operated within specified conditions, against faulty materials or workmanship for a period of three years from the date of purchase. For equipment sites within the United States and Canada, this warranty covers repair or replacement of defective equipment at the discretion of Para Systems.
  • Page 21 LIMITED PRODUCT WARRANTY EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL PARA SYSTEMS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Para Systems is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, cost of substitutes, claims by third parties, or otherwise.

  • Page 22: Declaration Of Conformity

    EN61000-3, EN50091-1 Manufacturer’s Name: Manufacturer’s Address: Type of Equipment: Uninterruptible Power Supplies (UPS) Model No: S 700 (Y), S 1000 (Y), S 1400 (Y), S 2000 (Y) Year of Manufacture: Beginning June 3, 2002 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s).
  • Page 23 Notes:...
  • Page 24 Para Systems, Inc. 1455 Lemay Dr. Carrollton, TX 75007 Phone: 1-972-446-7363 Fax: 1-972-446-9011 Internet: minutemanups.com UPS Sizing: sizemyups.com PN - 34000196 Rev. 0...
