Heat Recovery Ventilator
N
These appliances are intended for connection to fixed wiring.
N
Check that the electrical rating shown on the transformer matches the mains supply.
N
All installation must be supervised by a qualified Electrician.
N
Installation and wiring must conform to current IEE Regualtions(UK), local or appropriate regulations
(other countries)
N
The product must be supplied by a double pole isolating switch with a minimum contact gap of 3mm.
N
The product is double insulated and does not require earth connection. A parking terminal is provided to
ensure continuity of external protective wiring only, and when used must comply with the relevant regulations
THESE APPLIANCES ARE DOUBLE INSULATED AND DO NOT REQUIRE AN EARTH CONNECTION
N
If you have any queries before installing this product or after it has been installed, please contact GDA
Applied Energy, Customer Services - see back cover. Customers outside the UK should contact their
local Xpelair distributor.
Xpelair Heat Recovery Ventilation Range- XHR150PC and XHR150HP
N
Xpelair Heat Recovery Unit have the following features: XHR150PC N Integral Pull Cord
Installation Instructions
If working above Ground Floor level, appropriate safety precautions must be observed.
EYE PROTECTION MUST BE WORN DURING ALL DRILLING AND CHISELLING OPERATIONS
Safety First
The Heat Recovery Ventilator is a "SELV" (Safety Extra Low Voltage) ventilator which operates at 12 volts AC. Under no
circumstances must this be connected directly to the mains supply. Damage so caused is not covered by the warranty.

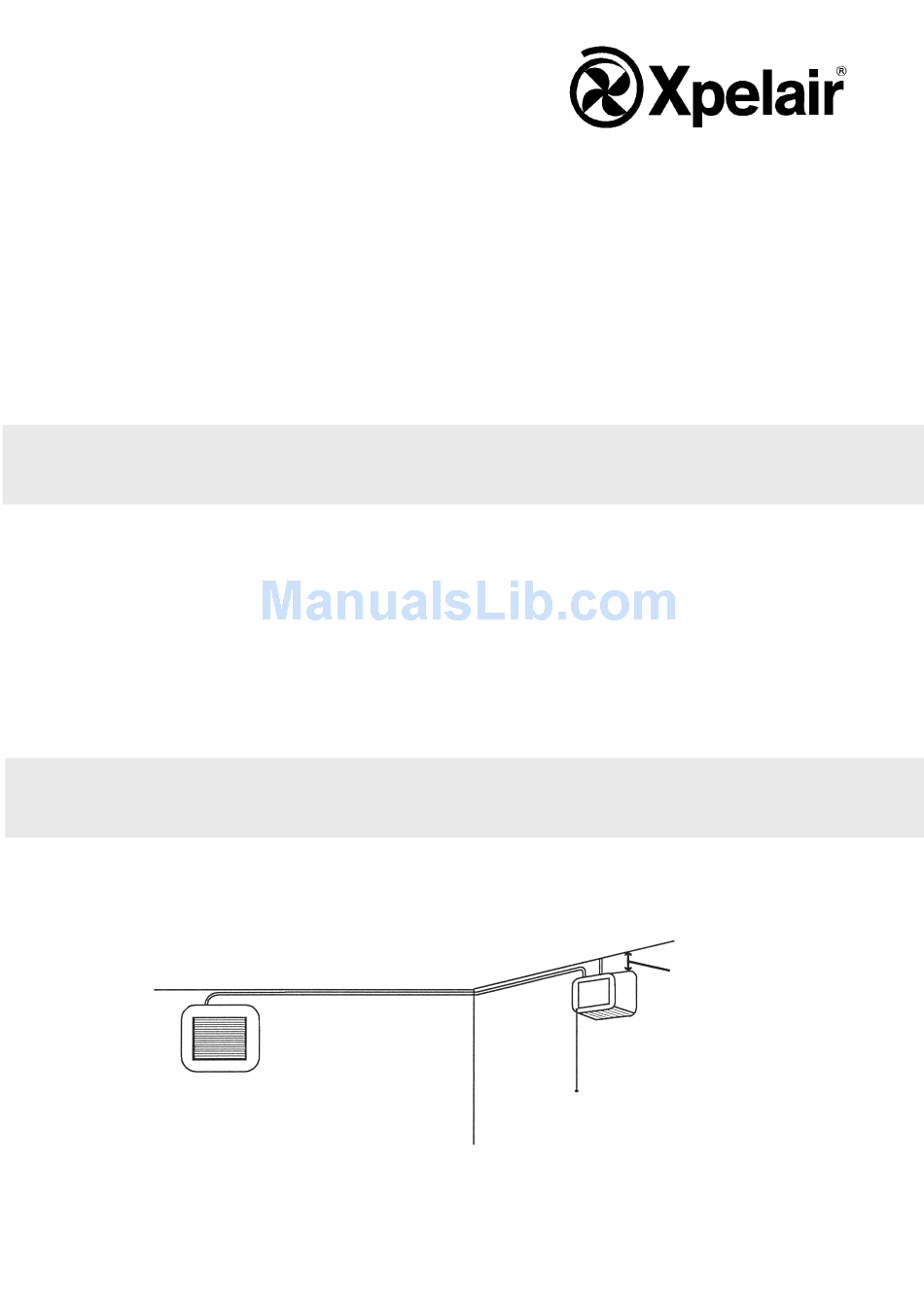

The low voltage used by the ventilator must be provided by the isolating transformer. A typical layout of installation is
shown below.
The Heat Recovery Ventilator can be used in any room which has an outside wall open to fresh air. It is particularly
useful in the bathroom, kitchen or laundry room where high levels of moisture are generated. It can also be used in the
lounge, dining room or any bedroom to provide a fresh air supply to reduce dust-mite, eliminate mould growth or
dampness and condensation and to provide warmed fresh air.
WARNING
WARNING
VENTILATOR
Min 6 inches
TRANSFORMER
REMOTE CONTROL
Note: The transformer unit should be connected to the
mains supply through a fused double pole isolating switch
maximum 5 amps.
April 2000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xpelair XHR150PC
Summary of Contents for Xpelair XHR150PC
-
Page 1: Installation Instructions
Applied Energy, Customer Services - see back cover. Customers outside the UK should contact their local Xpelair distributor. Xpelair Heat Recovery Ventilation Range- XHR150PC and XHR150HP Xpelair Heat Recovery Unit have the following features: XHR150PC N Integral Pull Cord Installation Instructions If working above Ground Floor level, appropriate safety precautions must be observed. -
Page 2: Mains Input
Isolating Transformer (Humidity sensor unit). The humidistat monitors the humidity in the room and automatically switches the ventilator from continuous trickle speed to boost if the humidity exceeds the set point e.g. when using the shower, cooking or doing the laundry. The humidity level can be adjusted by turning the thumbwheel (as shown on page 2). - Page 3 Sitting the Ventilator Do not install where ambient temperatures are likely to exceed 40 C (104 This electrical product, if installed in a shower room or bathroom, must be situated so that they cannot be touched by the person using the bath or shower. When intended for use in possible chemical corrosive atmospheres, first consult GDA Applied Energy for technical advice If installing in a room containing a fuel burning device which has a non-balanced flue, it is the installers...
-
Page 4: Installation
Installation Check that the electrical rating shown on the inside of the product matches the main supply Check there are no buried pipes or cables e.g. Electricity, gas, water behind the switch location (in wall or above the ceiling) Isolate the mains supply You should site the ventilator close to the ceiling. - Page 5 Inside installation of the finisher ring Proceed as follows: Push the large tube through the hole so it extends some 50mm beyond the face of the outside wall. Apply silicon mastic around the rear face of the split finisher – do not compress the adhesive. ADHESIVE INNER FLANGE ENSURE EXTERIOR BRICKWORK IS DUST FREE...
-
Page 6: Heat Exchanger
Try to cut it as evenly as possible with minimum offset. File or otherwise finish your cut end to remove any offset and swarf. Mounted on the heat exchanger is a round plastic baffle which secures the air intake filters. The extraction fan adjacent to these filters goes to the outside wall. - Page 7 Location of the Transformer Unit Check that the electrical rating shown on the inside of the product matches the main supply Check there are no buried pipes or cables e.g. Electricity, gas, water behind the switch location (in wall or above the ceiling) Isolate the mains supply The Transformer may be mounted on the wall or ceiling.
- Page 8 Follow the line diagram below to make the correct connections between the fan assembly and the transformer/humidity sensor, and wall plate. Place the fan assembly and front cover through the wall plate and push home. Apply power to the system and check operation.
-
Page 9: Light Level Sensor
Light Level Sensor A Light Level Sensor is included to prevent the fan from switching automatically to boost at night-time. This is a useful feature particularly if the Heat Recovery Ventilator is installed in a bedroom or bed-sit accommodation, ensuring noise is kept to a minimum. - Page 10 UK. The Ventilator is guaranteed against defects for 3 years from the date of purchase. • Please keep your purchase receipt. • If you have any problems, contact Xpelair’s Head Office at the address shown below. Technical advice and service. Customers outside UK – see International below. •...
