Haas+Sohn Askja 235.17-AUT Equipment Sheet

Item no.0423517009032
V09 F25
Spare parts no. Item
-
0423517005300
0427717005600
0425515005002
-
0020100020006
0020100150005
0424917005500 10
0425317005302 11
- 12
0424917005301 13
0424917005502 14
0050500620005 15

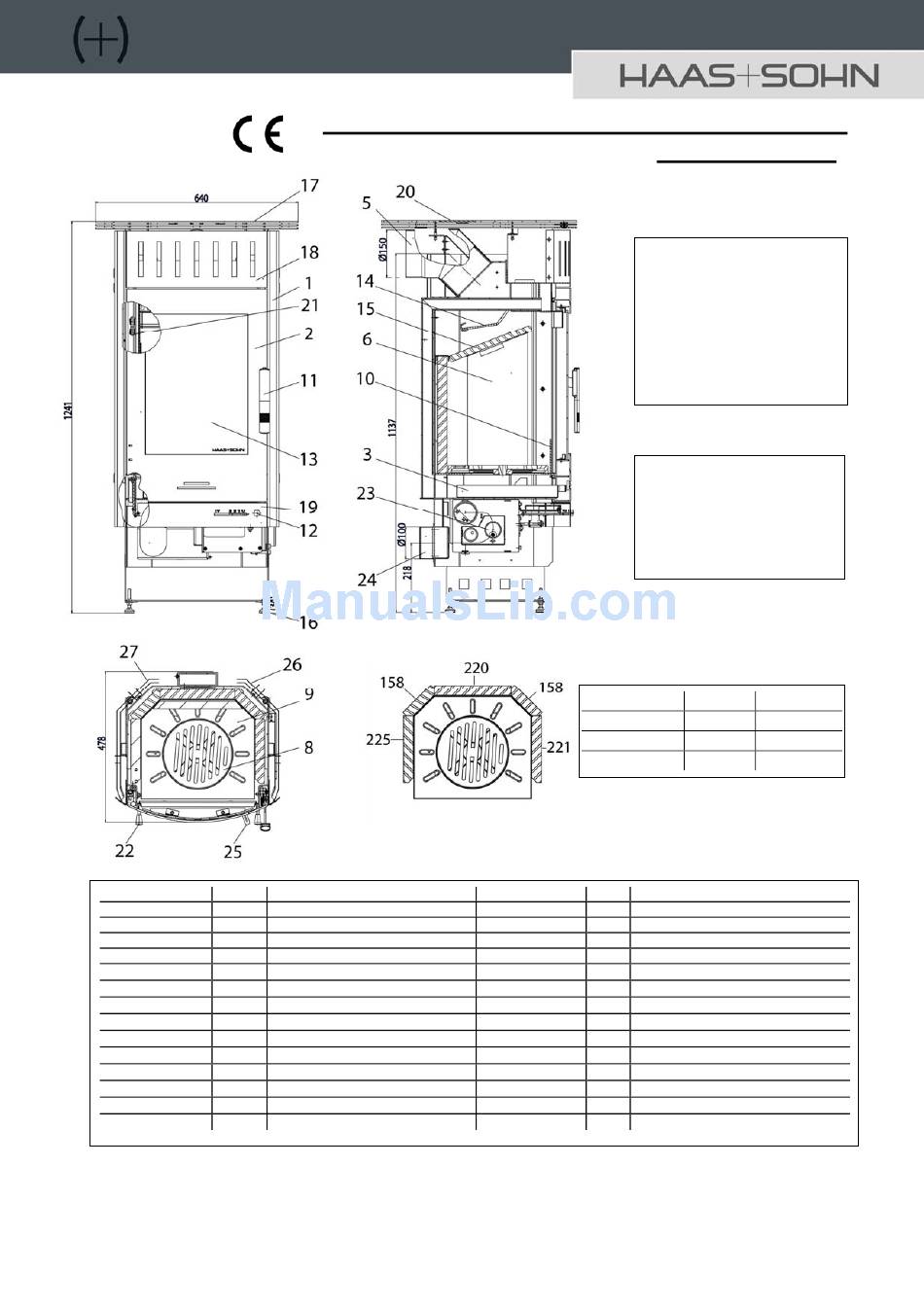

Equipment sheet fireplace Askja 235.17-AUT
Designation
1 Oven body
2 Fire chamber door
3 Ash pan
5 Smoke pipe spigot
6 Refractory
8 Grating Ø 215
9 Base support framework
Upright grating
Fire chamber door handle
Air damper
Glass pane 475x350
Upper draft deflection plate
Lower draft deflection plate 400x275
0050102200005 Stone 220
0050102210005 Stone 221
0050102250005 Stone 225
0050101580005
Spare parts no. Item
0423517005066 16 Adjustable feet
0423517005700 17 Cover plate
- 18 panel
- 19 panel
20 Insert plate
-
21 Door spring
0423117005020
22 Riddling grate
-
23 Automatic
0423017006500
24 Outside air - pipe fitting
0088500050005
25 Power Controller
0423517005022
26 Protective metal sheet right
0423517005052
27 Protective metal sheet left
0423517005053
- Seal door 12 mm
0040012120005
- Seal glass 10x4 mm
0040210040005
1
0423517000000
Suitable fuels:
The following materials are
approved for burning in your
fireplace (refer also to chapter
5.1.):
Dry, natural wood, wood
briquettes according to DIN
51731;
lignite briquettes 6" and 7".
Fuel quantities, setting of
combustion air damper,
operation:
See chapters 5.4, 5.5 and 5.6
in the Operating Instructions
and table below.
370x235x30
450x204x30
450x204x30
Stone 158 370x120x30
Designation
