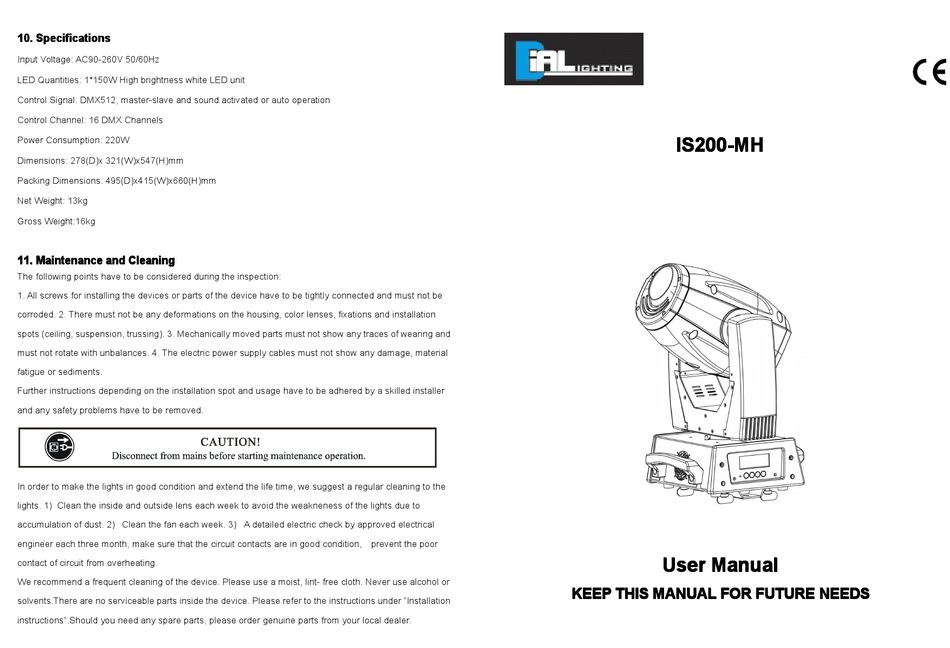

Dialighting IS200-MH User Manual

10. Specifications 10. 10. 10. Specifications Specifications Specifications
Input Voltage: AC90-260V 50/60Hz
LED Quantities: 1*150W High brightness white LED unit
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 16 DMX Channels
Power Consumption: 220W
Dimensions: 278(D)x 321(W)x547(H)mm
Packing Dimensions: 495(D)x415(W)x660(H)mm
Net Weight: 13kg
Gross Weight:16kg
1 1 1 1 1 1 1 1 . . . . Maintenance Maintenance Maintenance Maintenance and and and Cleaning and Cleaning Cleaning Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly connected and must not be
corroded. 2. There must not be any deformations on the housing, color lenses, fixations and installation
spots (ceiling, suspension, trussing). 3. Mechanically moved parts must not show any traces of wearing and
must not rotate with unbalances. 4. The electric power supply cables must not show any damage, material
fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer
and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the
lights. 1) Clean the inside and outside lens each week to avoid the weakneness of the lights due to
accumulation of dust. 2) Clean the fan each week. 3) A detailed electric check by approved electrical
engineer each three month, make sure that the circuit contacts are in good condition, prevent the poor
contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alcohol or
solvents.There are no serviceable parts inside the device. Please refer to the instructions under "Installation
instructions".Should you need any spare parts, please order genuine parts from your local dealer.
IS200-MH
IS200-MH IS200-MH IS200-MH
User Manual
User Manual User User Manual Manual
KEEP KEEP THIS KEEP KEEP THIS THIS THIS MANUAL MANUAL MANUAL MANUAL FOR FOR FUTURE FOR FOR FUTURE NEEDS FUTURE FUTURE NEEDS NEEDS NEEDS
