Page 1

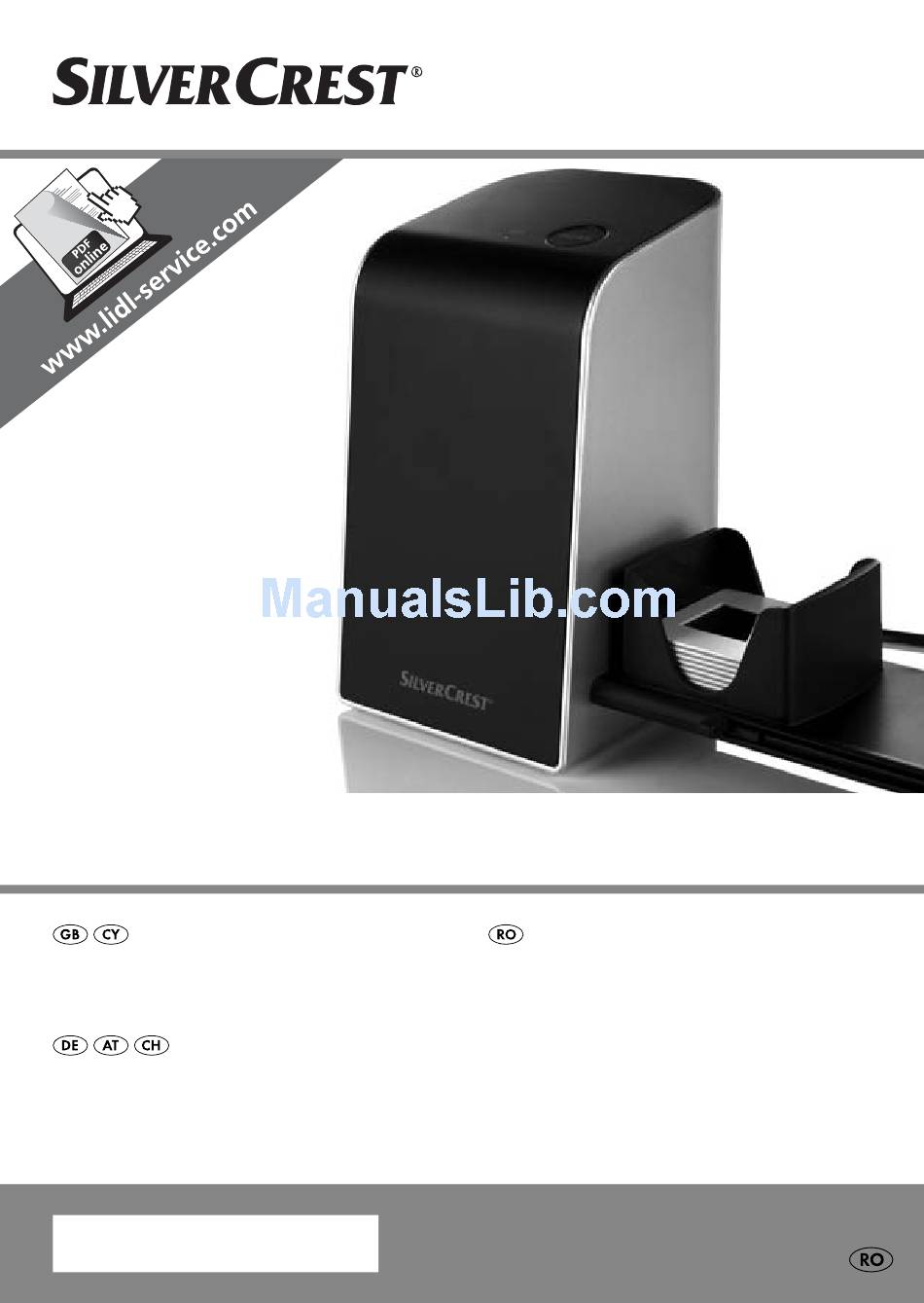

PHOTO SLIDE SCANNER SND 3600 A2 PHOTO SLIDE SCANNER SCANNER PENTRU DIAPOZITIVE Operating instructions Instrucţiuni de utilizare DIA-SCANNER Bedienungsanleitung IAN 73761...
Page 2
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device. Înainte de a citi instrucţiunile, priviţi ambele pagini cu imagini şi familiarizaţi-vă cu toate funcţiile aparatului. Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschließend mit allen Funktionen des Gerätes vertraut.
You have clearly decided in favor of a quality product. These operating instructions are a component of the Slide & Negative Scanner SND 3600 A2 (henceforth designated as the device) and supplies you with important information for intended use, safety and connection as well as operation of the device.
Proper use This device is intended exclusively for the non-commercial use of scanning and digitizing fi lm negatives and slides. This device is not intended for any other use or for uses beyond those mentioned. SND 3600 A2...
Before use check the device for visible external damage. Do not put into operation a device that is damaged or has been dropped. ■ Damaged cables or connections should be replaced by authorized qualifi ed persons or by the customer service department. SND 3600 A2...
Page 9
Protect the device from moisture and liquid penetration. Do not place any liquid-fi lled vessels (such as fl ower vases) next to the appliance. ■ Do not operate the device in the vicinity of open fl ames. SND 3600 A2...
Check the contents to make sure everything is there and for visible damage. ► If the contents are not complete or are damaged due to defective packaging or through transportation contact the service hotline (see the section “Service”). SND 3600 A2...
The device must be placed on a fi rm, fl at and level surface. ■ Do not place the device in a hot, wet or very damp environment or in the vicinity of fl ammable materials. ■ Place the device so that it is not subjected to direct sunlight. SND 3600 A2...
♦ Insert the supplied programme CD into your computer’s CD drive. The window “Automatic playback” will be displayed. ♦ Click on the button “run autorun.exe”. The installation begins and the start window is displayed. SND 3600 A2...
Page 13
Click on the button “Arcsoft Software” to install the “ArcSoft MediaImpression 2“ programme. The window for selecting the installation language is shown. ♦ Select the desired installation language and click the “OK” button. The installation wizard will be confi gured. SND 3600 A2...
Page 14
The start window of the installation wizard will be displayed. ♦ Click on the button “Continue >”. The window “License agreement” will be displayed. ♦ Click on the button “Yes”. The window for entering the user information and the license key is shown. SND 3600 A2...
Page 15
Select the desired installation directory and click on the button “Continue >”. The window for the selection of the programme folders (Entry in the Windows start menu) will be displayed. ♦ Select the desired programme folder and click on the button “Continue >”. SND 3600 A2...
Page 16
The programme will be installed and the installation progress will be displayed. The window “Associated fi le formats” will be displayed. ♦ Select the fi le format that is to be associated with the programme and click on the button “Continue >”. SND 3600 A2...
Page 17
♦ Click on the button “Exit Installation” to exit the installation programme. Connection ♦ Connect the USB cable to a USB port on your computer. The computer recognizes the new hardware and starts the automatic driver installation. SND 3600 A2...
First guide the slide magazine , with the viewing window leading, into the insert slot By means of the slider, located laterally on the slide magazine the slides contained in the slots are pushed individually into the scanner. SND 3600 A2...
Page 19
♦ When you have decided to fi nish scanning the slides, remove the slide magazine from the insert slot . Remove the last slide from the bottom of the viewing window of the slide magazine SND 3600 A2...
4. Image editing tools: Detailed image editing NOTICE ► In these operating instructions only the programme sections are described that you will need for scanning your slides and/or fi lm negatives. You can fi nd further information in the programme's online help. SND 3600 A2...
In the displayed information window click on the button “OK” to start calibration and data collection. The fi rst calibration and data collection process can take several minutes. The calibration progress will be displayed. After completion of the calibration the programme window will be displayed. SND 3600 A2...
Page 22
The colour depth is defi ned as 24 Bit. A scan with 1800 DPI has a resolution of 2520 x 1680 Pixel and a scan with 3600 DPI has a resolution of 5040 x 3360 Pixel. ♦ Click on the button “Capture”. The “Capture” window is displayed. SND 3600 A2...
Page 23
Use the slide controller to adjust the electrical balance (Colour balance). Example: If the image has a too high proportion of blue, this can be reduced by increasing the yellow component. SND 3600 A2...
Remove the fi lm holder by pushing it completely through the appliance. ♦ Remove the slide magazine by pulling it back out of the insert slot ♦ Remove the USB cable from the USB port of your computer. SND 3600 A2...
Clean the housing exclusively with a soft damp cloth and a mild dishwashing liquid. ■ Clean the surface of the scanner lens inside of the device with a cleaning brush . For this, push the cleaning brush with the cleaning surface facing downwards only into the right slot SND 3600 A2...
Clean the scanner lens. lens. Poor image quality Dust on the fi lm and/or Clean the fi lm and/or the slide the slide. NOTICE ► If you cannot solve the problem with the aforementioned methods please contact customer service. SND 3600 A2...
European directive 2012/19/EU-WEEE (Waste Electrical and Electronic Equipment). Dispose of the device through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. SND 3600 A2...
Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the war- ranty. This applies also to replaced and repaired parts. SND 3600 A2...
Acum deţineţi un produs de calitate excepţională. Acest manual de utilizare este parte componentă pentru aparatul digital Negativ SND 3600 A2 (numit în continuare aparat) şi vă oferă indicaţii importante despre utilizarea conform destinaţiei, des- pre siguranţă, precum şi despre conectarea şi operarea aparatului.
Utilizarea conform destinaţiei Acest aparat este conceput exclusiv pentru utilizarea non-comercială, pentru scanarea şi digitalizarea negativelor şi diapozitivelor. Un alt mod de utilizare este considerat în neconformitate cu destinaţia de utilizare pentru care a fost conceput. SND 3600 A2...
Înainte de utilizare verifi caţi dacă aparatul prezintă defecţiuni exterioare vizibile. Nu puneţi în funcţiune aparatul, dacă este defect sau dacă a căzut. ■ În cazul deteriorării cablului sau conexiunilor acestea trebuie înlocuite de către un specialist sau de către atelierul de service pentru clienţi. SND 3600 A2...
Page 35
Nu efectuaţi schimbări neautorizate sau modifi cări la acest aparat. ■ Protejaţi aparatul împotriva umezelii şi infi ltrării lichidelor. Nu aşezaţi vase umplute cu lichide (de ex. vaze) lângă aparat. ■ Nu operaţi aparatul în apropierea fl ăcărilor deschise. SND 3600 A2...
Verifi caţi dacă au fost livrate toate componentele şi dacă există defecţiuni vizibile. ► În cazul în care furnitura nu este completă sau în cazul pagubelor provocate în urma transportului sau ambalajului neadecvat, apelaţi linia de service directă (a se vedea capitolul Service-ul). SND 3600 A2...
Aparatul trebuie amplasat pe un cartuş stabil, neted şi orizontal. ■ Nu amplasaţi aparatul într-un mediu foarte cald sau umed şi nici în apropierea materialelor infl amabile. ■ Amplasaţi aparatul, astfel încât să nu fi e expus direct la razele soarelui. SND 3600 A2...
în funcţie de setările de afi şare pentru alte sisteme de operare. ♦ Inseraţi CD-ul livrat pentru program în dispozitivul de rulare al computerului dumneavoastră. Se deschide fereastra „Redare automată“. ♦ Daţi click pe „aplicaţia autorun.exe“. Începe instalarea şi se deschide fereastra de start. SND 3600 A2...
Page 39
Daţi click pe tasta „Arcsoft Software“, pentru a instala programul „ArcSoft MediaImpression 2“. Se deschide fereastra pentru selectarea limbii de instalare. ♦ Alegeţi limba de instalare dorită şi daţi click pe tasta „OK”. Asistentul de instalare este confi gurat. SND 3600 A2...
Page 40
Se deschide fereastra de start pentru asistentul de instalare. ♦ Daţi click pe tasta „Continuare >“. Se deschide fereastra „Acord de licenţă“. ♦ Daţi click pe tasta „Da“. Este afi şată fereastra pentru introducerea informaţiilor privind utilizatorul şi cheii de licenţă. SND 3600 A2...
Page 41
Alegeţi directorul de instalare dorit şi daţi click pe tasta „Continuare >“. Se deschide fereastra pentru alegerea fi şierului pentru program (introducere în meniul de start din Windows). ♦ Alegeţi fi şierul dorit pentru program şi daţi click pe tasta „Continuare >“. SND 3600 A2...
Page 42
Amplasarea şi conectarea Programul este instalat şi se afi şează procesul de instalare. Se deschide fereastra „Formatele fi şierelor corespunzătoare“. ♦ Alegeţi formatele fi şierelor care să corespundă programului şi daţi click pe tasta „Continuare >“ SND 3600 A2...
Page 43
Fereastra de start este din nou afi şată. ♦ Daţi click pe tasta „Ieşire instalare“, pentru a încheia programul de instalare. Conectare ♦ Conectaţi cablul USB la un slot USB al computerului dum- neavoastră. Computerul recunoaşte noul hardware şi porneşte instalarea automată a driverului. SND 3600 A2...
în cartuşul cu diapozitive ♦ Inseraţi mai întâi cartuşul de diapozitive cu vizorul în cadrul glisant. Cu ajutorul cursorului, care se afl ă pe lateralul cartuşului, dia- pozitivele care se afl ă în cadru, sunt împinse pe rând spre scaner. SND 3600 A2...
Page 45
într-o parte, pentru ca diapozitivul să ajungă din nou în poziţia optimă. ♦ Când nu mai doriţi să scanaţi alte diapozitive, îndepărtaţi cartuşul de diapozitive din cadrul glisant . Îndepărtaţi ultimul diapozitiv de jos, din vizorul cartuşului de diapozitive SND 3600 A2...
4. Dispozitive de prelucrare a imaginii: Prelucrare detaliată a imaginii INDICAŢIE ► În acest manual de utilizare sunt descrise doar părţile din program, de care aveţi nevoie pentru scanarea diapozitivelor resp. negativelor dumneavoastră. Informaţii suplimentare găsiţi pe adresa de asistenţă online a programului. SND 3600 A2...
Daţi click în fereastra de informare afi şată, pe tasta „OK“ pentru a porni calibrarea şi colectarea datelor. Prima etapă de calibrare şi colectare a datelor poate dura câteva minute. Etapele de calibrare sunt afi şate. După încheierea procesului de calibrare este afi şată fereastra programului. SND 3600 A2...
Page 48
Intensitatea culorii este setată prin 24 biţi. Un scaner cu 1800 DPI are o rezoluţie de 2520 x 1680 pixeli iar cu 3600 DPI, un scaner are o rezoluţie de 5040 x 3360 pixeli. ♦ Daţi click pe tasta „Înregistrare“. Se deschide fereastra „Fotografi ere“. SND 3600 A2...
Page 49
şi pentru a reduce valoarea corespunzătoare. Utilizaţi cursorul, pentru a seta egalizarea electronică (Egalizarea culorilor). Exemplu: dacă o imagine are un procent prea mare de albastru, acesta poate fi redus prin creşterea procentului de galben. SND 3600 A2...
Repetaţi etapele de lucru pentru a scana şi alte imagini. După utilizare ♦ Îndepărtaţi suportul negativelor prin împingerea completă a acestuia prin aparat. ♦ Îndepărtaţi cartuşul de diapozitive prin scoaterea acestuia din cadrul glisant. ♦ Îndepărtaţi cablul USB din slotul USB al computerului dumneavoastră. SND 3600 A2...
Curăţaţi carcasa numai cu un prosop uşor umezit şi un detergent uşor. ■ Curăţaţi suprafaţa lentilei scanerului în interiorul aparatului cu peria de curăţat. . Pentru aceasta împingeţi peria de curăţat, cu suprafaţa de curăţare în jos, doar în cadrul din dreapta. SND 3600 A2...
Praf pe fi lm resp. Curăţaţi fi lmul pe diapozitiv resp. diapozitivul INDICAŢIE ► Dacă nu reuşiţi să rezolvaţi problema cu niciunul dintre paşii indicaţi anterior, adresaţi-vă serviciului pentru clienţi. SND 3600 A2...
Eliminaţi aparatul prin intermediul unei fi rmei specializate şi autori- zate sau prin intermediul serviciului local de eliminare a deşeurilor. Respectaţi reglementările actuale în vigoare. Dacă aveţi nelămuriri, contactaţi serviciul dumneavoastră local de eliminare a deşeurilor. SND 3600 A2...
Rata de repetare a imaginilor Domeniul de focalizare Focalizare clară Reglarea luminozităţii Automat Optimizarea culorilor Automat Rezoluţie (interpolată) 3600 Convertor de date 10 biţi per canal de culoare Metoda de scanare Single pass Sursa de lumină Contralumina (3 LED-uri albe) SND 3600 A2...
îşi pierde valabilitatea. Drepturile dumneavoastră legale nu sunt limitate prin această garanţie. Perioada de garanţie nu este prelungită după realizarea reparaţiilor realizate în perioada garanţie. Acest lucru este valabil şi pentru piesele înlocuite şi reparate. SND 3600 A2...
Reparaţiile necesare după expirarea perioadei de garanţie se efectuează contra cost. Service-ul Service România Tel.: 0800896637 E-Mail: kompernass@lidl.ro IAN 73761 Acces linie telefonică directă: De luni până vineri, între orele 8:00 - 20:00 (CET) Importator KOMPERNASS HANDELS GMBH BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com SND 3600 A2...
Sie haben sich damit für ein hochwertiges Produkt entschieden. Diese Bedienungsanleitung ist Bestandteil des Negativ-Digitalisierers SND 3600 A2 (nachfolgend als Gerät bezeichnet) und gibt Ihnen wichtige Hinweise für den bestimmungsgemäßen Gebrauch, die Sicherheit, den Anschluss sowie die Bedienung des Gerätes. Die Bedienungsanleitung muss ständig in der Nähe des Gerätes verfüg-...
Ein Hinweis kennzeichnet zusätzliche Informationen, die den Umgang mit dem Gerät erleichtern. Bestimmungsgemäße Verwendung Dieses Gerät ist ausschließlich für den nicht gewerblichen Gebrauch zum Scannen und Digitalisieren von Filmnegativen und Dias bestimmt. Eine andere oder darüber hinausgehende Benutzung gilt als nicht bestimmungsgemäß. SND 3600 A2...
Kontrollieren Sie das Gerät vor der Verwendung auf äußere sichtbare Schäden. Nehmen Sie ein beschädigtes oder herunter- gefallenes Gerät nicht in Betrieb. ■ Bei Beschädigung der Kabel oder Anschlüsse lassen Sie diese von autorisiertem Fachpersonal oder dem Kundenservice austauschen. SND 3600 A2...
Page 61
■ Schützen Sie das Gerät vor Feuchtigkeit und dem Eindringen von Flüssigkeiten. Stellen Sie keine mit Flüssigkeit gefüllten Gegenstän- de (z.B. Vasen) neben das Gerät. ■ Das Gerät nicht in der Nähe von off enen Flammen betreiben. SND 3600 A2...
Reinigungsbürste ▯ Bedienungsanleitung HINWEIS ► Prüfen Sie die Lieferung auf Vollständigkeit und auf sichtbare Schäden. ► Bei einer unvollständigen Lieferung oder Schäden infolge mangelhafter Verpackung oder durch Transport wenden Sie sich an die Service-Hotline (siehe Kapitel Service). SND 3600 A2...
■ Stellen Sie das Gerät nicht in einer heißen, nassen oder sehr feuchten Umgebung oder in der Nähe von brennbarem Material auf. ■ Stellen Sie das Gerät so auf, dass es nicht direkter Sonnenein- strahlung ausgesetzt wird. SND 3600 A2...
Betriebssystemen abweichen. ♦ Legen Sie die mitgelieferte Programm-CD in das CD-Laufwerk Ihres Computers ein. Das Fenster „Automatische Wiedergabe“ wird angezeigt. ♦ Klicken Sie auf die Schaltfl äche „autorun.exe ausführen“. Die Installation startet und das Startfenster wird angezeigt. SND 3600 A2...
Page 65
Klicken Sie auf die Schaltfl äche „Arcsoft Software“, um das Programm „ArcSoft MediaImpression 2“ zu installieren. Das Fenster zur Auswahl der Installationssprache wird angezeigt. ♦ Wählen Sie die gewünschte Installationssprache und klicken Sie auf die Schaltfl äche „OK“. Der Installationsassistent wird konfi guriert. SND 3600 A2...
Page 66
Das Startfenster des Installationsassistenten wird angezeigt. ♦ Klicken Sie auf die Schaltfl äche „Weiter >“. Das Fenster „Lizenzvereinbarung“ wird angezeigt. ♦ Klicken Sie auf die Schaltfl äche „Ja“. Das Fenster zur Eingabe der Benutzerinformationen und des Lizenzschlüssels wird angezeigt. SND 3600 A2...
Page 67
Wählen Sie das gewünschte Installationsverzeichnis und klicken Sie auf die Schaltfl äche „Weiter >“. Das Fenster zur Auswahl des Programmordners (Eintrag im Windows-Startmenü) wird angezeigt. ♦ Wählen Sie den gewünschten Programmordner und klicken Sie auf die Schaltfl äche „Weiter >“. SND 3600 A2...
Page 68
Aufstellen und Anschließen Das Programm wird installiert und der Installationsfortschritt wird angezeigt. Das Fenster „Zugehörige Dateiformate“ wird angezeigt. ♦ Wählen Sie die Dateiformate aus, die mit dem Programm verknüpft werden sollen und klicken Sie auf die Schaltfl äche „Weiter >“ SND 3600 A2...
Page 69
♦ Klicken Sie auf die Schaltfl äche „Exit Installation“, um das Installationsprogramm zu beenden. Anschluss ♦ Schließen Sie das USB-Kabel an einem USB-Anschluss Ihres Computers an. Der Computer erkennt die neue Hardware und startet die automatische Treiberinstallation. SND 3600 A2...
Schacht des Dia-Magazins ♦ Führen Sie das Dia-Magazin mit dem Sichtfenster zuerst in den Einschub ein. Mit dem Schieber, der sich seitlich am Dia-Magazin befi ndet, werden die im Schacht befi ndlichen Dias einzeln in den Scanner geschoben. SND 3600 A2...
Page 71
Sie das Gerät seitlich etwas anheben, damit das Dia wieder in eine optimale Lage gelangt. ♦ Sobald Sie keine weiteren Dias mehr scannen möchten, entfernen Sie das Dia-Magazin aus dem Einschub Entnehmen Sie das letzte Dia von unten aus dem Sichtfenster des Dia-Magazins SND 3600 A2...
3. Einfaches Nachbessern: Schnelle Bildbearbeitung 4. Bildbearbeitungswerkzeuge: Ausführliche Bildbearbeitung HINWEIS ► In dieser Bedienungsanleitung sind nur die Programmteile beschrieben, die Sie zum Scannen Ihrer Dias bzw. Filmnega- tive benötigen. Weiterführende Informationen fi nden Sie in der Onlinehilfe des Programmes. SND 3600 A2...
Klicken Sie im angezeigten Informationsfenster auf die Schaltfl ä- che „OK“, um die Kalibrierung und Datensammlung zu starten. Der erste Kalibrierungs- und Datensammlungsvorgang kann einige Minuten dauern. Der Kalibrierungsfortschritt wird angezeigt. Nach Abschluss der Kalibrierung wird das Programmfenster angezeigt. SND 3600 A2...
Page 74
Die Farbtiefe ist mit 24 Bit festgelegt. Ein Scan mit 1800 DPI hat eine Aufl ösung von 2520 x 1680 Pixel, mit 3600 DPI hat ein Scan eine Aufl ösung von 5040 x 3360 Pixel. ♦ Klicken Sie auf die Schaltfl äche „Erfassen“. Das Fenster „Aufnehmen“ wird angezeigt. SND 3600 A2...
Page 75
Wert zu erhöhen und auf um den entsprechenden Wert zu verringern. Verwenden Sie die Schieberegler, um den elektrischen Abgleich (Farbabgleich) vorzunehmen. Beispiel: Hat das Bild einen zu hohen Blauanteil, kann dies durch Erhöhen des Gelbanteils verringert werden. SND 3600 A2...
Entnehmen Sie die Negativhalterung , indem Sie sie komplett durch das Gerät hindurchschieben. ♦ Entnehmen Sie das Dia-Magazin , indem Sie es wieder aus dem Einschub herausziehen. ♦ Entfernen Sie das USB-Kabel von dem USB-Anschluss Ihres Computers. SND 3600 A2...
Tuch und einem milden Spülmittel. ■ Reinigen Sie die Oberfl äche der Scannerlinse im Inneren des Gerätes mit der Reinigungsbürste . Schieben Sie dazu die Reinigungsbürste mit der Reinigungsfl äche nach unten nur in den rechten Einschub SND 3600 A2...
Bildqualität Staub auf dem Film Reinigen Sie den Film bzw. dem Dia bzw. das Dia. HINWEIS ► Wenn Sie mit den vorstehend genannten Schritten das Problem nicht lösen können, wenden Sie sich bitte an den Kundendienst. SND 3600 A2...
Richtlinie 2012/19/EU WEEE (Waste Electrical and Electronic Equipment). Entsorgen Sie das Gerät über einen zugelassenen Entsorgungsbe- trieb oder über Ihre kommunale Entsorgungseinrichtung. Beachten Sie die aktuell geltenden Vorschriften. Setzen Sie sich im Zweifelsfall mit Ihrer Entsorgungseinrichtung in Verbindung. SND 3600 A2...
Behandlung, Gewaltanwendung und bei Eingriff en, die nicht von unserer autorisierten Service-Niederlassung vorgenommen wurden, erlischt die Garantie. Ihre gesetzlichen Rechte werden durch diese Garantie nicht ein- geschränkt. Die Garantiezeit wird durch die Gewährleistung nicht verlängert. Dies gilt auch für ersetzte und reparierte Teile. SND 3600 A2...
Service Schweiz Tel.: 0842 665566 (0,08 CHF/Min., Mobilfunk max. 0,40 CHF/Min.) E-Mail: kompernass@lidl.ch IAN 73761 Erreichbarkeit Hotline: Montag bis Freitag von 8:00 Uhr – 20:00 Uhr (MEZ) Importeur KOMPERNASS HANDELS GMBH BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com SND 3600 A2...
Page 83
KOMPERNASS HANDELS GMBH BURGSTRASSE 21 44867 BOCHUM DEUTSCHLAND / GERMANY www.kompernass.com Last Information Update · Versiunea informaţiilor Stand der Informationen: 09 / 2013 Ident.-No.: SND3600A2-012012-3 IAN 73761...
