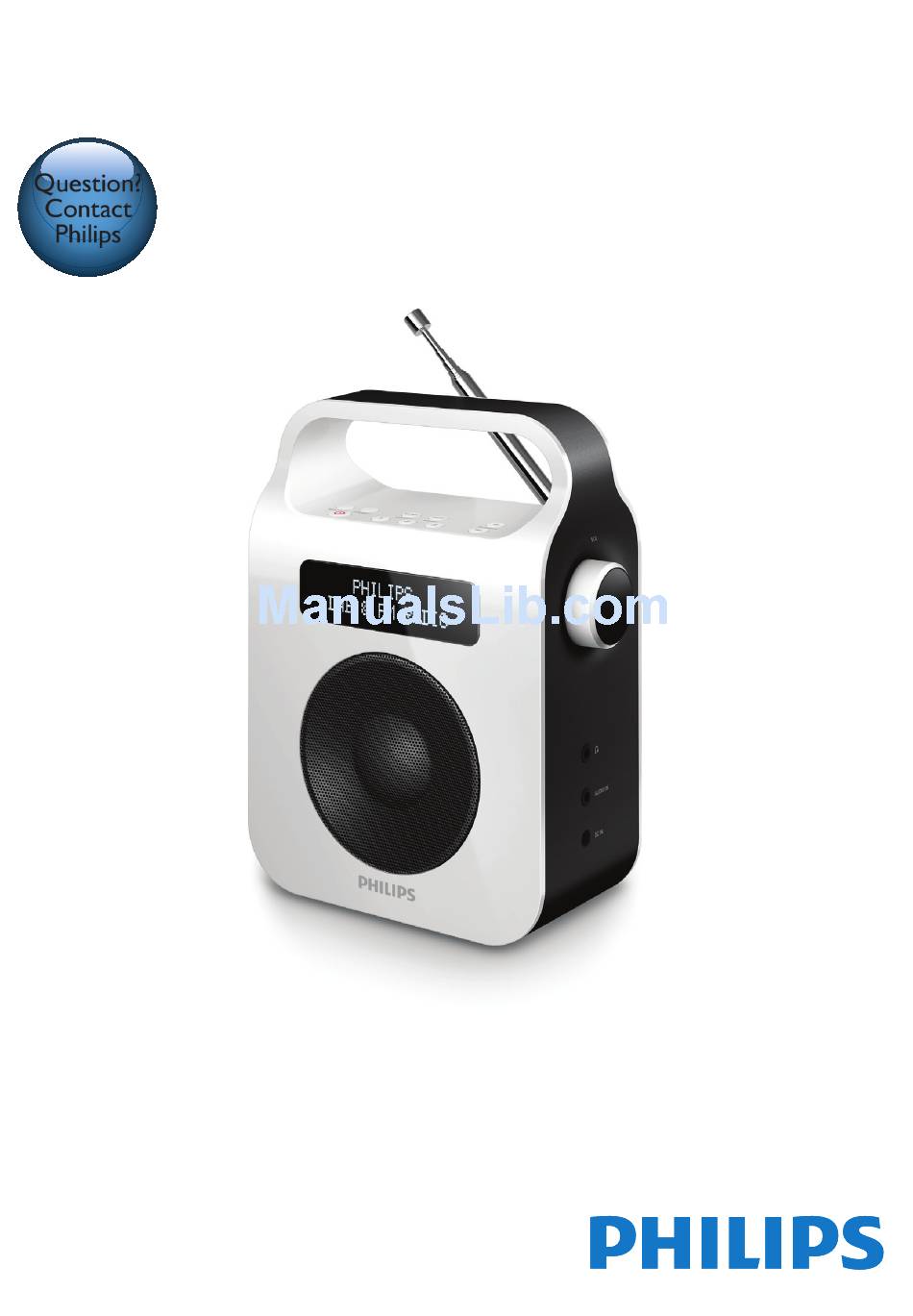

  • Page 1 Always there to help you Register your product and get support at www.philips.com/support AE5600 Question? Contact Philips User manual...

  • Page 3: Table Of Contents

    Contents 1 Important Safety Notice 2 Your Portable Radio Introduction About DAB What’s in the box Overview of the main unit 3 Get started Connect power Turn on 4 Listen to radio Listen to DAB radio Listen to FM radio Use system menu in FM/DAB mode 5 Other features Play audio from an external device...

  • Page 4: Important

    1 Important Safety Warning • To prevent possible hearing damage, do not listen at • Make sure that there is enough free space hight volume levels for long periods. around the product for ventilation. • Only use attachments or accessories The maximum output voltage of specified by the manufacturer.

  • Page 5: Notice

    Be sure to observe the following guidelines when using your headphones. • Listen at reasonable volumes for reasonable periods of time. This symbol on a product means that the • Be careful not to adjust the volume as your product is covered by European Directive hearing adapts.

  • Page 6: Your Portable Radio

    Congratulations on your purchase, and travel, and weather, what’s on now and next, welcome to Philips! To fully benefit from website addresses and phone numbers. the support that Philips offers, register your product at www.philips.com/welcome. For more information on digital radio coverage and services, please visit: www.drdb.org.

  • Page 7: Overview Of The Main Unit

    Overview of the main unit a PRESET • Headphone socket. • In DAB/FM mode, enter programming mode. i VOLUME +/- knob • In DAB/FM mode, enter the • Adjust volume. preset selection menu. j + TUNING - b SOURCE • Tune to a radio station. • Select a source: DAB Mode, FM Mode, • Select a preset number or Auxiliary Input.
  • Page 8 l SCAN/SELECT • Scan radio stations automatically. • Confirm DAB station selection. • Confirm menu selection. • Confirm preset selection. m Antenna • Improve radio reception.

  • Page 9: Get Started

    3 Get started Caution • Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. Always follow the instructions in this chapter in sequence. Connect one end of the AC adapter to the DC input socket on the main unit.

  • Page 10: Turn On

    Open the battery compartment at the back of the unit. Insert four R14/UM-2/C size batteries (not supplied) with correct polarity (+/-) as indicated, then close the battery compartment. » The unit is ready to operate. Caution • A 'Battery low' message is shown when the battery power is low.

  • Page 11: Listen To Radio

    4 Listen to radio Store DAB radio stations automatically In DAB mode, press SCAN/SELECT. • » The unit scans all the available DAB radio stations and broadcasts the first available station. Listen to DAB radio Store DAB radio stations manually Tune to a DAB radio station. Press and hold PRESET to enter Tune to DAB radio stations programming mode.

  • Page 12: Use Dab Menu

    » Signal strength » Program type (PTY) • Select [System] > [Time] > [Auto Sync] > [DAB] » Ensemble Name to set time synchronization.The clock radio will synchronize time with DAB signal. » Channel and frequency » Signal error rate »...

  • Page 13: Use System Menu In Fm/Dab Mode

    Press + TUNING - repeatedly to select a Scan setting preset number, then press SCAN/SELECT • [All stations]: scan all the available to confirm and save the station to the radio stations. corresponding preset number. • [Strong station]: scan stations Repeat steps 1 to 3 to store more favorite with strong signals only.
  • Page 14 Press SCAN/SELECT again. » [No] [Yes] is displayed. Press TUNING +/- to select [Yes] or [No], then press SCAN/SELECT to confirm. [Yes]: reset all the settings to factory • default. • [No]: cancel. Know the software version Enter the system setting menu. Press TUNING +/- until [SW version] (Software version) is displayed.

  • Page 15: Other Features

    5 Other features Play audio from an external device You can listen to audio from an external device through this radio. Connect an audio cable to: • the AUDIO IN socket on the radio. • the headphone socket on the external device. Press to turn on the radio.

  • Page 16: Product Information

    6 Product General information information AC power Model:AS060-059- EE100 (Philips) Input:100-240V~, 50/60Hz 0.15A Note Output: 5.9V • Product information is subject to change without prior Battery 6V, 4x1.5V Size "C"/ notice. R14/UM2 CELL Operation Power < 5 W Consumption Amplifier Standby Power <...

  • Page 17: Troubleshooting

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.
  • Page 18 WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. AE5600_UM_12_V1.0...
