SHIVAKI

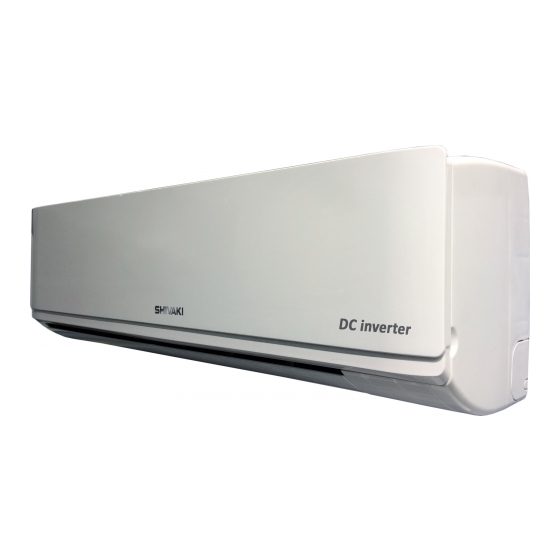

WALL MOUNTED SPLIT-TYPE AIR CONDITIONERS
SERVICE MANUAL
Models
SSH-P076DC/SRH-P076DC
SSH-P096DC/SRH-P096DC
SSH-P126DC/SRH-P126DC
SSH-P186DC/SRH-P186DC
CONTENTS
No.TE150119
···································2
·······························3
············· 10
····························11
·············12
Advertisement
Table of Contents
Related Manuals for Shivaki SSH-P076DC
Summary of Contents for Shivaki SSH-P076DC
-
Page 1: Table Of Contents
SHIVAKI WALL MOUNTED SPLIT-TYPE AIR CONDITIONERS SERVICE MANUAL No.TE150119 Models SSH-P076DC/SRH-P076DC SSH-P096DC/SRH-P096DC SSH-P126DC/SRH-P126DC SSH-P186DC/SRH-P186DC CONTENTS 1. IMPORTANT NOTICE ···································2 2. OPERATION DETAILS ·······························3 3. WIRING DIAGRAM ············· 10 4. EXPLOSION VIEW ····························11 5. PARTS LIST ·············12... -
Page 2: Important Notice
Air Conditioner Service Manual IMPORTANT NOTICE This service manual is intended for use by individuals possessing adequate backgrounds of electrical, electronic and mechanical experience. Any attempt to repair the appliance may result in personal injury and property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with its use. -
Page 3: Operation Details
Air Conditioner Service Manual Operation Details Remote controller TEMP UP button Increase the temperature or time by 1 unit. TEMP DOWN button Decrease the temperature or time by 1 unit. ON/OFF button To switch the conditioner on and off. FAN SPEED button To select the fan speed of auto/low/mid/high. - Page 4 Air Conditioner Service Manual Electronic Controller Safety Protection (1) Time Delay for Safety protection 3 minutes delay for compressor ---The compressor is ceased for 3minutes before restarting to balance the pressure in the refrigeration cycle in order to protect the compressor.
- Page 5 Air Conditioner Service Manual (1) Compressor frequency control According to difference room temperature and set temperature(δt = RT-ST), running frequency of compressor is controlled by electronic controller. When room temperature is much higher than set temperature, compressor will start at a high frequency, and as room temperature goes down, compressor running frequency will go down.
- Page 6 Air Conditioner Service Manual T e m p e r a t u r e u p s e t t i n g 37℃ l o w f a n 34℃ 33℃ b r e e z e 30℃ 25℃...
- Page 7 Air Conditioner Service Manual c o m p r e s s o r O F F 4 - w a y v a lv e O F F o u t d o o r f a n m o t o r O F F 2 0 s 1 0 s...
- Page 8 Air Conditioner Service Manual some reason, when power supply come back again, the AUTO-RESTART function will set synchronously and automatically to work. So the air conditioner would work at the same mode before. Auto-restart Pre-setting (optional): If Auto-restart function is needed, follow the steps below to activate this function: 1) Pulling the air-con's plug out of socket.
- Page 9 Air Conditioner Service Manual Protection display code list: Protection type LED CODE DIGITAL LED CODE higher or lower voltage RUN-winking,TIMER-1 time/8s Over current RUN- winking,TIMER-2 times /8s Discharge temperature RUN- winking,TIMER-4 times /8s Over cooling in cooling mode RUN-light,TIMER-5 times /8s Over heating in cooling mode RUN- light,TIMER-6 times /8s Over heating in heating mode...
-
Page 10: Wiring Diagram
Air Conditioner Service Manual WIRING DIAGRAM MODEL: SSH-P076DC/SRH-P076DC, SSH-P096DC/SRH-P096DC SSH-P126DC/SRH-P126DC, SSH-P186DC/SRH-P186DC INDOOR UNIT: OUTDOOR UNIT... -
Page 11: Explosion View
Air Conditioner Service Manual EXPLOSION VIEW Mode: SSH-P076DC, SSH-P096DC, SSH-P126DC, SSH-P186DC INDOOR UNIT:... -
Page 12: Parts List
Air Conditioner Service Manual INDOOR UNIT:SSH-P076DC Part No. Part Name Q’ty Remark 1080030003 Installation plate 1080320807AC Base 1070020017AA indoor fan 1070100010 Bearing Mount 211230474 Evaporator 1070251611AB Water Drainage Assembly 1070321035 Vertical Vane Assembly 1070251372AE Face frame 1070321022AC Screw cover 1070250106... - Page 13 Air Conditioner Service Manual INDOOR UNIT:SSH-P096DC Part No. Part Name Q’ty Remark 1080030003 Installation plate 1080320807AC Base 1070020017AA indoor fan 1070100010 Bearing Mount 211230474 Evaporator 1070251611AB Water Drainage Assembly 1070321035 Vertical Vane Assembly 1070251372AE Face frame 1070321022AC Screw cover 1070250106 Air filter 1070252211 Display PCB Box...
- Page 14 Air Conditioner Service Manual Model:SSH-P126DC Part No. Part Name Q’ty Remark 1080030008 Installation plate 1080320806AC Base 1070020026AA indoor fan 1070100010 Bearing Mount 211205800 Evaporator 1070321572AC Water Drainage Assembly 1070321035 Vertical Vane Assembly 1070321678AE Face frame 1070321022AC Screw cover 1070320109 Air filter 1070252211 Display PCB box 1090321196...
- Page 15 Air Conditioner Service Manual Indoor Unit- SSH-P186DC Part No. Part Name Q’ty Remark 1080030021 Installation Plate 1070350872AD Base 1070020024AA Cross Fan 1070100010 Bearing Mount 211205865 Evaporator 1070450385AR Water Drainage Assembly 1070350141 Vertical Vane Assembly 1070450900AG Face Frame 1070350135AF Screw Cover 1070450397 Air Filter 1070252211...
- Page 16 Air Conditioner Service Manual EXPLOSION VIEW Mode: SRH-P076DC, SRH-P096DC, SRH-P126DC OUTDOOR UNIT:...
- Page 17 Air Conditioner Service Manual EXPLOSION VIEW Mode: SRH-P186DC OUTDOOR UNIT:...
- Page 18 Air Conditioner Service Manual OUTDOOR UNIT Model:SRH-P076DC Part No. Part Name Q’ty Remark 1071990039 Grille 1080320105 Top cover 211202308A Condenser 1080050004 Outdoor motor supporter 1170040058 Outdoor motor 1070030050AA Propeller fan 1080050001 Left grille supporter 1080320113 Front plate 1080320112 Fan guard 211206855 Compressor and accessories 1120110016...
- Page 19 Air Conditioner Service Manual OUTDOOR UNIT Model:SRH-P096DC Part No. Part Name Q’ty Remark 1071990039 Grille 1080320105 Top cover 211202308A Condenser 1080050004 Outdoor motor supporter 1170040058 Outdoor motor 1070030050AA Propeller fan 1080050001 Left grille supporter 1080320113 Front plate 1080320112 Fan guard 211206855 Compressor and accessories 1120110016...
- Page 20 Air Conditioner Service Manual OUTDOOR UNIT Model:SRH-P126DC Part No. Part Name Q’ty Remark 1071990039 Grille 1080320105 Top cover 211230380 Condenser 1080050004 Outdoor motor supporter 1170040058 Outdoor motor 1070030050AA Propeller fan 1080050001 Left grille supporter 1080320113 Front plate 1080320112 Fan guard 211206855 Compressor and accessories 1120110016...
- Page 21 Air Conditioner Service Manual Model:SRH-P186DC Part No. Part Name Q’ty Remark 1083520101 Grille 1081990056 Top Cover 214115531 Condenser 1081990060 Outdoor Motor Supporter 1170040118 Outdoor Motor 1070030028 Propeller Fan 1081990053 Left Grille Supporter 1081990058 Front Plate 1081990059 Fan Guard 1100060147 Compressor And It Accessories 1120500226 4-way Valve 1120520680...
