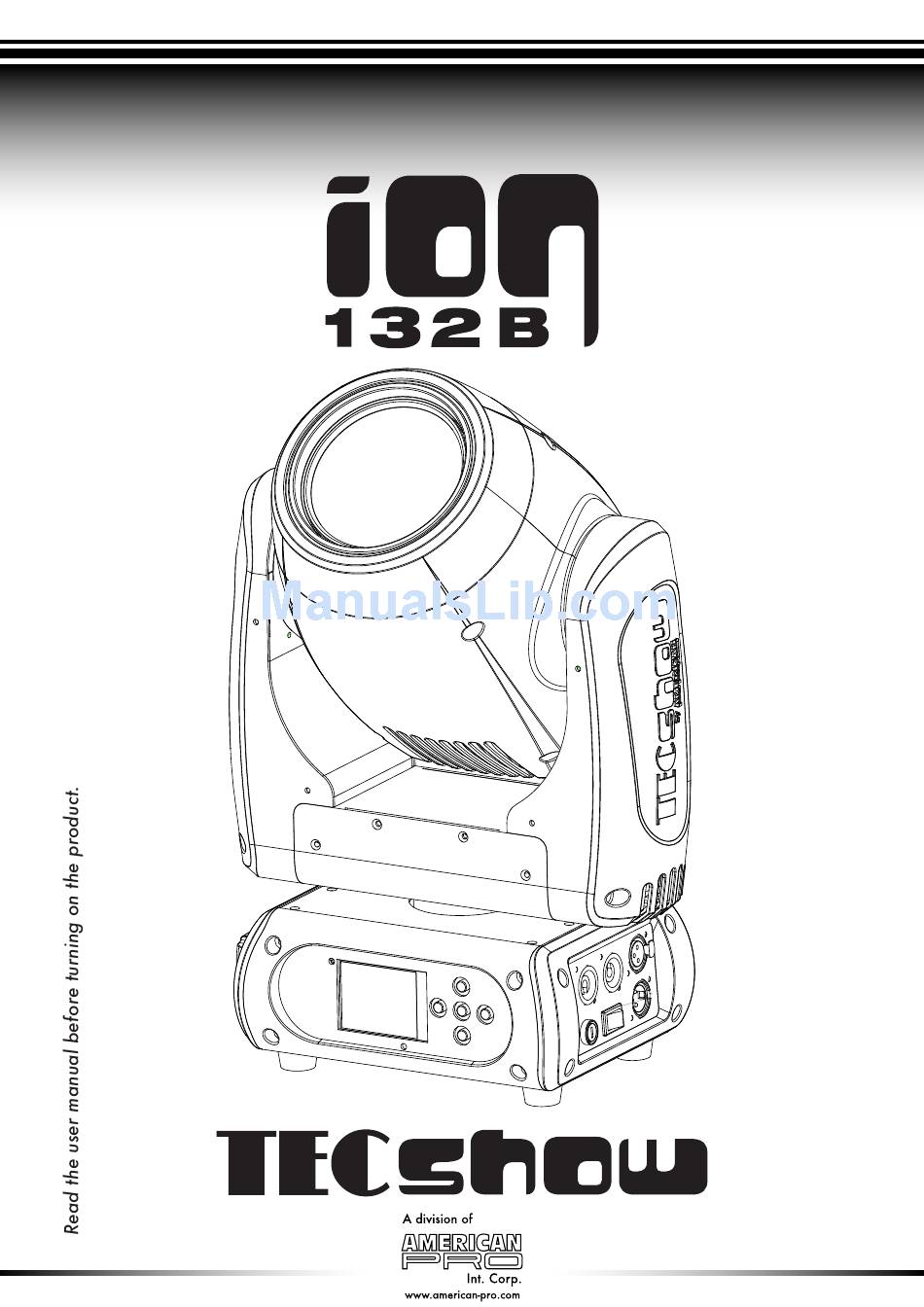

- Page 1 USER MANUAL...
-
Page 2: Safety Instructions
For your own safety, please read this user manual carefully before you initially start-up. INTRODUCTION Thanks for choosing a TECSHOW product. ION Series is built to satisfy the most demanding users. We are confident that our excellent products and service will satisfy you. -
Page 3: Health Hazard
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer. -
Page 4: Operating Determinations
OPERATING DETERMINATIONS This device is a moving-head lighting effect for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 100-240 V, 50/60 Hz and was designed for indoor use only. This device is designed for professional use, e.g. on stages, in clubs, bars, theatres etc. Lighting effects are not designed for permanent operation. - Page 5 damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short- circuit, burns, electric shock, crash etc. 5 ...
-
Page 6: Description Of The Device
DESCRIPTION OF THE DEVICE Features Source Light source: Osram Sirius HRI 132W discharge lamp Lamp life: 10.000 hours Luminous Flux: 6200lumen, 354200lux@5m Control: Remote on/off via DMX Ballast: switching mode power supply Optical System Beam angle: 2° ... - Page 7 Overview Objective lens Base Handle Wireless indicator Display Microphone Left button Down buttom (10) Enter button (11) Up button (12) Right button 7 8 9 1 0 1 1 1 2 (13) 3-PIN DMX input socket (14) 3-PIN DMX output socket (15) Power input (16) Power output...
-
Page 8: Installation
INSTALLATION Installing/Replacing the lamp DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before! For the installation, you need one Osram Sirius HRI 132 W discharge lamp. The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron). -
Page 9: Inserting/Exchanging Gobos
Attention: Please note, the Osram Sirius HRI 132 W lamp is not a hot-restrike type. You must wait approximately 10 minutes before you can attempt to strike the lamp once it has been turned off! Do not operate this device with opened cover! Inserting/Exchanging gobos DANGER! Install the gobos with the device switched off only. -
Page 10: Danger Of Fire
The projector has to be installed out of the reach of people. If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The projector must never be fixed swinging freely in the room. Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the projector! Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector's... - Page 11 The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions! Install the safety bond by inserting the quick link in the hole on the bottom of the base. Pull the safety bond over the trussing system etc. Insert the end in the quick link and tighten the fixation screw. The maximum drop distance must never exceed 20 cm.
-
Page 12: Dmx-512 Connection / Connection Between Fixtures
DMX-512 connection / connection between fixtures Projector 1 Projector 2 Projector 3 Starting address 1 Starting address 20 Starting address 39 120 Ohms DMX-512 Controller The wires must not come contact with each other, otherwise the fixtures will not work at all, or will not work properly. Please note, the starting address depends upon which controller is being used. -
Page 13: Connection With The Mains
Connection with the mains Connect the device to the mains with the enclosed power supply cable. The occupation of the connection-cables is as follows: Cable International Brown Live Blue Neutral Yellow/Green Earth The earth has to be connected! If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation. -
Page 14: Dmx-Protocol
Note: After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX-input, the display will flash. This situation can occur if: - the XLR plug (cable with DMX signal from controller) is not connected with the input of the device. - the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector. - Page 15 Function Indexed With BackOut Forward Spin Reverse Spin Continuous Color Bounce Indexed & Indexed With BackOut&Color Bounce Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Position 9 Position 10 Color Position 11 Position 12 Position 13...
-
Page 16: Control Board
Position 14 Position 15 Position 16 Position 17 Position 18 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Continuous Positioning from 0-360 degrees Prism Position 1 (Open) Prism & Prism Rot Forward Spin Prism Rot Stop to fastest Prism Rot Reverse Spin Stop to fastest... - Page 17 ON/OFF DMX C ontrol DMX c ontrol o r n ot Max ℃ /176~282℉, Lamp o ff i f ℃, 1 20 2 48 ℉ Temperature① ...
- Page 18 Users User M ode① Standard Standard Extended 1 mode(16bit) Extended 2 Extended m ode 1 User Extended m ode 2 User ...
- Page 19 cables must be disconnected. Light MaxTemperate With this function you can set the inside temperature at which the projector will automatically switch the lamp off. Press Up or Down to select the maximum inside temperature between 80 °C and 139 °C. Inside temperatures below 90 °C are not critical.
-
Page 20: Mic Sensitivity
Short-cut: Press “up” and “down” for three seconds to flip the display directly. Brand Show With this function you can show or hide the brand name 'TECSHOW ' on the display during menu operation, but still show it after reset. - Page 21 Fixture ID With this function you can call up various submenus via RDM. This device is RDM ready. RDM stands for "Remote Device Management" and makes remote control of devices connected to the DMX-bus possible. ANSI E1.20-2006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol.
-
Page 22: Rec. Controller
With this function, you can define the device as slave. You can choose one of three different Slave programs. For further information see „Edit Chase”. Sequence With this function, you can run the internal program. You can select the desired program under “Select Chase”. -
Page 23: Error Messages
4. Program selection for Edit Program • Select “Edit Chase” by pressing Up or Down. • Press the Enter-button to confirm. • Select “Edit Chase” by pressing Up or Down. • Press the Enter-button to confirm. • Press Up or Down to select the desired program. With this function you can edit specific scenes into a specific program. -
Page 24: Cleaning And Maintenance
same time, you may see the error messages flash repeatly for 2 times, and then the fixture will generate a reset signal, all the stepper motors will reset. If the error messages maintain after performing reset more than 2 times, only the channels which have errors can not work properly, others can work as usual. -
Page 25: Technical Specifications
Before replacing the fuse, unplug mains lead. Procedure: Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anti- clockwise). Step 2: Remove the old fuse from the fuse holder. Step 3: Install the new fuse in the fuse holder. Step 4: Replace the fuse holder in the housing and fix it.
