Assembly instruction manual for MINI BAJA DUNE65
Please carefully before assembling your MINI BAJA DUNE65 Go kart.
General Instructions
Please follow the assembly steps given in this manual for assembly
Please check first all the hardwares are fixed at the proper locations
Always first tighten manually and then by wrench for proper assembly
Please ensure full tightening of bolts/ nuts to get the proper torque on the hardware for safety
If nuts / bolts are not tightened properly, it can result into loosening and accidents while
driving the "DUNE65"
It may be required to have 2 people for assembly of "DUNE65"
Assembly procedure
Step 1

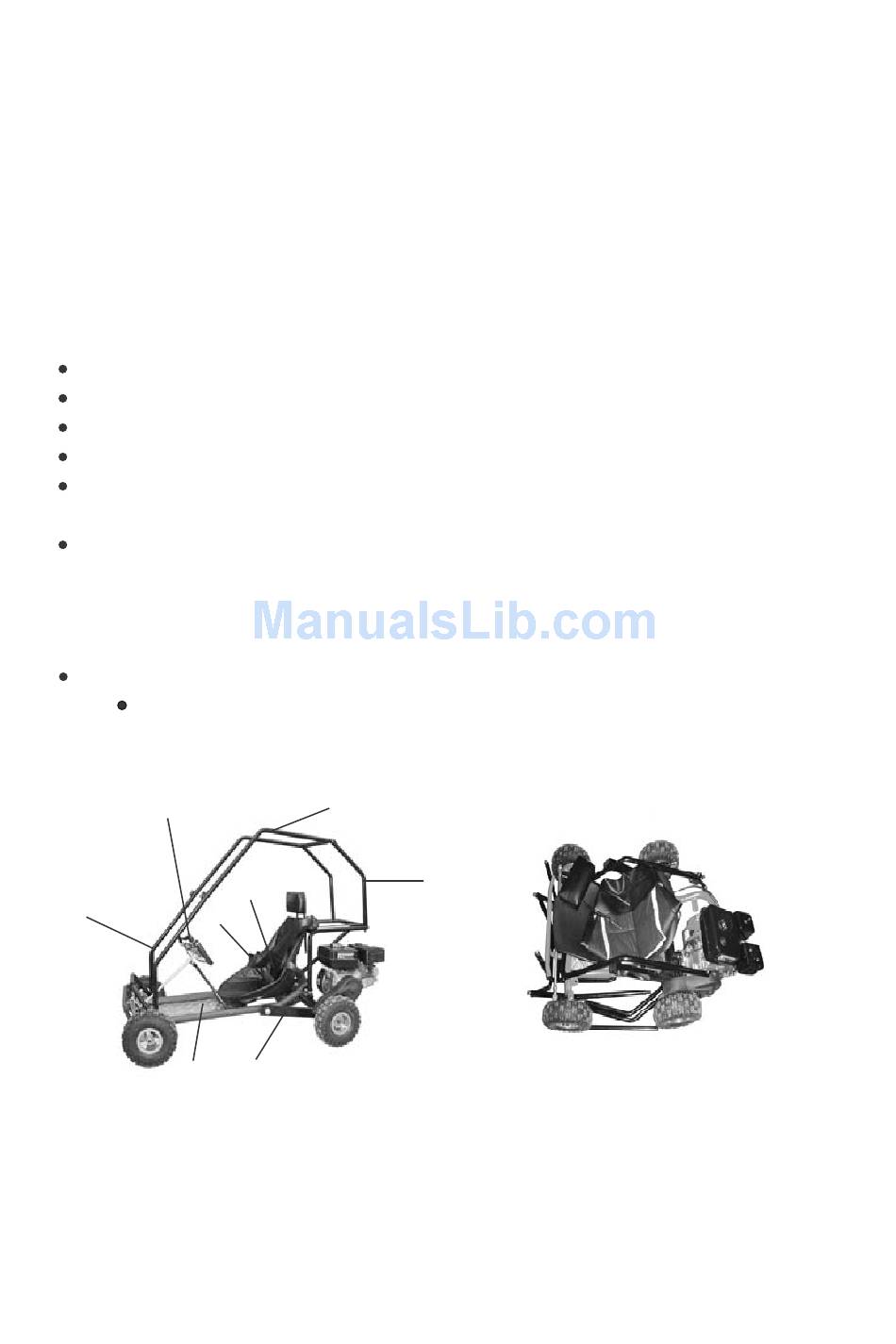

Please open the box carefully and you will find the loose parts as shown in picture
below
3
5 5
Parts Loose
1. Swing Arm with engine mounted
3. Steering Pad in sliding down condition 4. Rear brush guard
5. Front brush guard bottom
7. Seat with cover
BAJA MOTORSPORTS
6
7
8
2
1
4
2. Frame with aluminum footboard and steering pad
6. Front brush guard top
8. Seat belt
