  • Page 1 Hammerhead Off-Road Scooters Owners Book Model: Jet 50, Fox 50, Thunder BIke 50 Thunder Bike 150...
  • Page 2 DEAR USERS: WE WOULD LIKE TO INFORM YOU THAT UNDER OUR STRICT QUALITY CONTROL SYSTEM FOR THE PRODUCTION OF OUR SCOOTERS, WE OFFER A COMPLETE GUARANTEE AS INDICATED IN THE GUARANTEE BOOKLET ISSUED BY OUR DEALER. OUR SCOOTER MUST UNDERGO ALL PERIODIC MAINTENACE AND SERVICES.

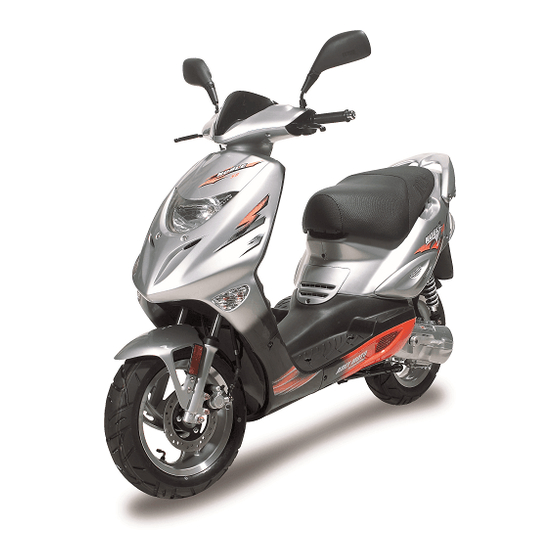

  • Page 3 THUNDER BIKE 50 THUNDER BIKE 150...
  • Page 4 FOX 50 JET 50...

  • Page 5: Table Of Contents

    CONTENT SPECIFICATION………………………………………………………… 1 IDENTIFICATION NUMBERS RECORD……………………………… 5 PARTS NAME AND LOCATION ………………………………………. 6 USER’S GUIDE ………………...……………………………………… MAINTENANCE & INSPECTION……………………….…………… 22 PRE-OPERATION CHECK ………….………………………………… 33 SAFE RIDING TIPS………….………………………………………… 35 VIN NUMBER AND SERVICE RECORD………….…………………...
  • Page 6 SPECIFICATION MODEL TB-50 SS-50 ST-50 TB-100 SS-100 ST-100 OVEREALL LENGTH 1780 (70.08in) 1780 (70.08in) OVEREALL WIDTH 675 (26.57in) 675 (26.57in) OVEREALL HEIGHT 1160 (45.67in) 1160 (45.67in) BASSIC WEGHTE 77 (169.76lb) 77 (169.76lb) CYLINDER TYPE HORIZONTAL HORIZONTAL DISPLACE MENT 49.26 95.57...

  • Page 7: Specification

    SPECIFICATION MODEL TB-125 SS-125 ST-125 TB-150 SS-150 ST-150 OVEREALL LENGTH 1780 (70.08in) 1780 (70.08in) OVEREALL WIDTH 675 (26.57in) 675 (26.57in) OVEREALL HEIGHT 1160 (45.67in) 1160 (45.67in) BASSIC WEGHTE 77 (169.76lb) 77 (169.76lb) CYLINDER TYPE HORIZONTAL HORIZONTAL DISPLACE MENT COMPRESSION RATIO ENGINE COOLING AIR COOLED AIR COOLED...
  • Page 8 SPECIFICATION MODEL JET-50 SF-50 JET-100 SF-100 1730 （68.11in） 1730 （68.11in） OVEREALL LENGTH OVEREALL WIDTH 680（26.77in） 680（26.77in） OVEREALL HEIGHT 1100（43.30in） 1100（43.30in） BASSIC WEGHTE 75 (165lb) 75 (165lb) CYLINDER TYPE HORIZONTAL HORIZONTAL DISPLACE MENT 49.26 95.57 COMPRESSION RATIO ENGINE COOLING AIR COOLED AIR COOLED LUBRICATION BY OIL PUMP...
  • Page 9 SPECIFICATION MODEL PAN-50 PAN-100 1800 （70.86in） 1800 （70.86in） OVEREALL LENGTH OVEREALL WIDTH 785（30.90in） 785（30.90in） OVEREALL HEIGHT 1290（50.78in） 1290（50.78in） 83 （182.6lb） 83 （182.6lb） BASSIC WEGHTE CYLINDER TYPE HORIZONTAL HORIZONTAL DISPLACE MENT 49.26 95.57 COMPRESSION RATIO ENGINE COOLING AIR COOLED AIR COOLED LUBRICATION BY OIL PUMP BY OIL PUMP...
  • Page 10 SPECIFICATION MODEL SF-50 PAN-50 1730 （68.11in） 1800 （70.86in） OVEREALL LENGTH OVEREALL WIDTH 680（26.77in） 785（30.90in） OVEREALL HEIGHT 1100（43.30in） 1290（50.78in） 83 （182.6lb） BASSIC WEGHTE 75 (165lb) CYLINDER TYPE HORIZONTAL HORIZONTAL DISPLACE MENT 49.5 49.5 ENGINE COOLING AIR COOLED AIR COOLED LUBRICATION BY OIL PUMP BY OIL PUMP NUBER OF STROKE IGNITION...

  • Page 11: Identification Numbers Record

    IDENTIFICATION NUMBERS RECORD 1. KEY NUMBER YOUR KEY IDENTIFICATION NUMBER IS ENGRAVED ON YOUR KEY AS SHOWN IN TH ABOVE ILLUSTRATION. RECORD THIS NUMBER AT THE SPACE PROVIDED FOR REFERENCE IF YOU NEED A NEW KEY. 2. ENGINE NUMBER RECORD YOUR ENGINE NUMBER IIN THE SPACE PROVIDED TO ASSIST YOU IN ORDERING SPARE PARTS FROM ADLY DEALER OR FOR REFERENCE IN CASE YOUR VEHICLE IS STOLEN.

  • Page 12: Parts Name And Location

    PART NAME AND LOCATION 1.REAR MIRROR 11.HEAD LAMP 2.RIGHT HANDLE BAR SWITCH 12.SPEEDOMETER 3.THROTTLE GRIP 13.LEFT HANDLE BAR SWITCH 4.FRONT BEAKE LEVER 14.REAR BRAKE LEVER 5.FRONT TURN SIGNAL LAMP 15.MAIN STAND 6.SEAT 16.SEAT LOCK 7.BRAKE LAMP 17.REAR LAMP 8.MAIN SWITCH 18.HELMET BOX 9.STEERING LOCK 19.BATTERY BOX...

  • Page 13: User's Guide

    USER’S GUIDE MAIN SWITCH BETWEEN ON AND OFF POSITION. “*” POSITION IS FOR CHECKING LUBRICATION OIL WARNING LAMP WHEN THE KEY STAY AT “*” POSITION OIL WARNING LIGHT WILL ILLUMINATE. IF RHE ELECTRIC BULB BREAKS, PLEASE CONTACT OUR AFTER SALES SERVICE THE FOR REPLACEMENT. MAIN SWITCH LOCATION CAN THE KEY BE LOCATION...
  • Page 14 KICK STANTER AND AIR CLEANER KICK STARTER WHEN THE ELECTRIC START DOES NOT WORK, PLEASE USE THE KICK STARTER INSTEAD. PLEASE LOCATE THE SCOOTER WITH MAIN STAND AND USE THE KICK START. WARNING ! WHEN STARTING ON THE SLOPE AND BUMPED ROADS, PLEASE LIFT UP THE MAIN STAND AND MAKE SURE THE REAR WHEEL IS OFF-LAND, THEN HOLD THE REAR BRAKE LEVER TIGHTLY TO AVOID OSING CONTROL.
  • Page 15 IMPORTANCE FOR STARTING START BUTTON IMPORTANCE FOR STARTING 1. MAKE SURE THE FUEL TANK IS FILIED UP (PLEASE USE UNLEAD GASOLINE). 2. CHECK THE OIL LEVEL (PLEASE USE LUBRICANT OIL). 3. MAKE SURE THE KEY TURNS TO “ON” POSITION. 4. HOLD THE BRAKE LEVER AND PUSH THE ELECTRIC STARTER BUTTON OR KICK STARTER.
  • Page 16 BATTERY AND FUSE 1. THE BATTERY OF TB 50/100 IS UNNECESSARY TO REFILL WATER. 2. REPLACE THE BATTERY PLEASE REMOVING HELEMET BOX MAT AND. BATTERY COVER, THEN TAKE OFF CABLE SO CAN REMOVE THE BATTERY. 3. THE FUSE IS NEAR THE BATTERY, ITS FUNCTIONS IS TO PROTECT THE ELECTRIC PARTS AND AVOID DAMAGES CAUSED BY SHORTCIRCUTT OR POWER OVER-LOAD IF THE MELT, THERE MAY BE SOMTHING IN THE ELECTRIC WIRES OR THE ELECTRIC PARTS DO NOT WORK COOECTLY.
  • Page 17 DASH BOARD TB/SS/ST-50/100 TB/SS/ST-125/150...
  • Page 18 SPEEDOMETER FUEL LEVEL METER ODOMETER HIGH BEAM LIGHT, WHEN YOU SWITCH ON THE HIGH BEAM, THE LIGHT WILL BE ON. (BLUE) OIL WARNING LIGHT(RED) TURN THE MAIN SWITCH TO THE “＊” POSITION BETWEEN “ON” AND “OFF”, THE OIL WARNING LIGHT WILL ILLUMINATE AT ONCE, AND THEN STOPS. A DIFFERENT APPROACH MAY CAUSE ABNORMAL REACTIONS, PLEASE TAKE THE VEHICLE TO THE DEALER FOR DETAILED EXAMINATION.
  • Page 19 NOMENCLATURE & OPERATION INSTRUMENTPANEL(2T) HIGH BEAM SIGNAL INDICATOR LIGHT IMDICATOR LIGHT OIL INDICATOR LIGHT MILEAGE SPEED POINTER FUEL POINTER...
  • Page 20 NOMENCLATURE & OPERATION INSTRUMENTPANEL(4T) SIGNAL HIGH BEAM SIGNAL IMDICATOR INDICATOR IMDICATOR LIGHT LIGHT LIGHT MILEAGE SPEED POINTER FUEL POINTER...
  • Page 21 NOMENCLATURE & OPERATION INSTRUMENTPANEL 50/100 2T SPEED POINTER MILEAGE SIGNAL INDICATOR LIGHT SIGNAL INDICATOR LIGHT OIL INDICATOR LIGHT FUEL POINTER...
  • Page 22 NOMENCLATURE & OPERATION INSTRUMENTPANEL 50 4T MILEAGE SPEED POINTER OIL INDINATOR LIGHT SIGNAL INDICATOR LIGHT HIGH BEAM INDICATOR LIGHT FUEL POINTER...
  • Page 23 BATTERY REPLACEMENT PLEASE USE A SUITABLE CHARGER, MAX OUTPUT : 0.4~1A. TOO MUCH AMPERES WILL DAMAGE THE BATTERY. WE SUGGEST TO ASK THE DEALER DO THE BATTERY CHARGING. WHEN CONNECTING THE BATTERY, PLEASE CONNECT THE RED WIRE WITH THE MARK (+) AND THE BLACK WIRE WITH THE MARK (-) OF THE BATTERY, PLEASE NOTE, CONNECT RED WIRE (+) FIRST, THEN THE BLACK WIRE (-).
  • Page 24 1. SEAT LOCK THE KEY SAME AS THE MAIN SWITCH KEY. INSERT THE KEY AND TURN RIGHT, THE SEAT WILL BE OPEN INSTANTLY. WHEN PUSH DOWN THE SEAT COVER, THE SEAT WILL BE LOCKED AUTOMATICALLY. ATTN! PLEASE DO NOT LEAVE THE KEY INSIDE THE COMRPATMENT; OTHERWISE THERE IS NO WAY TO TAKE THE KEY OUT.
  • Page 25 1. LH HANDLE BAR SWITCH SIGNAL LAMP SWITCH ：RIGHT TURN SIGNAL LAMP ：LEFT TURN SIGNAL LAMP ：LOW BEAM ：HI BEAM REAR BRAKE LEVER WHEN START THE ENGINE, THE REAR BRAKE LEVER MUST BE HELD TIGHTLY. HORN EC 50/100 WILL SOUND OFF WHEN PUSH. RIGHT HANDLE BAR SWITCH HEAD LAMP SWITCH (EC) ：...
  • Page 26 10-20mm 10-20mm BRAKE INSTRUCTIONS 1. BEFORE BRAKING, RELEASE THE THROTTLE GRIP AND APPLY THE FRONT AND REAR BRAKES GRADUALLY IN ORDER TO INCREASE BRAKE EFFICIENCY. 2. AVOID SUDDEN BRAKING, OR THE SCOOTER WILL SKIP OR OVERTURN. 3. BRAKING CAN BE EXTREMELY DIFFICULT WHILE RIDING ON THE METAL SURFACES, CONSTRUCTION SITES, MAN-HOLE COVERS, TRAMP RAILS AND WET ROADS, PLEASE SLOW DOWN AND PAY SPECIAL ATTENTION WHILE APPLYING BRAKE UNDER THESE CONDITIONS.
  • Page 27 INSPECTION OF BRAKE FLUID 1. CHECK THE BRAKE FLUID LEVEL. IF IT IS BELOW THE LOWER SCALE, PLEASE REFILL BRAKE FLUID IMMEDIATELY. 2. ALWAYS USE DOT #3 OR DOT #4 BRAKE FLUIDS. ☆ WHEN RIDING WITH LOWER SCALE BRAKE FLUID, THE BRAKE MAY DISFUNCTION. ☆...
  • Page 28 COMPARTMENT AND REAR CARRIER ☆ 1. THE MAXIMUM COMPARTMENT LOAD IS 10 KILOGRAMS. ☆ 2.NEVER PUT INFLAMNABLES OR LOW HEAT-RESISTING ITEMS IN THE COMPARTMENT. 3. NEVER PUT EASILY BROKEN ITEMS IN THE COMPARTMENT. 4. NEVER PUT VALUABLES IN THE COMPARTMENT. 5.
  • Page 29 FUEL TANK FUEL TANK OIL TANK 1. WHEN THE FUEL INDICATOR IS ON “E” POSITION, YOU SHALL REFILL THE TANK IMMEDIATELY. 2. THE FUEL INJET IS UNDER THE SEAT. 3. PUSH THE CAP ON BOTH SIDE TO OPEN THE CAP. 4.
  • Page 30 TIRE 1. TIRE PRESSURE AFFECTS RIDING PERFORMANCE, APPROPRIATE PRESSURE WILL MAKE RIDING SMOOTHER. 2. CHECK FOR ANY CRACK OR HEAVY WORN-OUT THEN REPLACE IT WITH NEW ONES, IF WORN-OUT EXCEEDS THE LIMIT. 3. FRONT TIRE PRESSURE：2.0 kgf/ , REAR TIRE PRESSURE：2.25 kgf/ FRONT TIRE PRESSURE：1.5 kgf/ , REAR TIRE PRESSURE：1.75 kgf/ RONT TIRE PRESSURE：1.25kgf/...
  • Page 31 GEAR OIL’S REPLACEMENT DRAIN BOLT REFILL BOLT 1. CHANGE OF GEAR OIL SHOULD BE PERFORMED AFTER THE FIRST 1000 KILOMETERS RIDING， THEN OIL SHOULD BE CHANGED EVERY 5000 KILOMETERS. 2. GEAR LUBRICANT CODE SAE 85W/90. 3. GEAR LUBRICANT INLET LOCATES AT THE LEFT HAND SIDE OF REAR WHEEL AND THE UPPER OF CRANKCASE.
  • Page 32 PREVIOUSLY INSPECTION FOR THE SAKE OF SAFETY AND TO PREVENT VEHICLE DAMAGE, THE PREVIOUSLY INSPECTION IS ABSOLUTELYREQUIRED. CAUTION: THE TEMPERATURE OF ENGINE AND EXHAUST MUFFLE IS VERY HIGH. BE CAREFUL WHILE CHECKING ENGINE OIL TO AVOID BURNS. A. ENGINE OIL CHECK、REFILLING ＆ CHANGE CHECK ENGINE OIL 1.
  • Page 33 ENGINE OIL CHANGE CHANGE ENGINE OIL AT FIRST 300 KM AND THEN CHANGE AT EVERY 2000KM. ENGINE OIL CAPACITY： 0.7 LITER CHANGE METHOD: REMOVE THE OIL GAUGE. REMOVE THE OIL DRAIN SCREW AND DRAIN THE OIL.(THE OIL WILL DRAIN MORE EASILY WHEN THE ENGINE IS WARM) REMOVE THE SCREW OF OIL FILTER.
  • Page 34 GEAR OIL CHANGE Change recommended oil (SAE#90) 300km and then change at every 6 months or 5000KM. The total capacity is 110c.c. Change method ： 1. Place the vehicle on its main stand on level ground. 2. Remove gear oil drain plug. 3.
  • Page 35 PREVIOUSLY INSPECTION FRONT BRAKE FLUID LEVEL CHECK THE FLUID LEVEL： MAKE THE HANDLEBAR STRAIGHT AND CHECK THE FLUID BRAKE FLUID TANK FOR BRAKE FLUID LEVEL WHICH SHALL BE KEEP BETWEEN THE UPPER AND LOWER LIMITS. BRAKE FLUID REFILLING： 1. MAKE THE HANDLEBAR STRAIGHT AND THEN REMOVE 2 LOCKING SCREW ON THE BRAKE FLUID TANK AND TAKE OFF THE COVER.
  • Page 36 CHECK BRAKE LIGHT： TURN MAIN SWITCH TO “ON” POSITION. APPLY BOTH BRAKE/LEVERS SEPARATELY FOR FRONT AND REAR WHEELS TO SEE IT BRAKE LIGHT FUNCTIONS NORMALLY.

  • Page 37: Pre-Operation Check

    INSPECTION OF SPARK PLUG 0.6~0.7mm BR7HS/BPR7HS 1. DISCONNECT THE H.T. COIL FROM THE SPARK PLUG CAP AND TWIST COUNTERCLOCKWISE, THE SPARK PLUG WILL COME OUT. 2. WHEN RE-ASSEMBLING, MAKE SURE THAT SPARK PLUG WILL BE SECURELY GUIDED INTO THE THREADED HOLE. 3.
  • Page 38 BEFORE OPERATING THE SCOOTER, THE FOLLOWING POINTS MUST BE FOLLOWED INSPECTION ITEMS DESCRIPTIONS FRONT BRAKE CHECK WHETHER THE BRAKE ARE NORMAL. REAR BRAKE TIRE 1. CHECK WHETHER AIR PRESSURE IS PROPER 2. CHECK WHETHER TIRES ARE DAMAGED OR CRACKED LAMP 1.CHECK WHETHER BRAKE LAMP FUNCTIONS NORMALLY 2.CHECK WHETHER SIGNAL LIGHTS FUNCTION NORMALLY CHECK WHETHER ALL THE LENS ARE CLEAN AND SHINY...
  • Page 39 LUBRICATION OIL WHEN THE OIL LIGHT IS ON, IT MEANS THAT YOU HAVE TO ADD THE DESIGNATED ADLY MOTOR OIL ASAP, AND THEN THE LIGHT WILL GO OFF AFTER REFILL. SUMMARY OF INSTRUCTIONS FOR LUBRICATION ITEM TIME TIME AND AFTER LUBRICANT REAR BRAKE CAM 3,000KM...
  • Page 40 PERIODICAL CHENK & SERVICES ITEM Regular Service Mileage (KM) 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 Engine Oil Oil Filter Fuel Filter Brake System Valve Gap Drive Belt Air Cleaner Change element at every 5000 Km or if necessary Nuts, Bolts Gear Oil Carburetor...

  • Page 41: Safe Riding Tips

    SAFE RIDING TIPS : GIVE A CLEAR SIGNAL AT THE FOLLOWING INSTANCES : SAFE RIDING TIPS. 1. BRAKING MAY BE DIFFICULT ON WET ROADS, SO PLEASE AVOID SUDDEN BRAKE, OR THE SCOOTER WILL SLIP OR OVERTURN. 2. ALWAYS SLOW DOWN WHEN YOU ARE APPROACHING A TURN. 3.

  • Page 42: Vin Number And Service Record

    VIN NUMBER AND SERVICE RECORD PLEASE RECORD THE FRAME AND ENGINE NUMBER FOR REFERENCE. THE FRAME NUMBER (VIN) IS STAMPED IN THE FRONT OF VEHICLE. TBSS/ST FRAME NO. RFL FRAME NUMBER THE ENGINE NUMBER IS ENGRAVED ON TOP OF LEFT CRANKCASE. ENGINE NO._________________________ ENGINE NUMBER RAME NO.
  • Page 43 INSPECTION AND SERVICE DATE PURCHASED: _________________ AUTH. DEALER:______________________ INSPECTION(1) INSPECTION(2) DATE:__________________ DATE:__________________ ___________________ ___________________ DEALER DEALER INSPECTION(3) INSPECTION(4) DATE:__________________ DATE:__________________ ___________________ ___________________ DEALER DEALER INSPECTION(5) INSPECTION(6) DATE:__________________ DATE:__________________ ___________________ ___________________ DEALER DEALER...
  • Page 44 INSPECTION AND SERVICE INSPECTION(7) INSPECTION(8) DATE:__________________ DATE:__________________ ___________________ ___________________ DEALER DEALER INSPECTION(9) INSPECTION(10) DATE:__________________ DATE:__________________ ___________________ ___________________ DEALER DEALER INSPECTION(11) INSPECTION(12) DATE:__________________ DATE:__________________ ___________________ ___________________ DEALER DEALER...
  • Page 45 IMPORTANT NOTE HEREWITH WE ADVISE THE USER THAT WHATEVER MODIFICATIONS TO THE ENGINE OR TO THE PARTS WITH THE PURPOSE OF INCREASING EITHER THE SPEED OR THE HORSE POWER, ARE STRICTLY PROHIBITED BY THE LAWS. PLEASE ALWAYS CONSULT THE PROFESSIONALS AT THE DEALER’S STATION ABOUT ANY MODIFICATIONS TO ENGINE OR PARTS.
