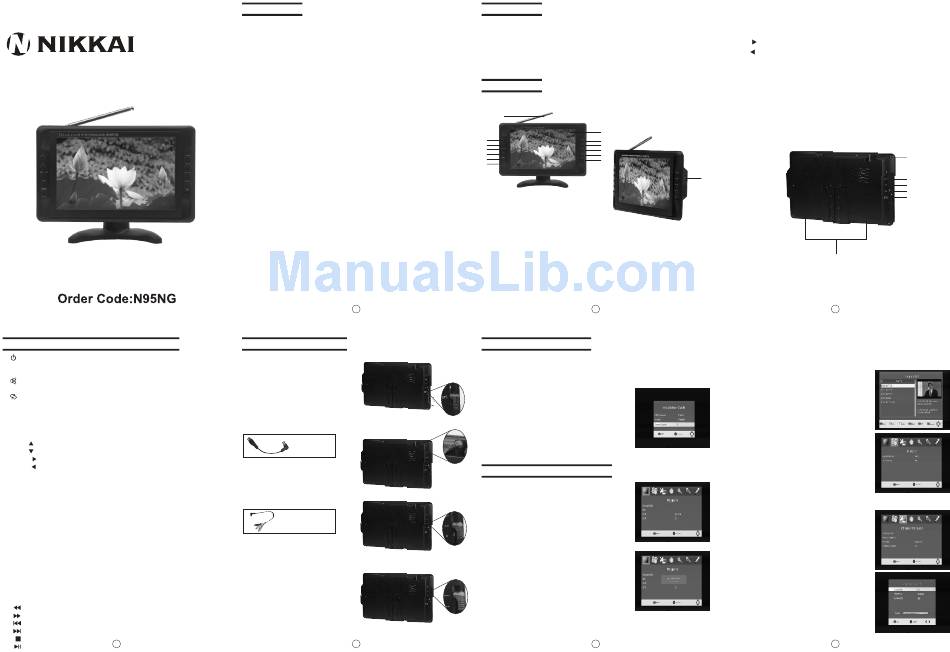

LCD Color Television Receiver
User's manual
4. Description of Buttons on Remote Control
1.
: Standby/power-on key.
2. MODE: Press to switch between DTV/AV.
3. SEARCH: Automatic search channel when press the key more 3 seconds
4.
: Mute key.
5. 0-9: Digit keys. Press the key to enter channel directly.
6.
: Return key.
7. FAV: ON/OFF my favor channel function. (only available under DTV mode)
8. LIST: Display program list.
9. INFO: Display current Channel information.
10. EPG: press to display electronic program guide (only available under DTV mode).
11. OK: Confirm key.
12. CH+
: Channel selection/upward key.
13. CH-
: Channel selection/downward key.
14. VOL+
: Volume up/rightward key.
15. VOL-
: Volume down/leftward key.
16. AUDIO: Sound track switch key.
17. MENU: Menu key.
18. EXIT: return key; press to exit current menu and return to previous menu.
19. TV/RADIO: TV channel and radio channel switch key.
20. "RED" key: Corresponding menu red function key.
21. "GREEN" key: Corresponding menu green function key.
22. "YELLOW" key: Corresponding menu yellow function key.
(Under DTV mode,
press this key to switch aspect ratio)
23. "BLUE" key: Corresponding menu blue function key.
(Under DTV mode,press
the key for timing burn function)
24. P . ADJ: Picture adjustment key (only available under DTV mode).
Note: Under Menu surface, press this key will not have function..
25. PICT: Picture mode key, press for "STANDARD", "SOFT", "VIVID", "LIGHT",
"PERSONAL".
26. SLEEP: sleep turn off time setting key.
27. SUBTITLE: Press to turn ON/OFF subtitles.
28. TEXT: Turn teletext function.
29.
: Fast Backward.
30.
: Fast Forward.
31.
: Last key.
32.
: Next key.
33.
: Stop key.
4
34.
: Play/Pause button.
1. Precautions
1. Storage
※
Keep this product away from extremely hot or cold places. The storage
temperature ranges from -20℃ to 60℃ and the working temperature from
-5℃ to 40℃.
※ Do not use this product in damp environments like bathrooms, steam rooms,
Swimming pools or any area with high humidity.
※ Do not expose your TV set to high humidity, dust or oil smoke.
※ Do not throw or drop this product.
※ Do not insert items inside the case or subject to strong vibrations or shocks.
※ Do not push on or scrub this product with sharp objects.
2. Maintenance
※ Disconnect all cables of this device before cleaning.
※ Wipe the enclosure, screen and keys using soft cloth with a little soft detergent
if required.
※ Do not use polishing cloth, or chemical cleaners to clean this unit. Detergents like
alcohol and benzene based products will damage your device.
Warning!
※ It is very dangerous to watch television programs or operate the TV set while
driving. Ensure you comply with relevant legislation regarding the use of Tvs
in vehicles.
Special Notice
Bright spots or dark spots may appear on the screen over time. This is a normal
phenomenon associated with the active matrix display technology and is not a
sign of malfunction. Do not attempt to repair this device yourself. For any failures,
please turn off your TV set Immediately and contact us or your dealer. This device
integrates a great deal of precision electronic Components, disassembly or alteration
may result in damages or breakages.
1
5. Basic Operation Methods
1. Connection of Power Supply:
Align the power supply plug on AC
adapter with the jack on the machine
rear cover marked with DC.
2. Connection of Antenna Cable:
75ohm antenna
conversion line
Align one end of the attached antenna cable
plug in the antenna jack on TV set and the
other end plug in the external antenna jack.
3. Connection of AV convert Cable:
AV conversion cable
3.1.AV input: Insert the external video
cord into the yellow port of the AV convert
cable, the left sound track into the white
port and the right sound track into the red
port. Then plug the AV convert cord in
AV IN jack.
3.2.AV output: Insert the external video
cord into the yellow port of the AV convert
cable, the left sound track into the white
port and the right sound track into the red
port. Then plug the AV convert cord in
AV OUT jack(AV OUT only in CARD mode) .
5
2. Accessories
1. Car adapter
4. AV conversion cable
5. Remote control
2. AC adapter
3. 75 ohm antenna conversion cable
6. Telescopic antenna
Open the package and make sure all the items are included.

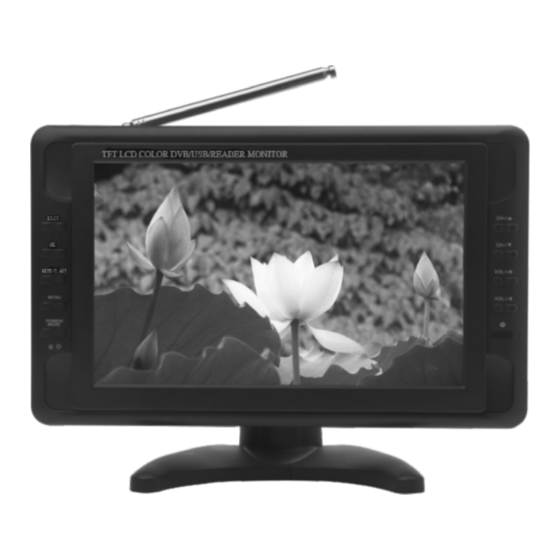

3. Appearance
1
8
2
9
3
10
4
11
5
12
6
13
7
1. Telescopic antenna
2.
EXIT:
Return button
3. OK: Confirm button
4. MUTE/P .ADJ: Mute button/Picture adjust
5. MENU: Menu button
6. POWER/MODE: Standby/Operation mode shift button
7. Power indicator
Red: Standby
Green: Power-on
2
6. DVB-T Installation Guide
Follow the installation guide to enjoy your high definition digital TV world. Follow the
help information that at the bottom of the window to select preference menu
language and suitable country (Region) and start channel search.
If no channel is found during the channel searching process, the user may adjust
the antenna position to obtain optimal TV signal.
Press upward/downward key to select item,
press leftward/rightward key to switch selected
items. In Channel Search item, press OK to
auto-search channels, press EXIT to return
main menu.
7. DVB-T MENU Operation Guide
7.1 Program
Four sub-menus (Program Edit, EPG, Sort, LCN)
are included in Program item, press OK key to enter,
press upward/downward key to select item, press
leftward/rightward key to switch selected items, press
EXIT to return main menu.
7.1.1 Program Edit
Before entering Program Edit item, enter factory
password 888888.
Before entering Program Edit interface, press red/
green/yellow/blue key on the remote to Move/Skip/
Lock/Delete/FAV all TV channels. Press EXIT key
to exit.
6
8. TFT-LCD screen
▲
9. CH+/ : Channel Select/Upward button
10. CH-/
▲
: Channel Select/Downward button
11. VOL+/
: Volume up/Rightward button
12. VOL-/
: Volume down/Leftward button
13. Remote-control receive window
14. USB connect Jack
15. Antenna input Jack
16. AV Output
17. AV Input
18. Headphone jack
19. DC Input
20. Speaker
14
20
3
7.1.2 Sort
Program ordering
You can sort the programs according to your flavor. Optional choices:
By LCN, By ONID , By Service Name , By Service ID etc.
7.1.3 LCN
LCN: ON/OFF for logical program list.
7.2 Picture
Set the following items under Picture menu:
1)Aspect ratio: Under this item, it is enable to switch
between Auto/16:9 Wide screen/4:3 Full/4:3
Pan&Scan/4:3 Letter Box.
2)TV Format: Under this item, it is enable to switch
between PAL/NTSC system.
Once setting finished, press EXIT to return main menu.
7.3 Channel Search
Under Channel Search item, the following operations
Are available:
1)Auto Search: Select this item, and press OK to auto
search TV channels.
2)Manual Search: Select this item, press OK to manual
search TV channels.
3)Country: Setup your country according to your location.
4)Antenna Power: Start or exit the active antenna
output function.
7.3.1 Manual Search
Under Frequency Channel item, press digital number
on the remote to input channel number directly, press
OK to manual search TV channels.
7
15
16
17
18
19
