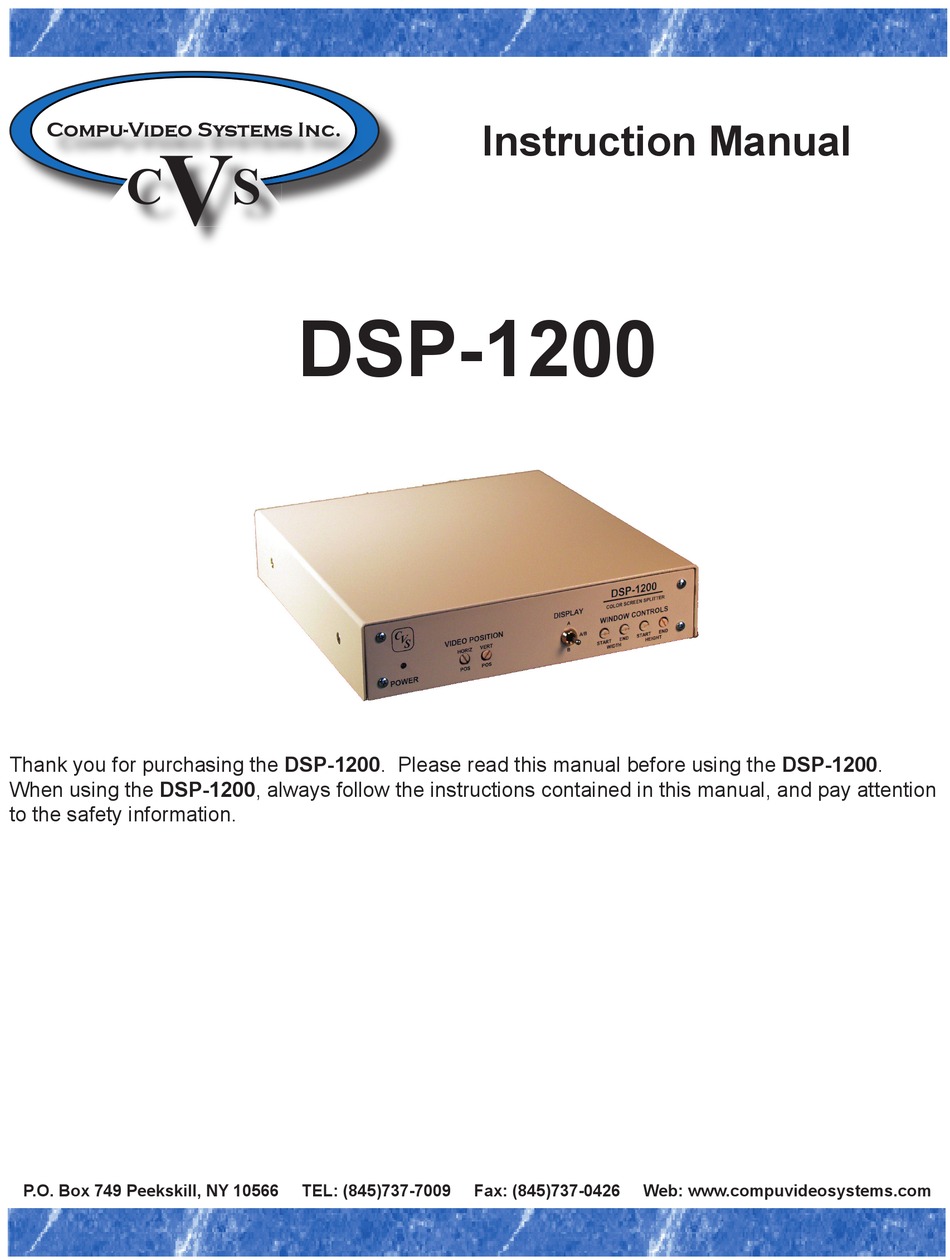

Compu-Video Systems Inc.
V V
V
C
Thank you for purchasing the DSP-1200. Please read this manual before using the DSP-1200.
When using the DSP-1200, always follow the instructions contained in this manual, and pay attention
to the safety information.
P.O. Box 749 Peekskill, NY 10566
S
DSP-1200
TEL: (845)737-7009
Instruction Manual
Fax: (845)737-0426
Web: www.compuvideosystems.com
Advertisement
Table of Contents
Related Manuals for CVS DSP-1200
Summary of Contents for CVS DSP-1200
- Page 1 DSP-1200 Thank you for purchasing the DSP-1200. Please read this manual before using the DSP-1200. When using the DSP-1200, always follow the instructions contained in this manual, and pay attention to the safety information. P.O. Box 749 Peekskill, NY 10566...
- Page 2 WARNING! Do not expose this product to water, rain or moisture. Doing this can result in electric shock or fire. Never take this product apart or try to modify it. Doing so is very dangerous and could result in electric shock. Do not store this product near open flame.
- Page 3 The DSP-1200 is a 2 camera video screen splitter that does not require any genlock feeds for the cameras. By using digital technology CVS is able to capture and synchronize one camera to another so that the pictures can be split. The size, type and position of the split (Fig. 1) are variable as is the position of the second camera in relation to the first (Fig.
- Page 4 Camera Requirements: The DSP-1200 will work with any line locked or internally locked color or B&W cameras for input 1 and 2. Either camera can be line locked or internally locked, however the internally locked camera will give you a better picture. Both cameras must conform with RS-170A sync timing standards.
- Page 5 3) Set jumper #1 to the rear as shown in the following diagram. 4) Re-install the cover 5) Connect the power Mirror Mode Normal Mode (Front Of Chassis) (Fig. 4) DSP-1200 COLOR SCREEN SPLITTER VIDEO POSITION WINDOW CONTROLS HORIZ VERT START END START END...
- Page 6 ·Set the front panel switch to the center split position. ·It is recommended that you center the controls and vary each one while observing the picture. This will give you a feel for the way each control effects the picture. ·Begin by adjusting the start of the split with the Height Start Control.
-
Page 7: Limited Warranty
Inc. to the user is free of charge. How To Get Service Please contact CVS by phone for return authorization number and then return the defective unit, transportation prepaid and a dated proof of purchase to: Compu-Video Systems Inc. - Page 8 Have A Video Picture Problem? Give Us A Call At (845) 737-7009 For Free Tech Support. We May Have The Answer You Are Looking For. Compu-Video Systems Inc.
