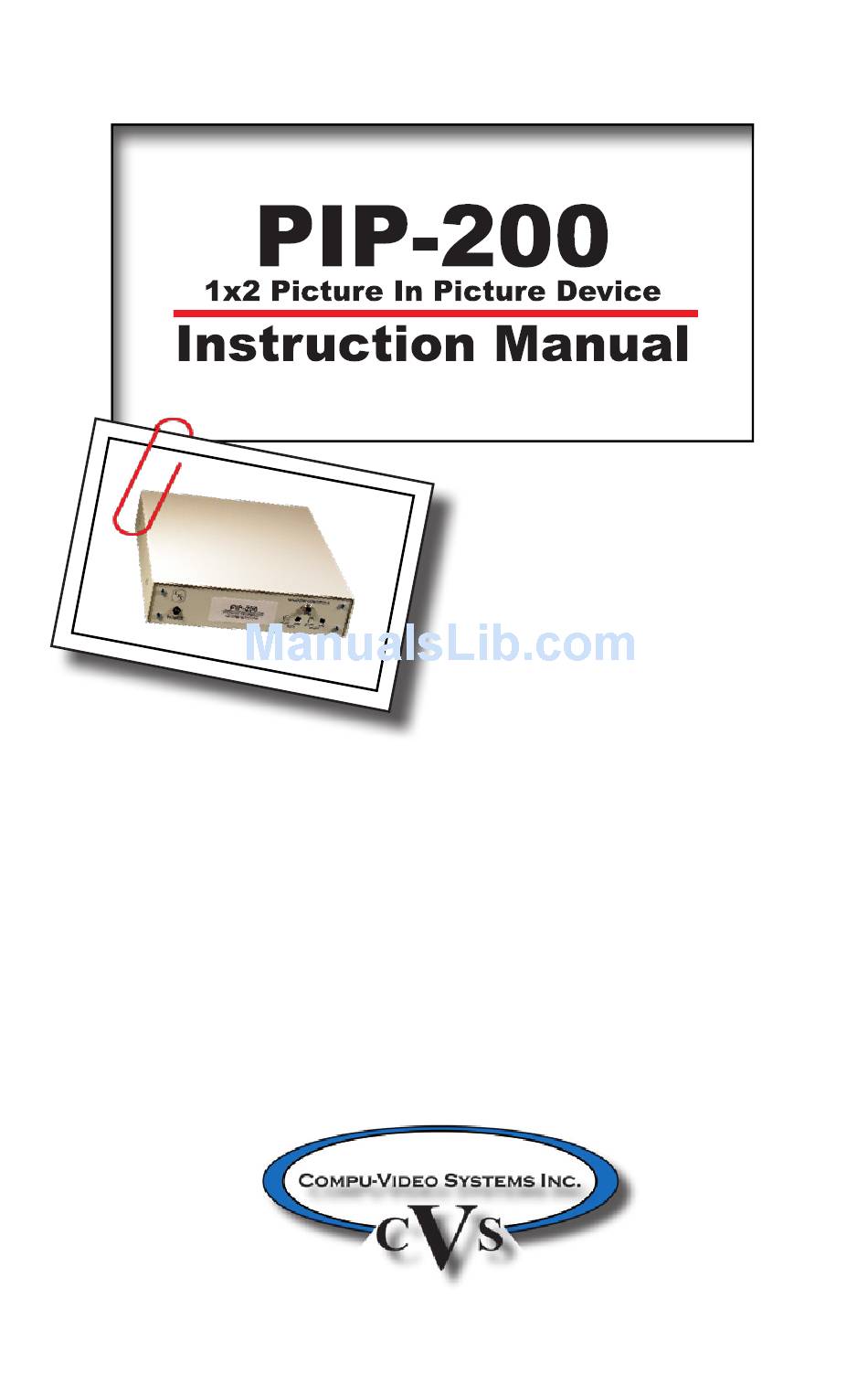

- Page 1 Thank you for purchasing one of our products. Please read this manual before using this product. When using this product, always follow the instructions contained in this manual, and pay attention to the safety information.
- Page 2 Do not expose this product to water, rain or moisture. Doing this can result in electric shock or fire. Never take this product apart or try to modify it. Doing so is very dangerous and could result in electric shock. Do not store this product near open flame.
- Page 3 The PIP-200 is a 2 camera video picture in picture screen splitter that does not require any genlock feeds for the cameras. By using digital technology CVS is able to capture and synchronize one camera to another so that the pictures can be compressed and split.
- Page 4 ·Install the cameras to cover the areas to be viewed. ·Locate yourself at the PIP-200. With the front panel switch, verify that each camera shows individually on the screen. ·Decide on the size and location of the window that you will use. Example: 1/4 size, 1/8 size location and size of the window.
- Page 5 P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
- Page 6 P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
-
Page 7: Limited Warranty
Compu-Video Systems Inc. to the user is free of charge. How To Get Service Please contact CVS by phone for return authorization number and then return the defective unit, transportation prepaid and a dated proof of purchase to: Compu-Video Systems Inc.
