AUTO ARC pmn Owner's Manual

Welding generators & torch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Auto Arc
Quick Cut 4500
And Ice-27C Torch
For Warranty Claims And Technical Support, Contact:
Milweld Inc., National Distributor
P.O. Box 338, Hortonville, WI 54944-0338
Tel 920-779-0916 Fax 920-779-0924
OM-228 305D
2007−06
Processes
Air Plasma Cutting
and Gouging
Description
Air Plasma Cutter
R
File: Plasma Cutters

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pmn and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AUTO ARC pmn

Summary of Contents for AUTO ARC pmn

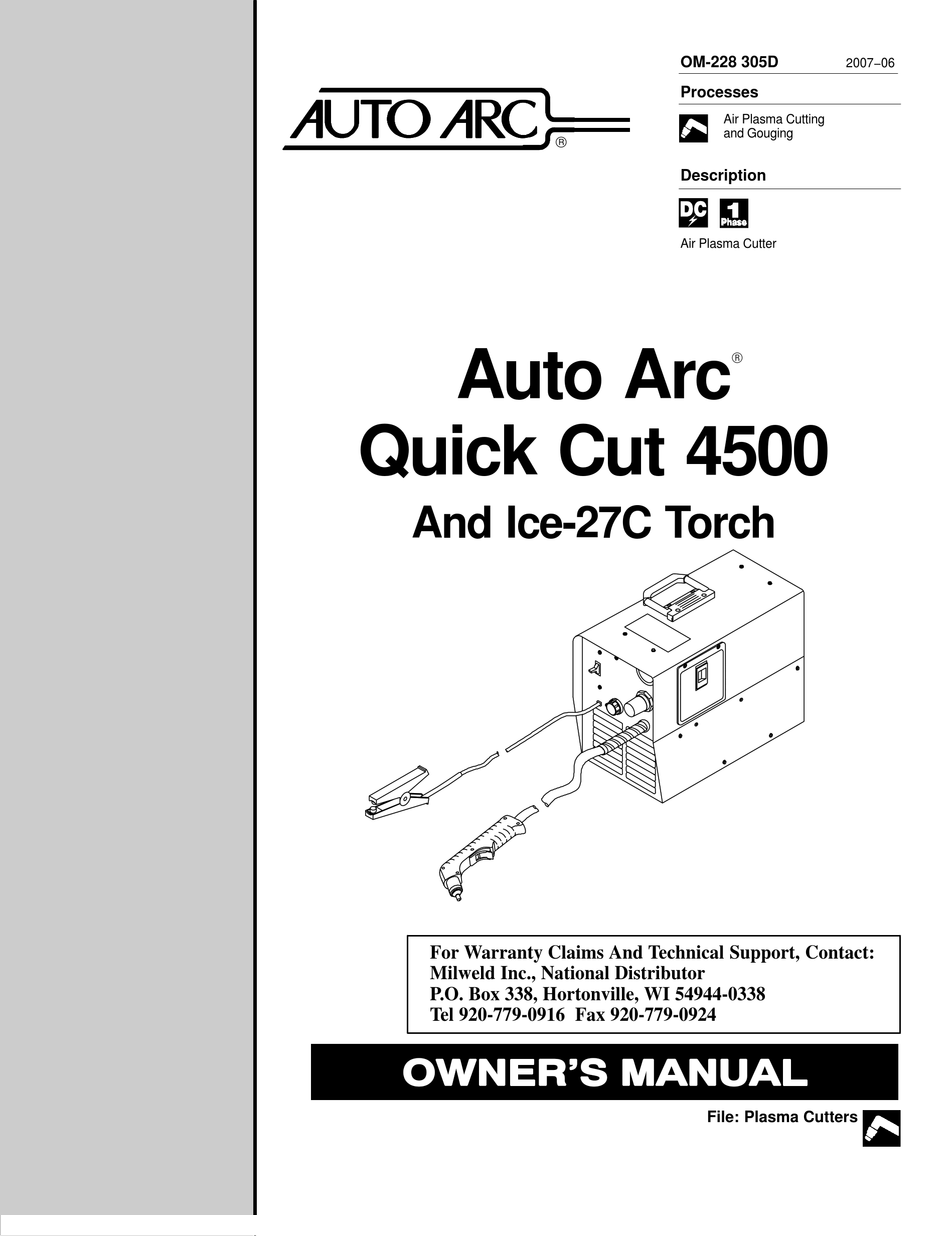

  • Page 1 Auto Arc Quick Cut 4500 And Ice-27C Torch For Warranty Claims And Technical Support, Contact: Milweld Inc., National Distributor P.O. Box 338, Hortonville, WI 54944-0338 Tel 920-779-0916 Fax 920-779-0924 OM-228 305D 2007−06 Processes Air Plasma Cutting and Gouging Description Air Plasma Cutter File: Plasma Cutters...
